Excerpt:
Odipie 25.6V 100Ah LiFePO4 battery offers Bluetooth smart BMS, 2.56 kWh scalable power, 5000+ deep cycles and 70 % weight saving—perfect for solar, telecom, RV and off-grid wholesalers seeking reliable, certified lithium storage.
Features
Grade-A LiFePO4 Core: Delivers 25.6V 100Ah (2.56kWh) with ≤3% self-discharge and 5000+ cycles at 80% DOD for decade-long daily service.
Scalable Architecture: 4P2S plug-and-play harness boosts system to 51.2V 400Ah (20.48 kWh) using identical stock—no mixing SKUs.
Wide-range Chemistry: Charge 0°C – 55°C, discharge –20°C – 60°C; low-temp cut-off protects in cold-chain logistics.
Target Applications
- RV & camper van lithium retrofits.
- Low-speed fishing boat trolling banks.
Note: This classic is intended for energy storage and deep cycle use only; it is not suitable for high-amperage cranking applications like starting engines or golf carts.
Parameters

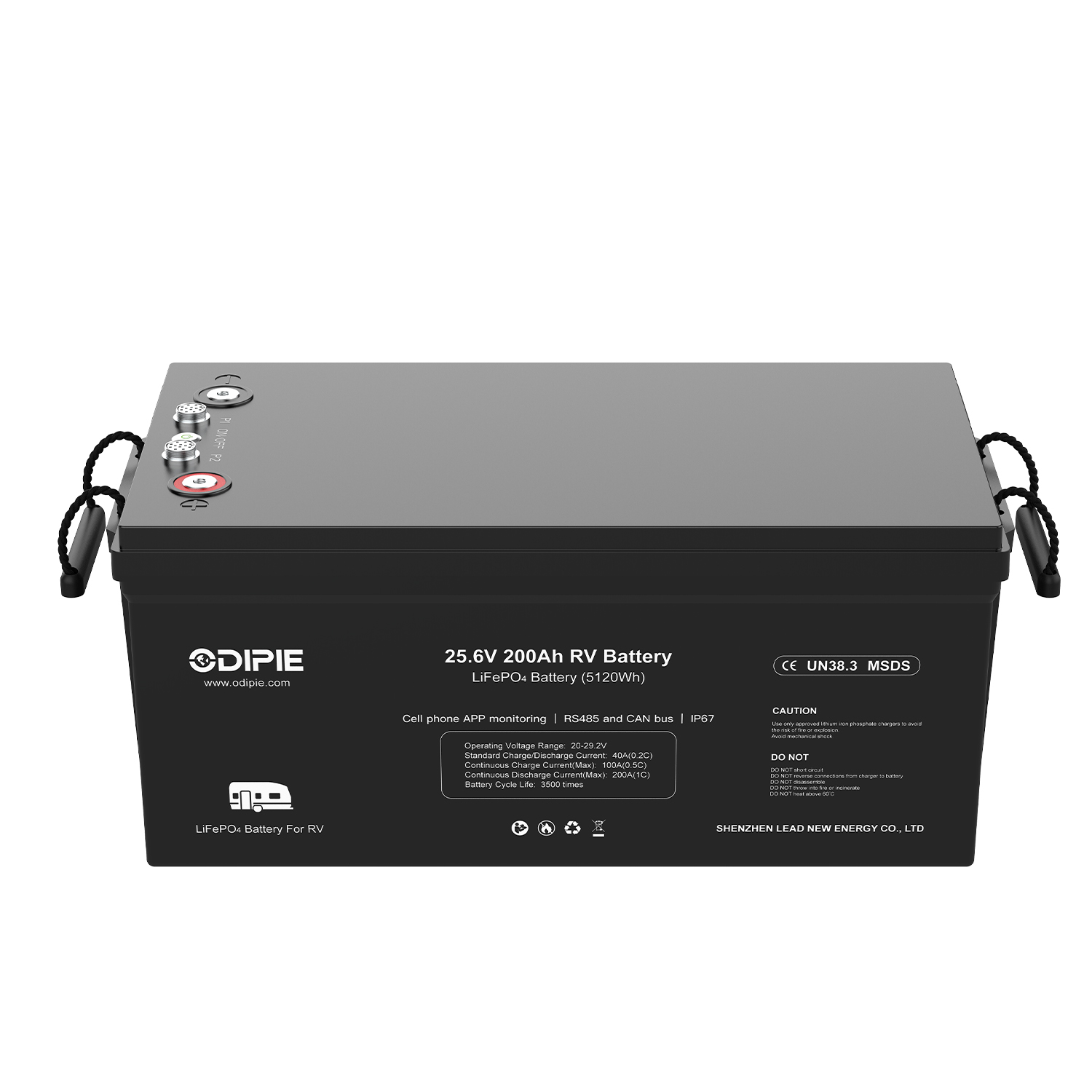

| Model | 25.6V 200Ah RV LFP |
|---|---|
| Nominal voltage | 25.6V |
| Nominal capacity | 200Ah |
| Nominal energy | 5.12kWh |
| Operation voltage range | 20V~29.2V |
| Charge voltage | 29.2V |
| Standard charging current | 40A |
| Max. continuous charging current | 200A |
| Standard discharging current | 40A |
| Max. continuous discharging current | 200A |
| Communication | RS485 /CANbus (Parallel Communication) / Dry contact |
| Waterproof Level | IP67 |
| Cycle life | 5000 cycles (0.2C charge and discharge) |
| Weight | ≈22kg |

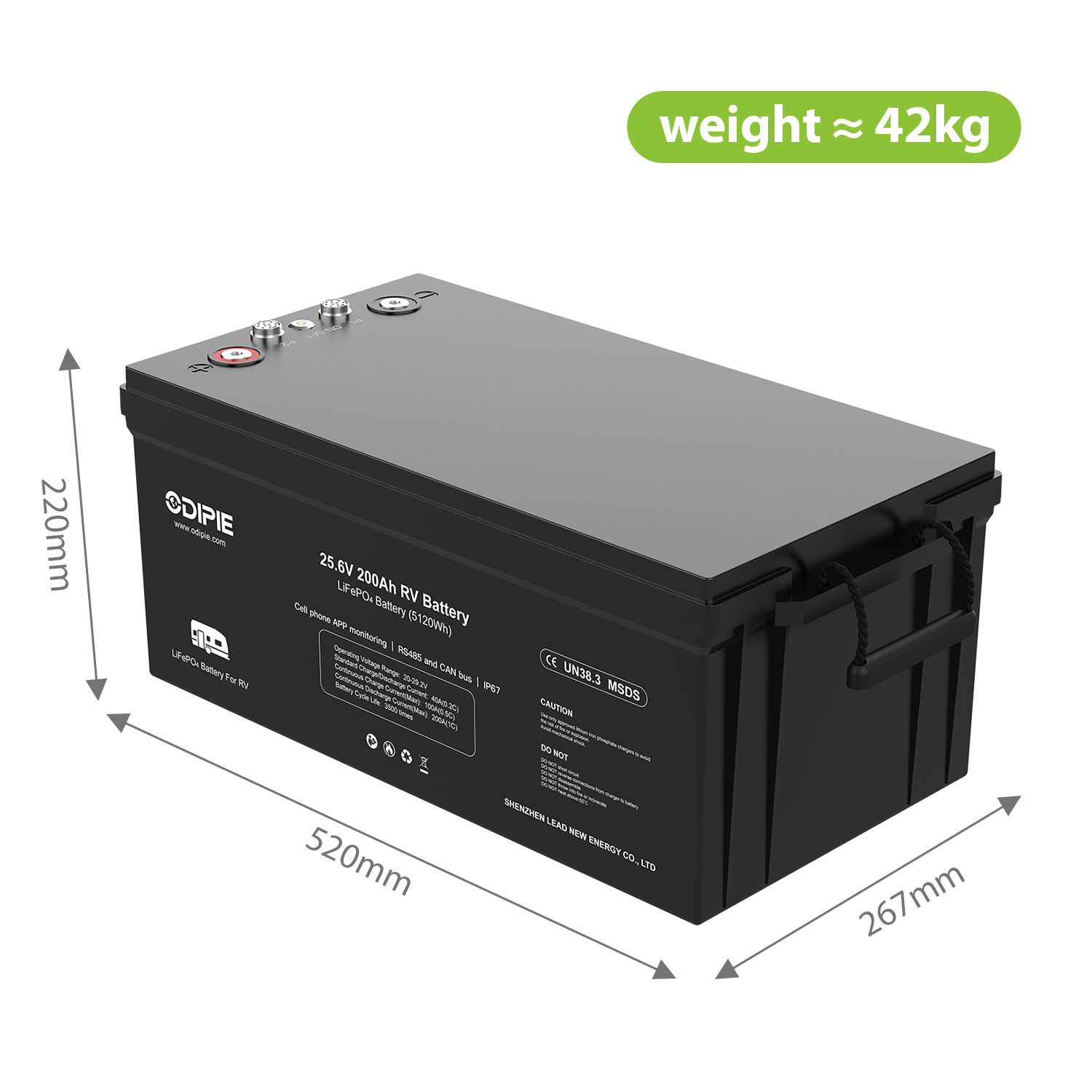

| Dimension(W*H*D) | 520x267x220mm |
| Charging Temperature | 0 ~ 55℃ |
| Discharge Temperature | -20~60℃ |
