Excerpt:
Odipie 25.6 V 200 Ah LiFePO4 battery delivers 5.12 kWh, 5000+ deep cycles and 200 A continuous discharge in 70 % lighter, 45 % smaller footprint than AGM. Built-in 200 A BMS, IP67 housing, -20–60 °C operating range. Ideal for solar off-grid, e-mobility—storage & deep-cycle only, no engine cranking. Quick MPPT or inverter charging.
Features
2× Lead-Acid Power: 25.6 V, 200 Ah LiFePO4 pack delivers 5.12 kWh on 1 C continuous 200 A discharge—double usable energy in the same footprint.
5 000+ Cycles: Grade-A LFP cells rated @ 80 % DOD give >20× cycle life vs. AGM, cutting replacement cost for distributors.
45 % Space & 70 % Weight Saving: One Odipie block replaces four 12 V 100 Ah in 2P2S, freeing van/RV/shelf space and lowering freight.
Built-in 200 A BMS: Protects against over-charge, -discharge, -current, short, high temp; cell-balancing keeps every shipment within 5 mV.
Wide Temp Window: Charge 5–50 °C, discharge –20–60 °C; auto low-temp cutoff & optional heating film for winter projects.
IP67 Housing.
<3 % Monthly Self-Discharge: Stock up to 12 months without top-up.
Target Applications
- Solar off-grid & hybrid kits—store daylight, run 5 kW inverters overnight.
- Low-speed transport: e-forklifts, golf utility, marine house banks.
Note: This classic is intended for energy storage and deep cycle use only; it is not suitable for high-amperage cranking applications like starting engines or golf carts.
Parameters

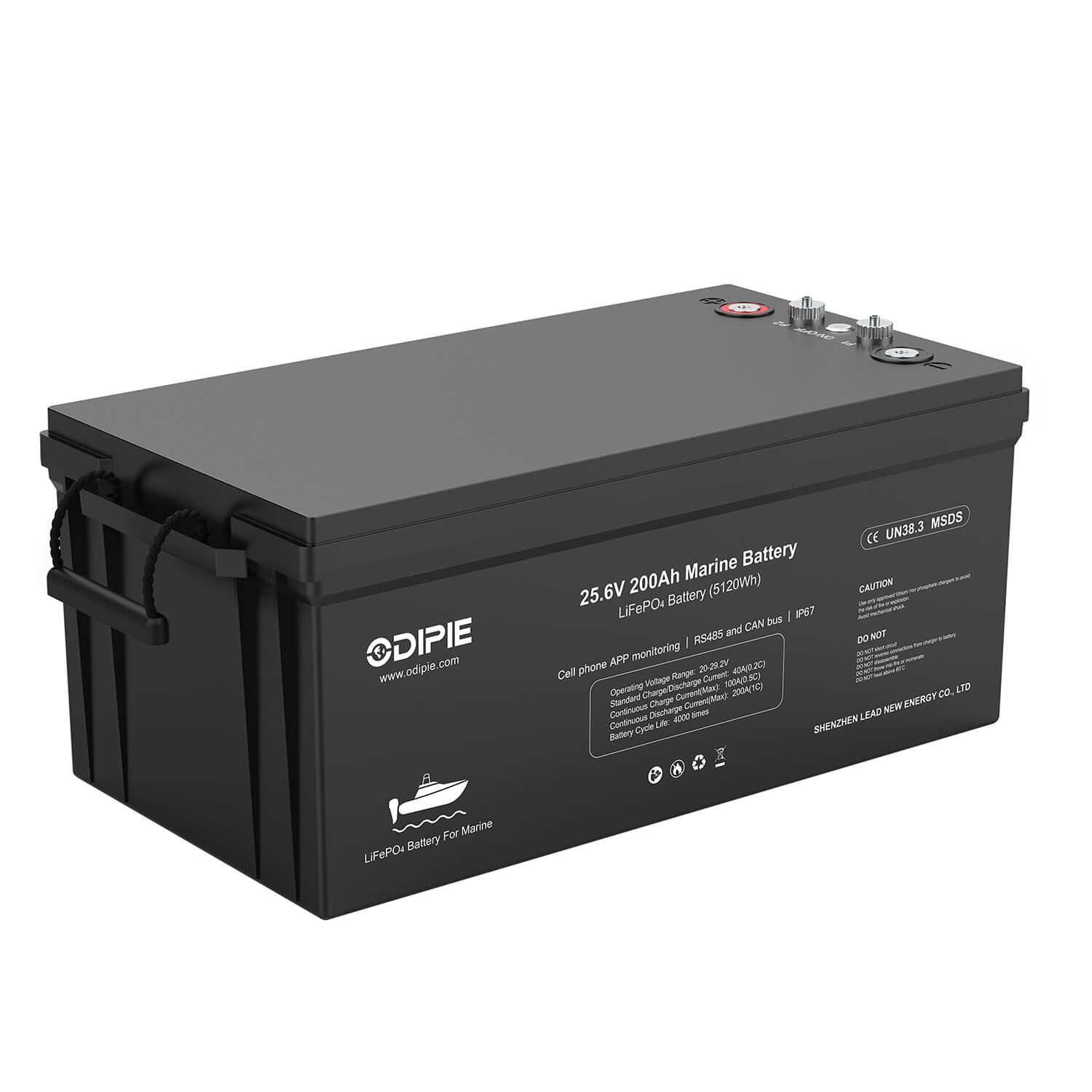

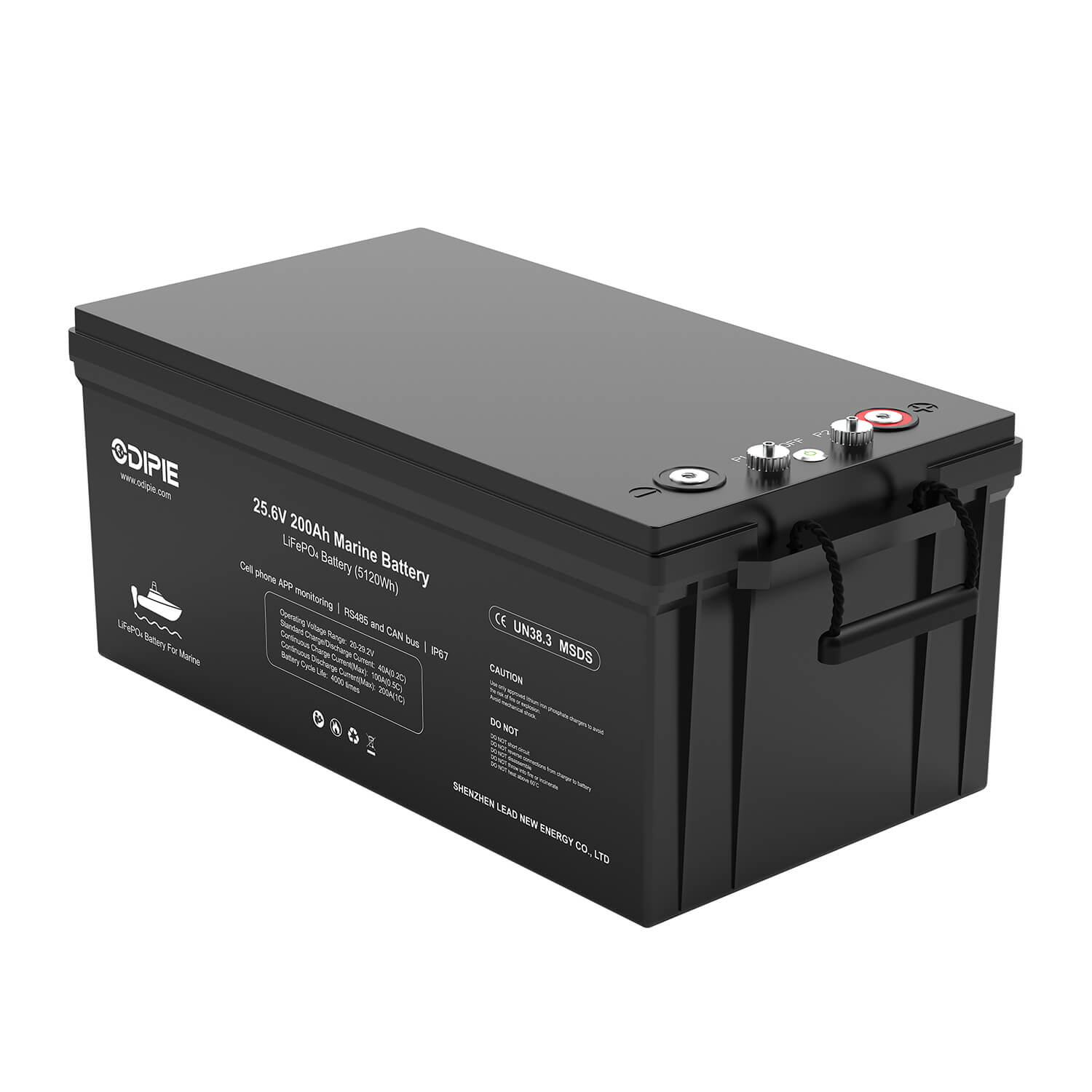

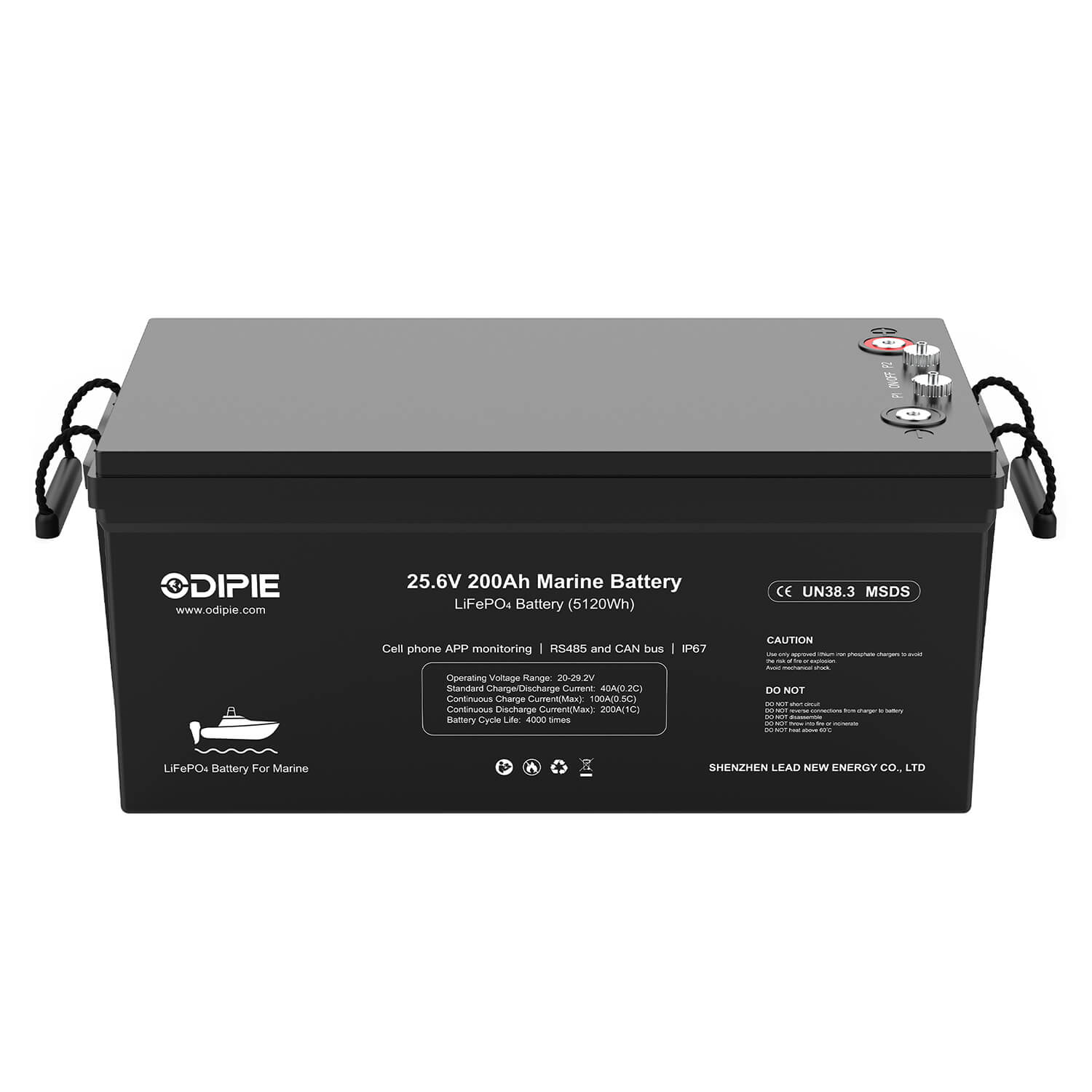

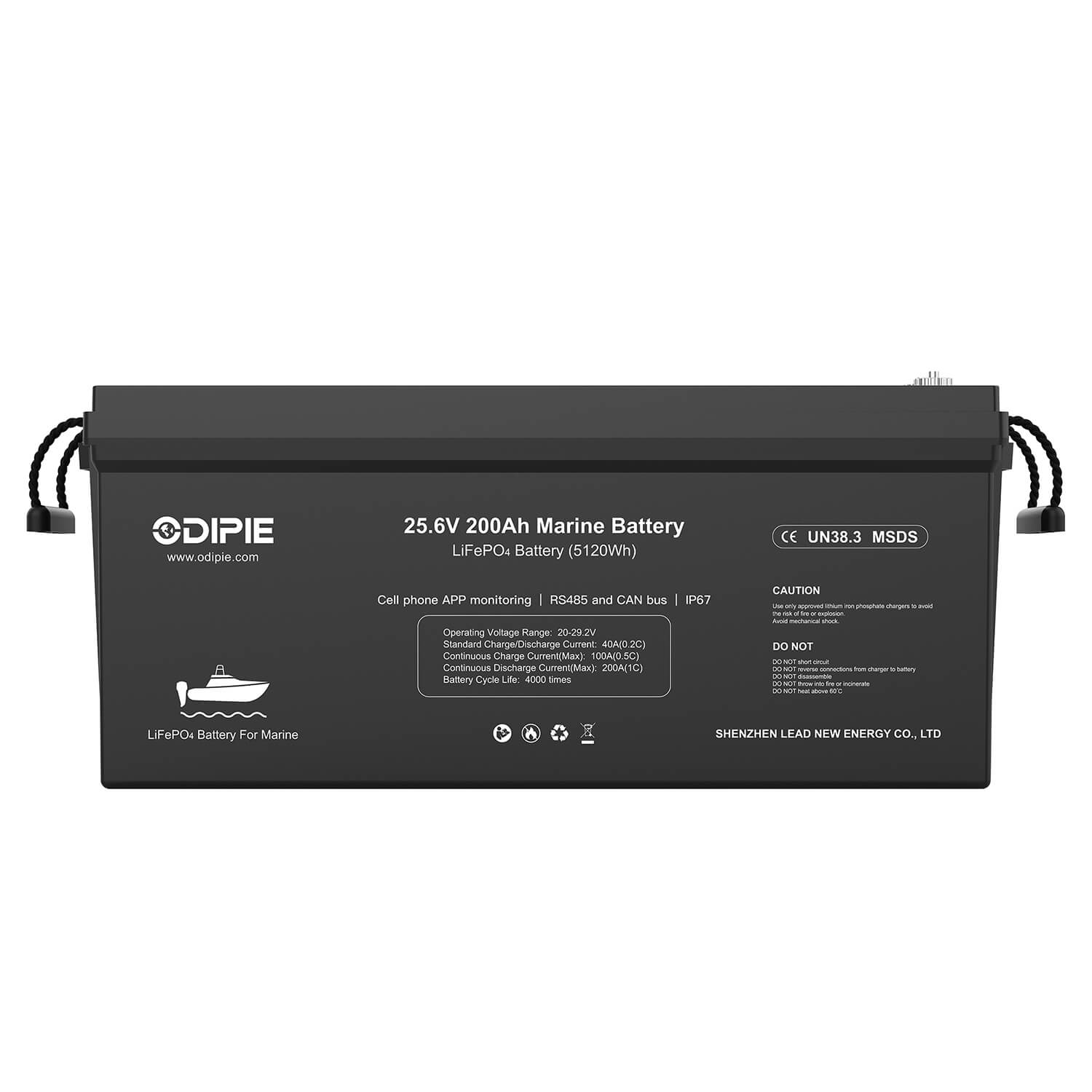

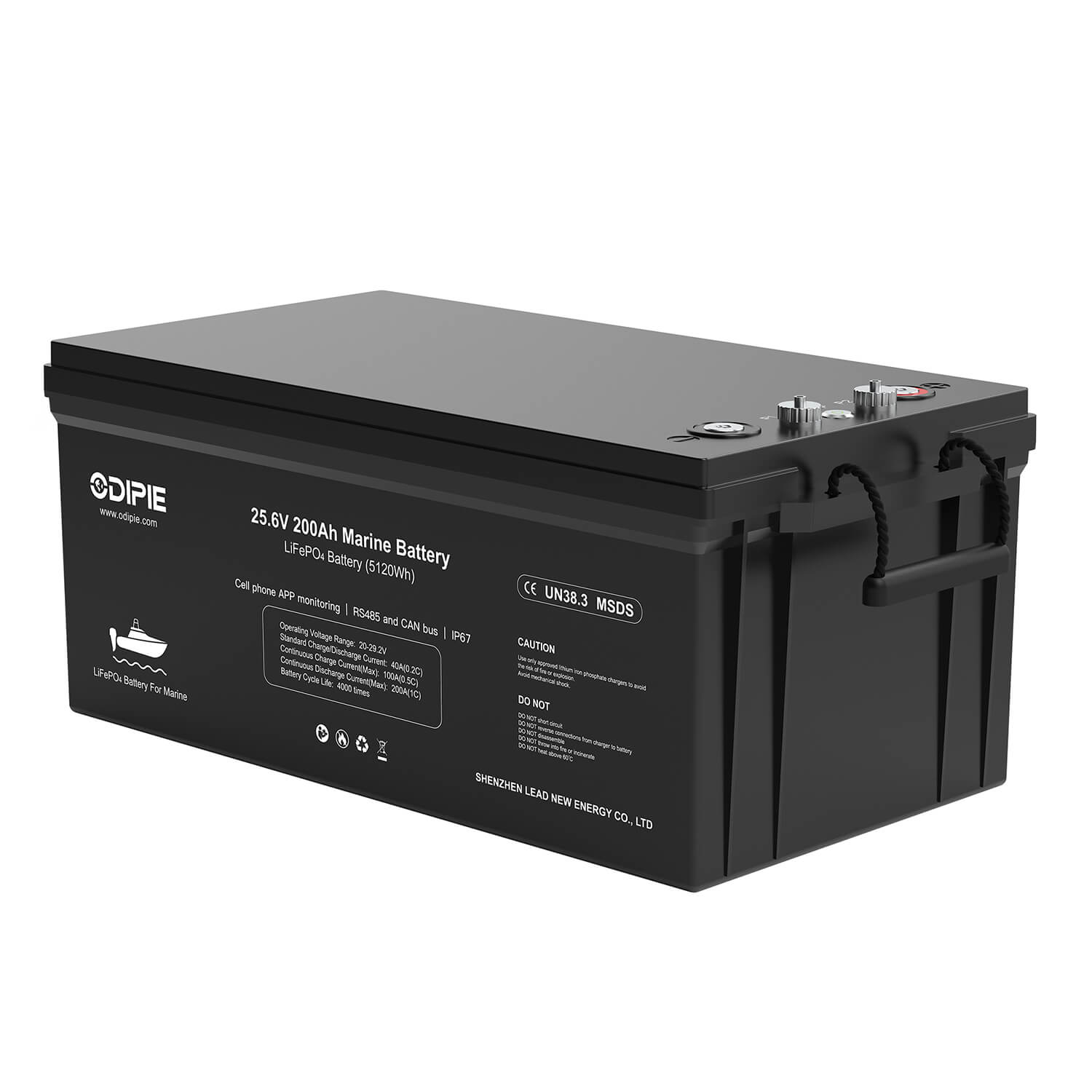

| Model | 25.6V 200Ah Marine LFP |
|---|---|
| Nominal voltage | 25.6V |
| Nominal capacity | 200Ah |
| Nominal energy | 5.12kWh |
| Operation voltage range | 20V~29.2V |
| Charge voltage | 29.2V |
| Standard charging current | 40A |
| Max. continuous charging current | 200A |
| Standard discharging current | 40A |
| Max. continuous discharging current | 200A |
| Communication | RRS485 /CANbus (Parallel Communication) / Dry contact |
| IP ratings | IP67 |
| Cycle life | ≥5000 cycles |
| Weight | ≈42kg |
| Dimension(W*H*D) | 520*267*220mm |
| Operation temperature range | -20 ~ 60 ℃ |
Empowering Your Business
cover 12 V→48 V marketsWhite-label casing & laser logo ready for channel partners. Odipie provides drop-ship packs, and online data sheets—helping dealers close PV installers, RV retrofitters, and telecom EPCs faster.
