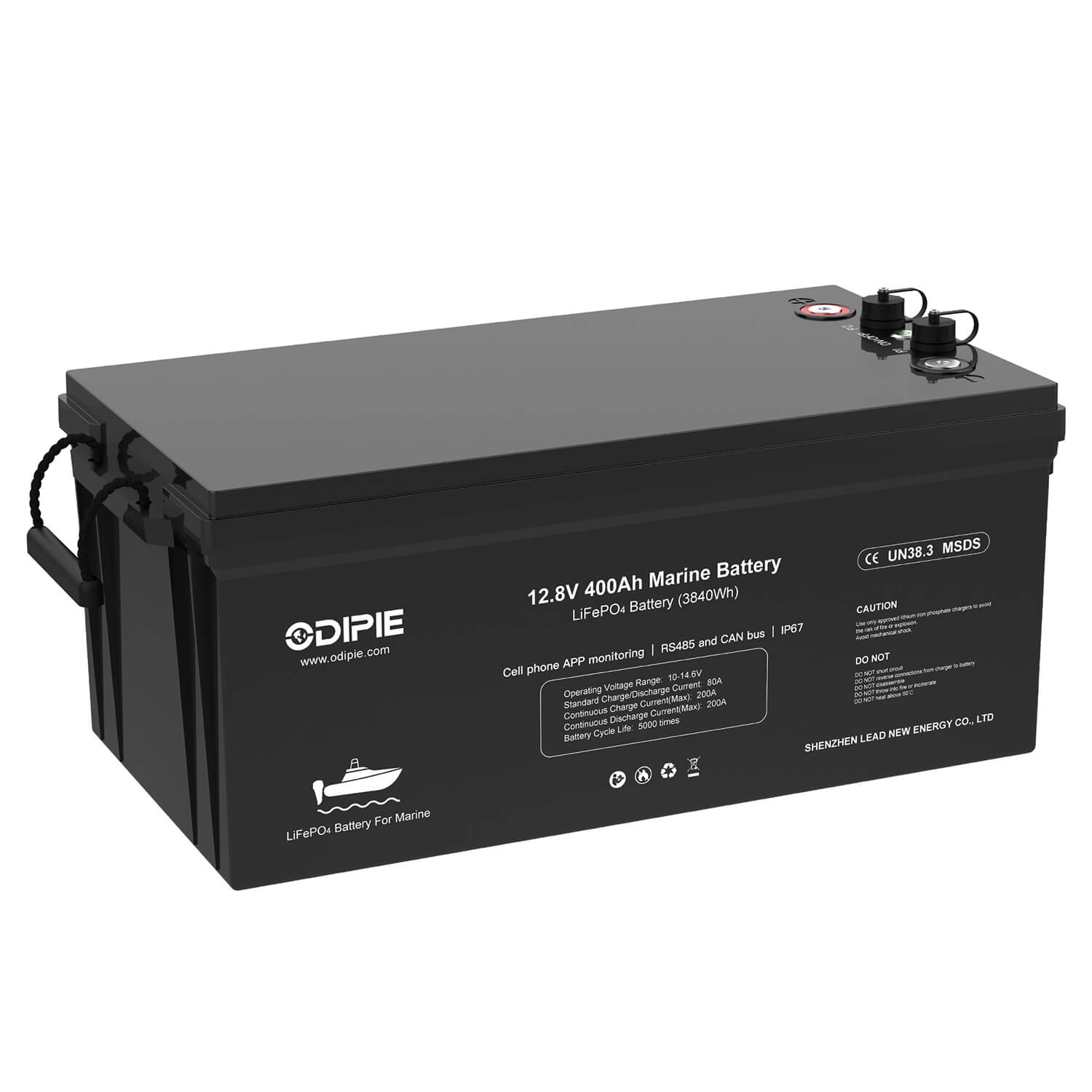

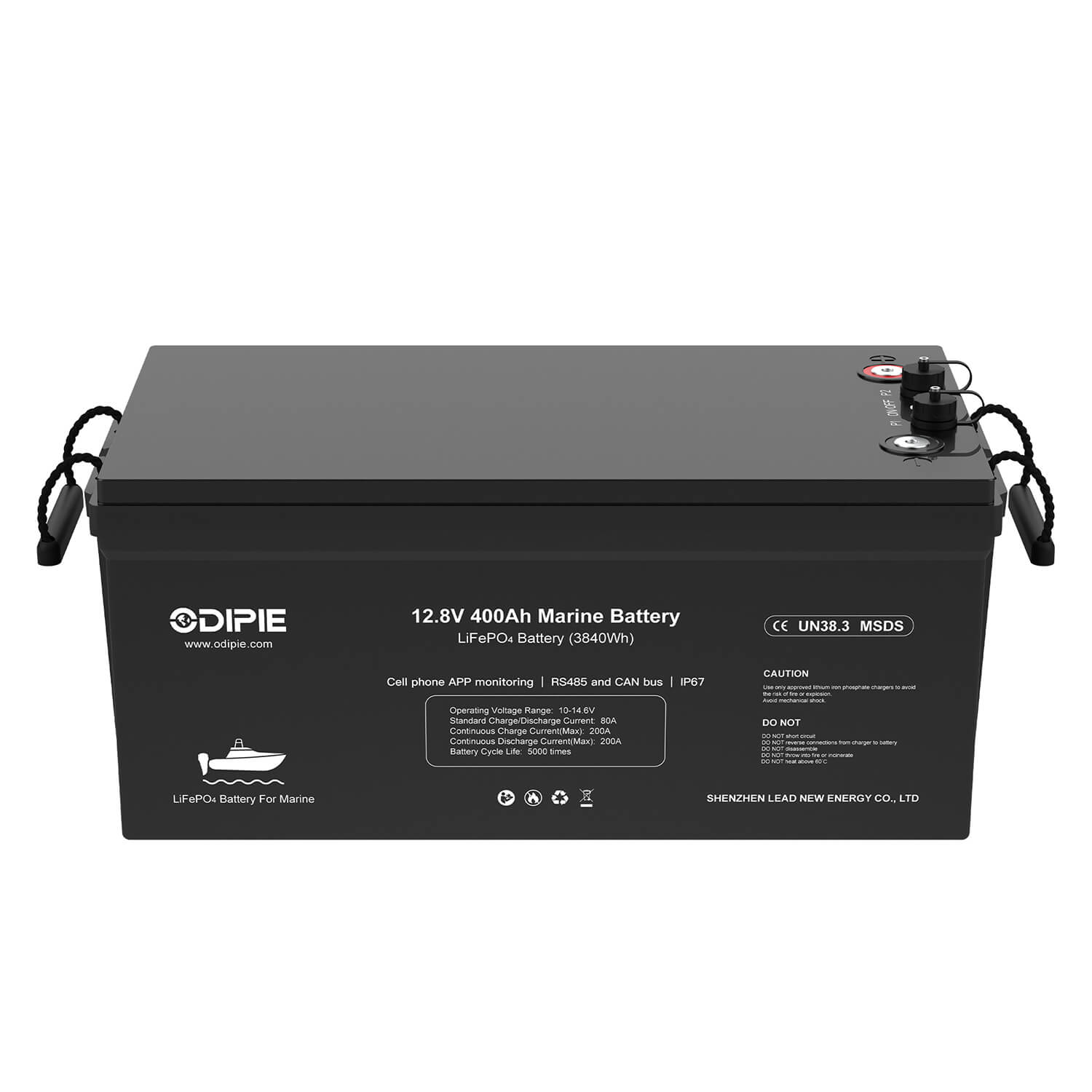

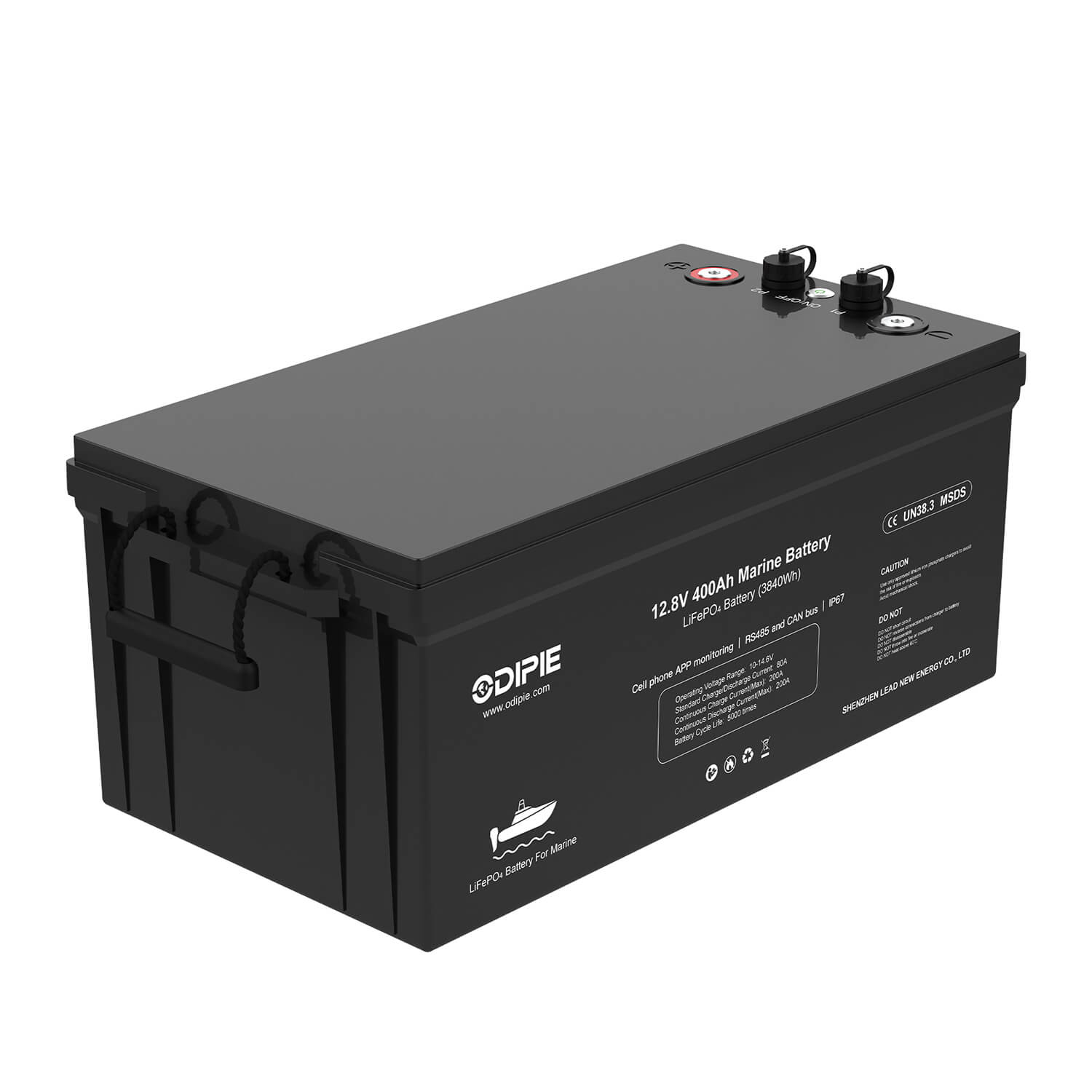

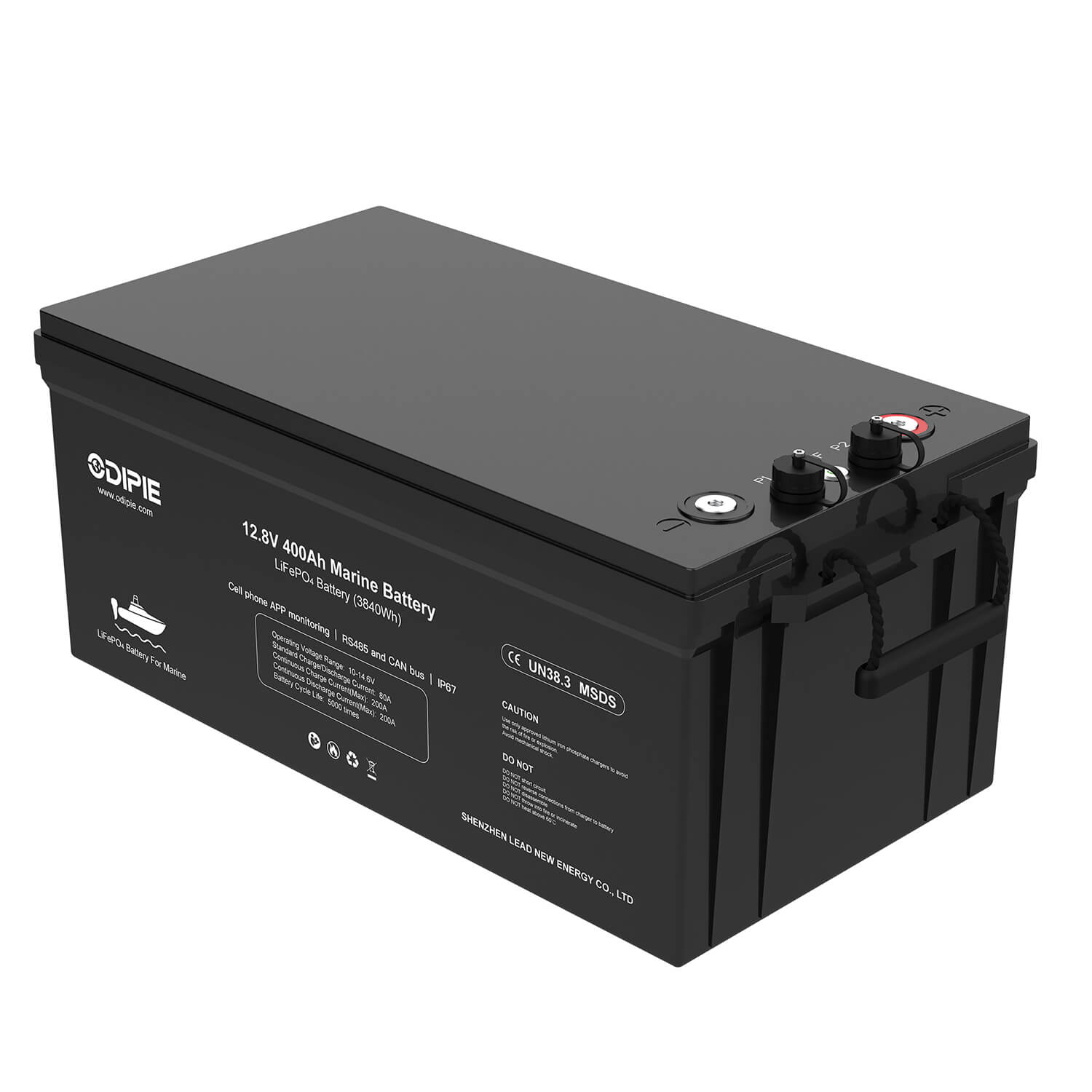

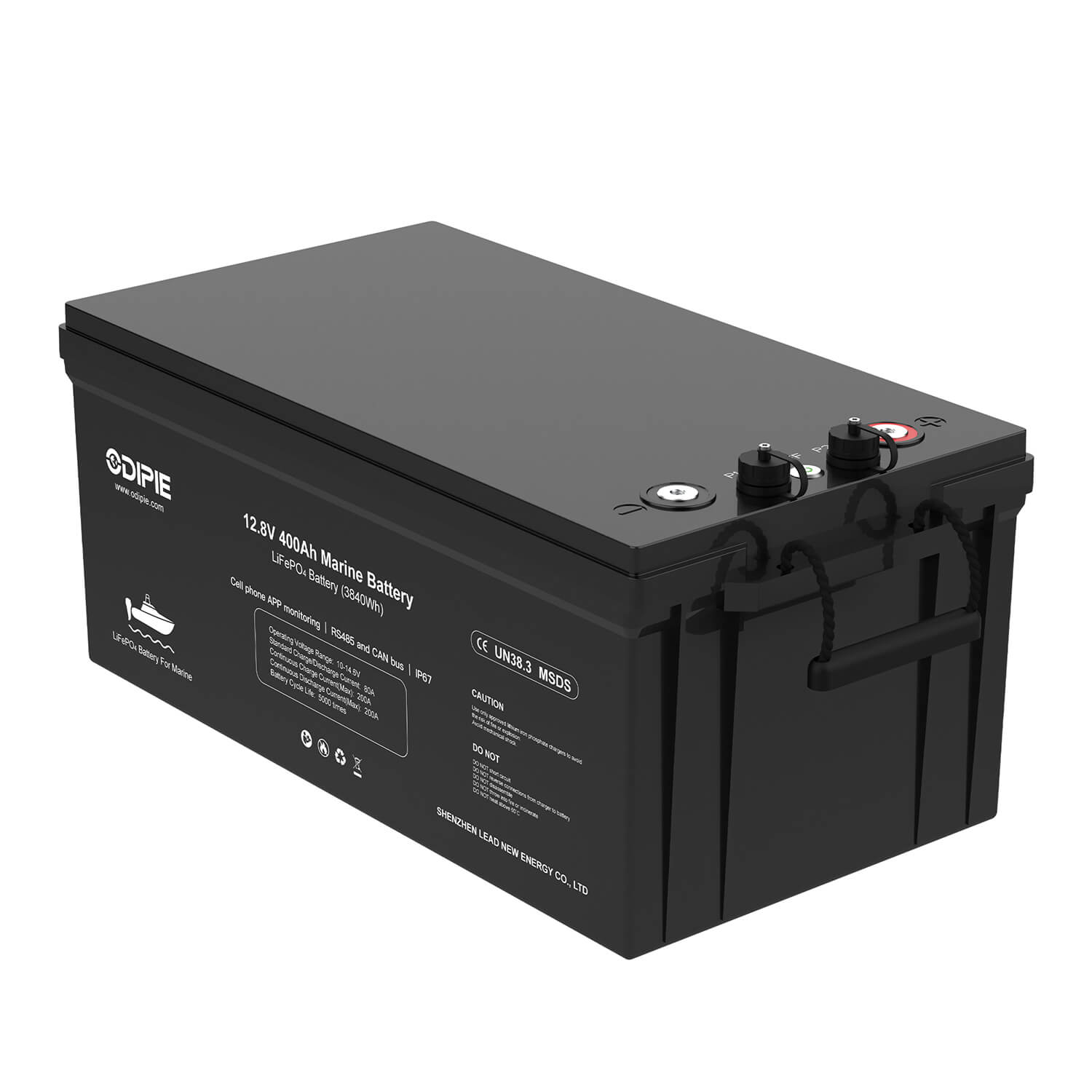

Odipie 12V 400Ah LiFePO4 battery delivers 5.12 kWh deep-cycle power, 250 A BMS, 5,000 cycles and 81.92 kWh scalability—up to 40 % lighter than lead-acid. Perfect for solar, RV, marine, telecom and off-grid seeking low-maintenance, high-density energy storage.

Features

5.12 kWh Usable Energy: One 12.8 V 400 Ah LiFePO4 block equals four 100 Ah packs in parallel, cutting wiring, cost and rack space.

250 A BMS & 500 A 5-s Pulse: Over-charge, -discharge, -current, short-circuit & high-temp (75 °C) cut-off keep cells healthy for 5,000cycles.
-1/3 the weight per kWh, easing freight and handling for bulk orders.

Grade-A EV Cells: zero memory effect, maintenance-free.

Wide Temp Window: discharge –20–60 °C, ensuring reliable operation from desert solar farms to alpine cabins.

Target Applications

  1. Solar / commercial storage
  2. RV, camper, caravan, marine & off-grid cabins
  3. Portable power carts

Note: This classic is intended for energy storage and deep cycle use only; it is not suitable for high-amperage cranking applications like starting engines or golf carts.

Charging Methods

  • LiFePO4 Smart Charger: 14.6 V CC/CV profile, 80 A ready for 5-hour full charge.

Parameters

Model12V 400Ah Marine LFP
Nominal voltage12.8V
Nominal capacity400Ah
Nominal energy5.12kWh
Operation voltage range10V~14.6V
Charge voltage14.6V
Standard charging current80A
Max. continuous charging current200A
Standard discharging current80A
Max. continuous discharging current200A / 300A (Optional)
CommunicationRS485 / CAN bus (Parallel Communication)
IP ratingsIP67
Cycle life5000 cycles (0.2C charge and discharge)
Weight≈42kg
Dimension(W*H*D)520*267*220mm
Operation temperature range-20 ~ 60 ℃

Empowering Your Business

Empowering Your Business

  • Freight Savings: 92 lbs per pack vs 260+ lbs lead-acid—more kWh per pallet, lower landed cost.
  • Fast Turn Cycle: 5,000-cycle rating = 10-year field life, cutting warranty claims and support tickets.
