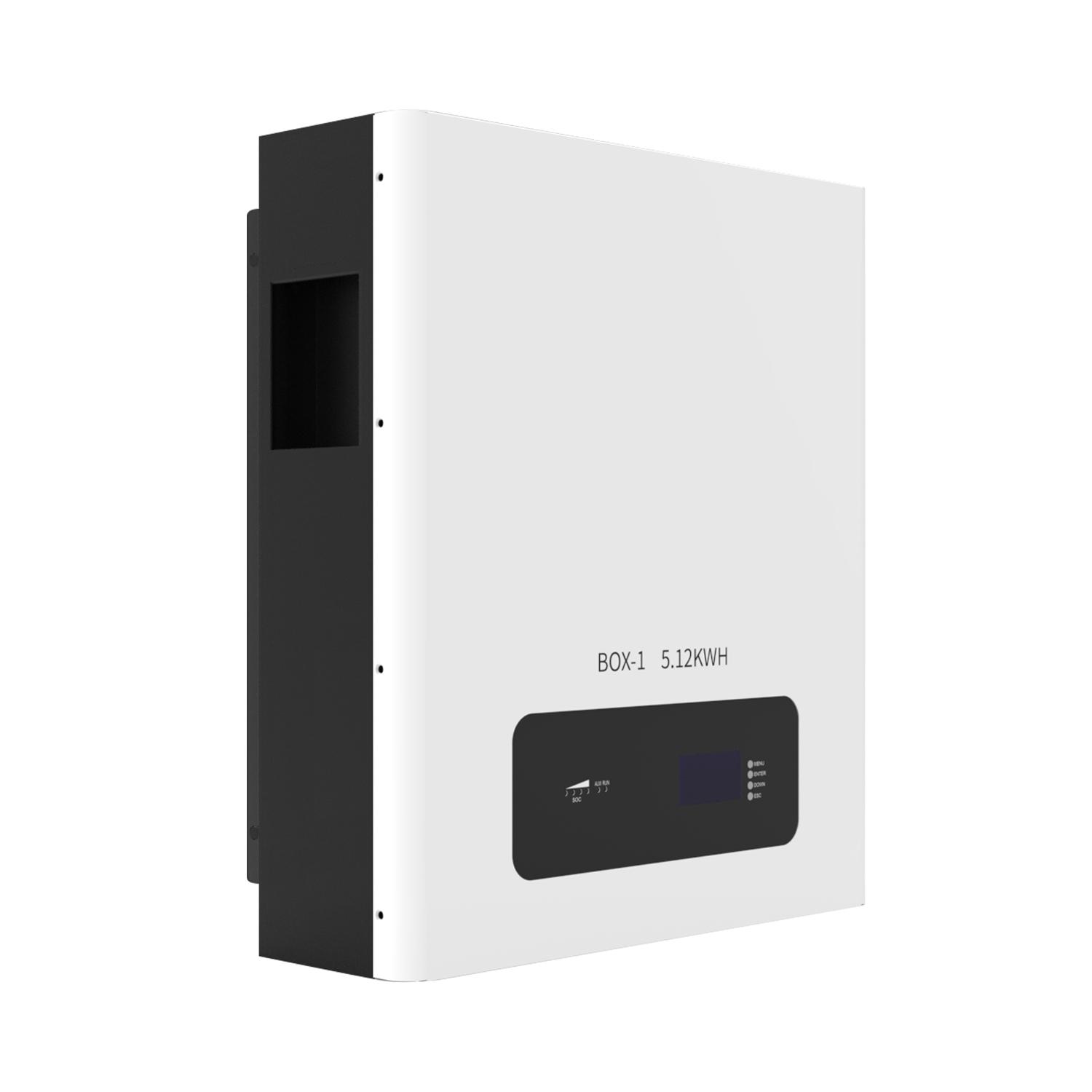

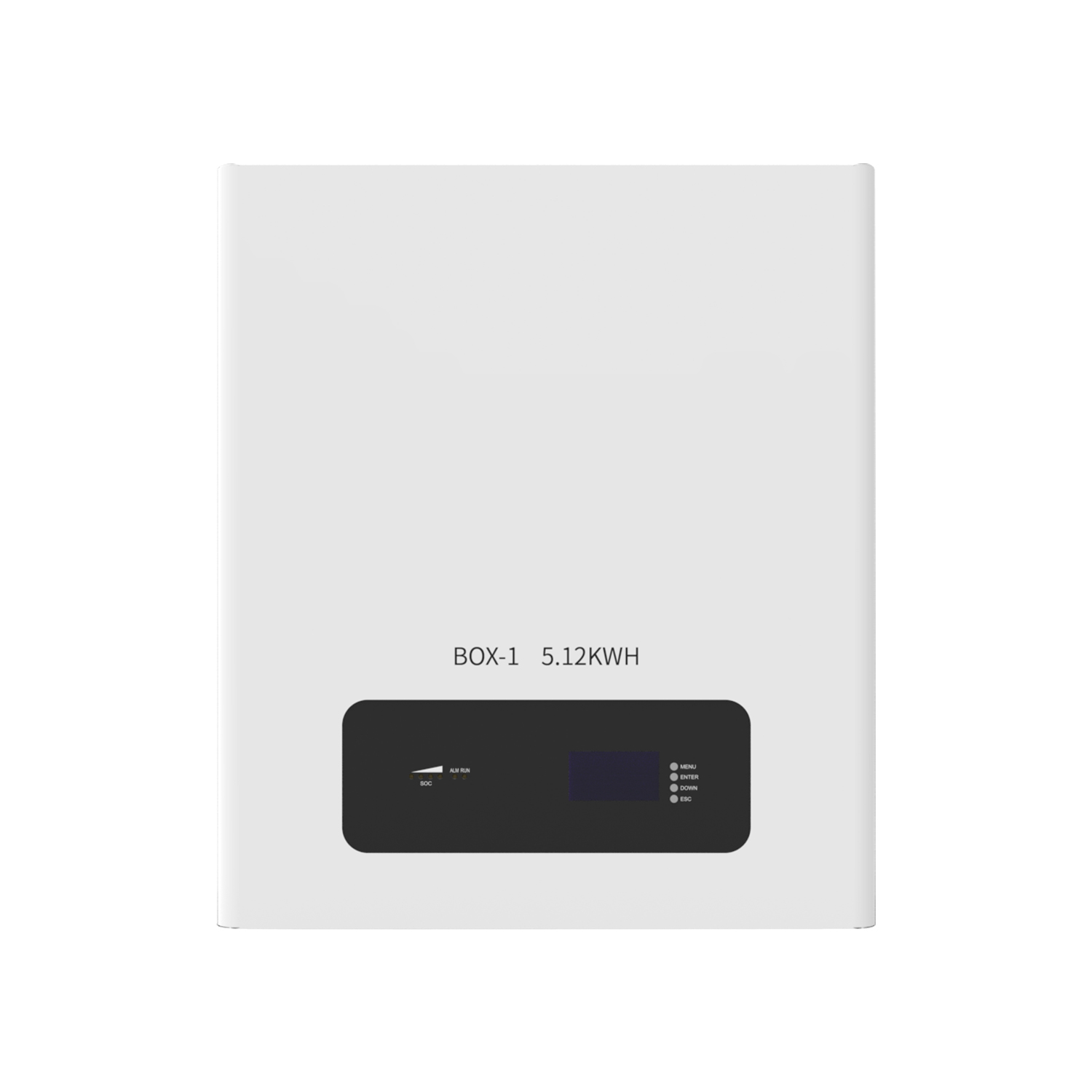

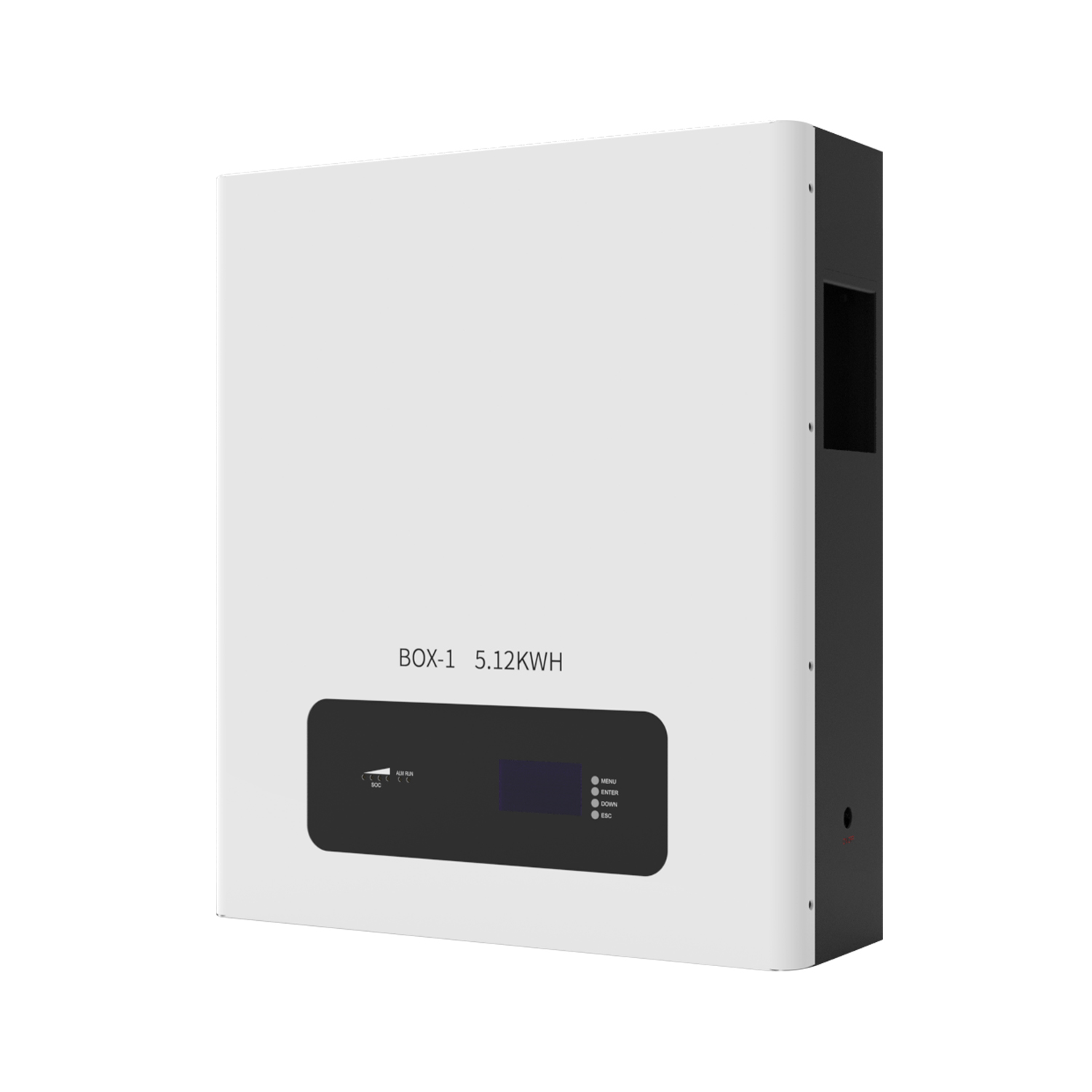

Odipie 51.2 V 100 Ah wall-mounted LiFePO4 battery delivers 5 kWh, 100 A continuous / 200 A surge, 5 000+ cycles @ 80 % DOD in IP65 slim 42 kg chassis. Built-in 200 A BMS, -20–60 °C range, <2 % self-discharge, 1 C fast charge—ideal for residential PV, telecom UPS, RV & marine off-grid.
Features
- 5 kWh Power Block: 51.2 V 100 Ah LiFePO4 delivers 100 A continuous / 200 A 30 s surge—drop-in upgrade for 48 V lead-acid banks.
- 5000+ Cycles @ 80 % DOD: Grade-A LFP cells retain ≥80 % capacity after 25 years’ daily use, cutting replacement inventory for distributors.

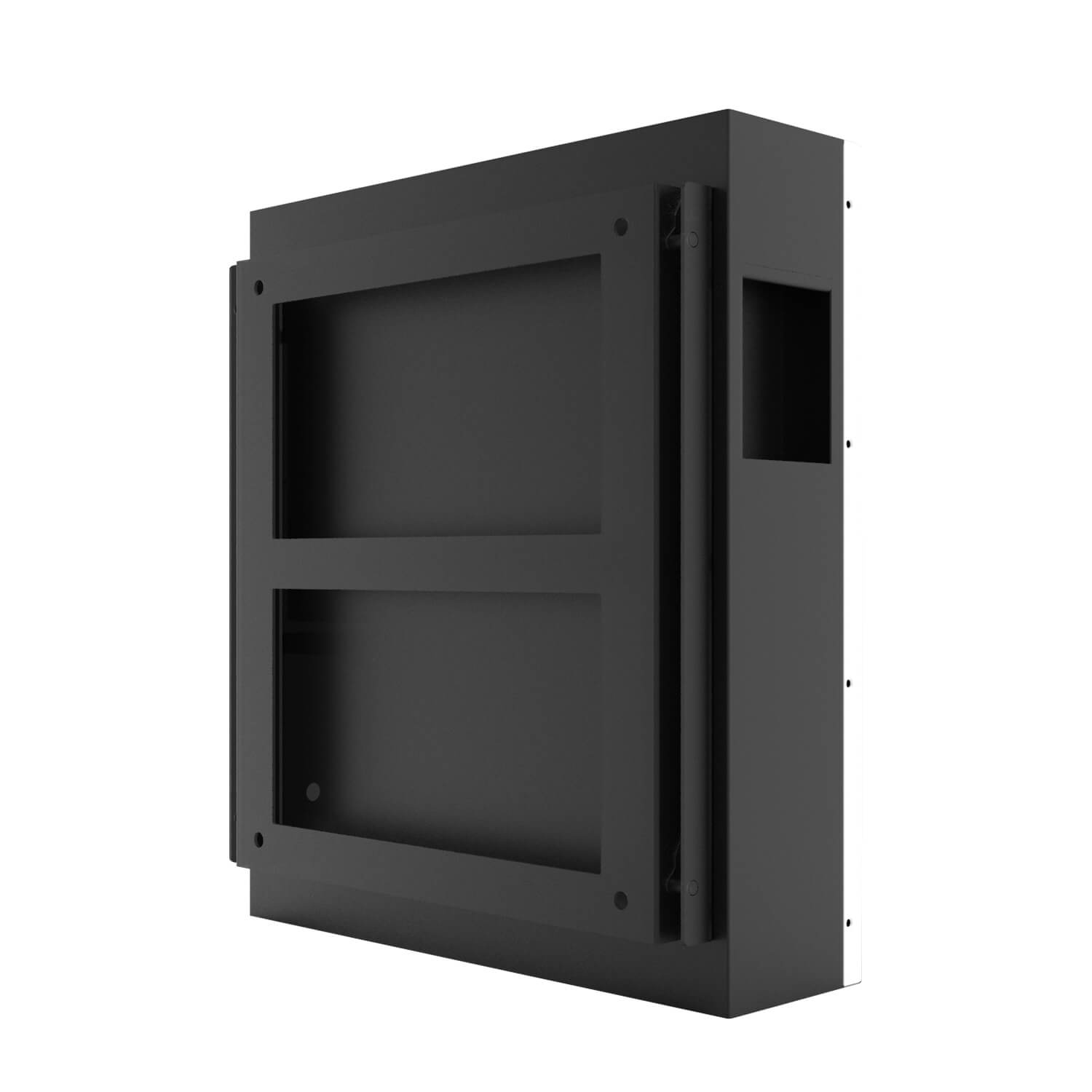

- Wall-Mounted IP65 Cabinet: 42 kg slim alloy chassis hides rear wiring.
- Built-in 200 A BMS: Balances cells to ±3 mV; protects against over-charge, -discharge, -current, short, high/low temp.
- -20–60 °C Working Range: Auto low-temp heater option keeps discharge ≥90 % at -20 °C for Nordic & alpine PV projects.
- <2 % Self-Discharge per Month: Stock 12 months without top-up; date-code traceability simplifies warranty claims.
- 1C Fast Charge: 0–100 % in ≤1.5 h with 100 A charger—shortens generator or peak-shave runtime for installers.
Target Applications
- Residential solar self-consumption—store daytime PV.
- Commercial & telecom UPS.
- Off-grid cabins, RV, marine—single unit powers 1 kW load 5 h, wall mount saves floor space.
- Peak-shaving & time-of-use arbitrage—charge on cheap tariff, discharge at peak rates <4 y pay-back.
Note: This classic is intended for energy storage and deep cycle use only; it is not suitable for high-amperage cranking applications like starting engines or golf carts.
Parameters
| Model | 51.2V 100Ah Wall-Mount LFP |
|---|---|
| Nominal voltage | 51.2V |
| Nominal capacity | 100Ah |
| Nominal energy | 5.12kWh |
| Operation voltage range | 40V~58.4V |
| Charge voltage | 58.4V |
| Standard charging current | 20A |
| Max. continuous charging current | 100A |
| Standard discharging current | 20A |
| Max. continuous discharging current | 100A |
| Communication | RS485 /CAN /Dry contact / RS232 (Optional) |
| IP ratings | IP67 |
| Cycle life | 5000 cycles |
| Weight | ≈42kg |
| Dimension(W*H*D) | 520*267*220mm |
| Operation temperature range | -20 ~ 60 ℃ |
Empowering Your Business
Stock one Odipie SKU, cover 5–163 kWh projects—series to 51.2 V or parallel plug-and-play without extra combiner box. White-label laser logo, neutral carton and online data-sheet package help EU/US PV wholesalers, telecom EPCs and RV retrofitters close deals faster, cut freight 30 % and boost margin 15 % with zero after-sale hassle.
