Excerpt:

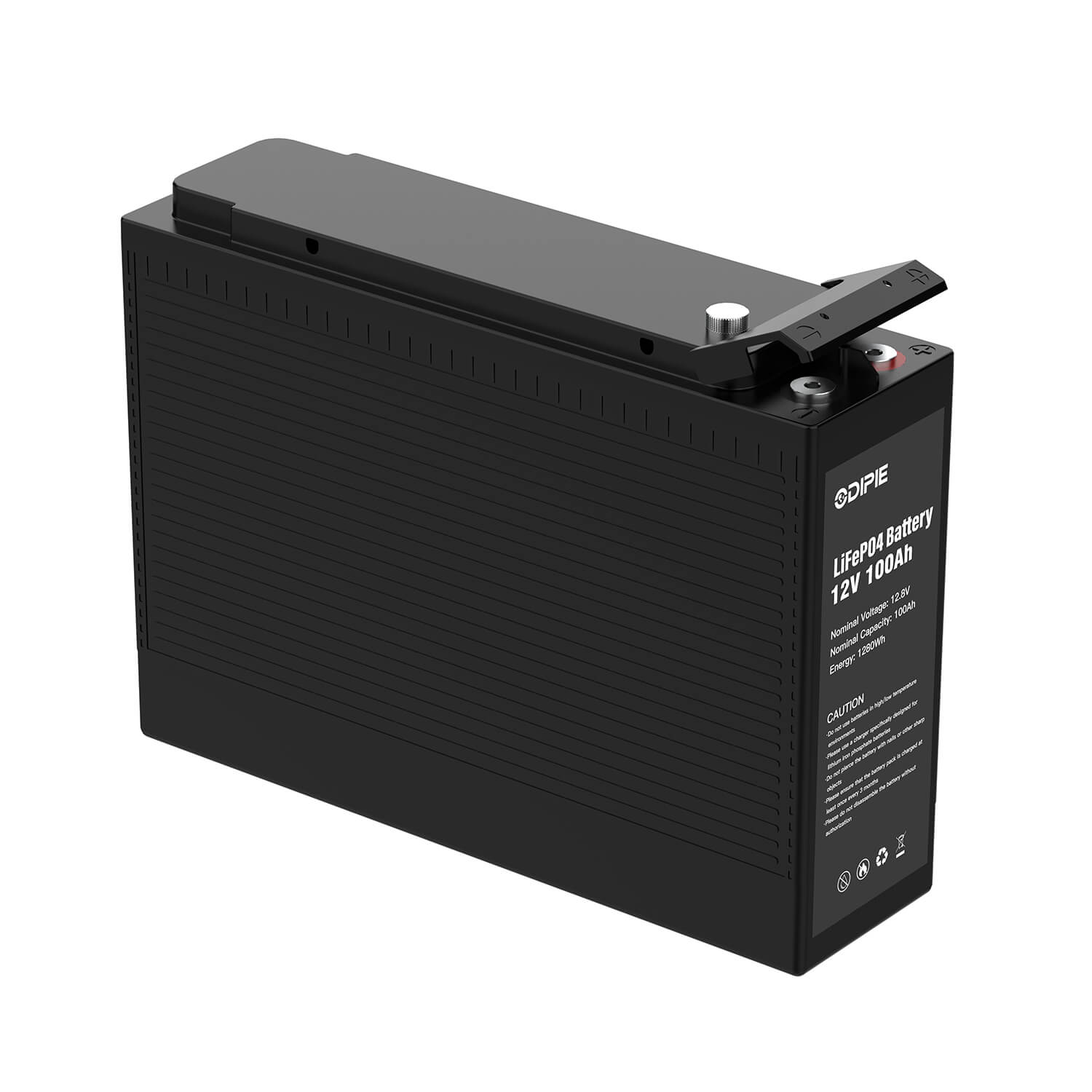

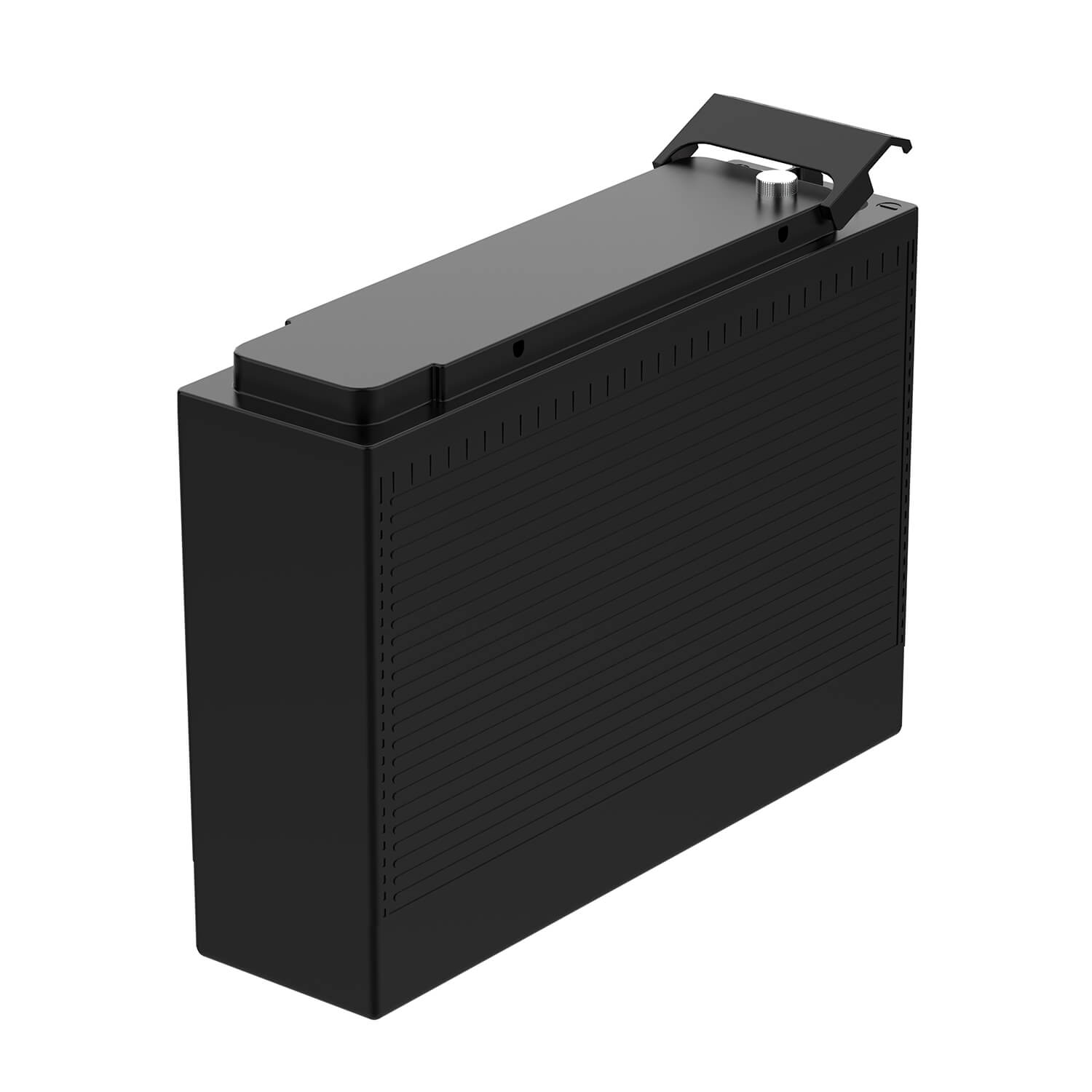

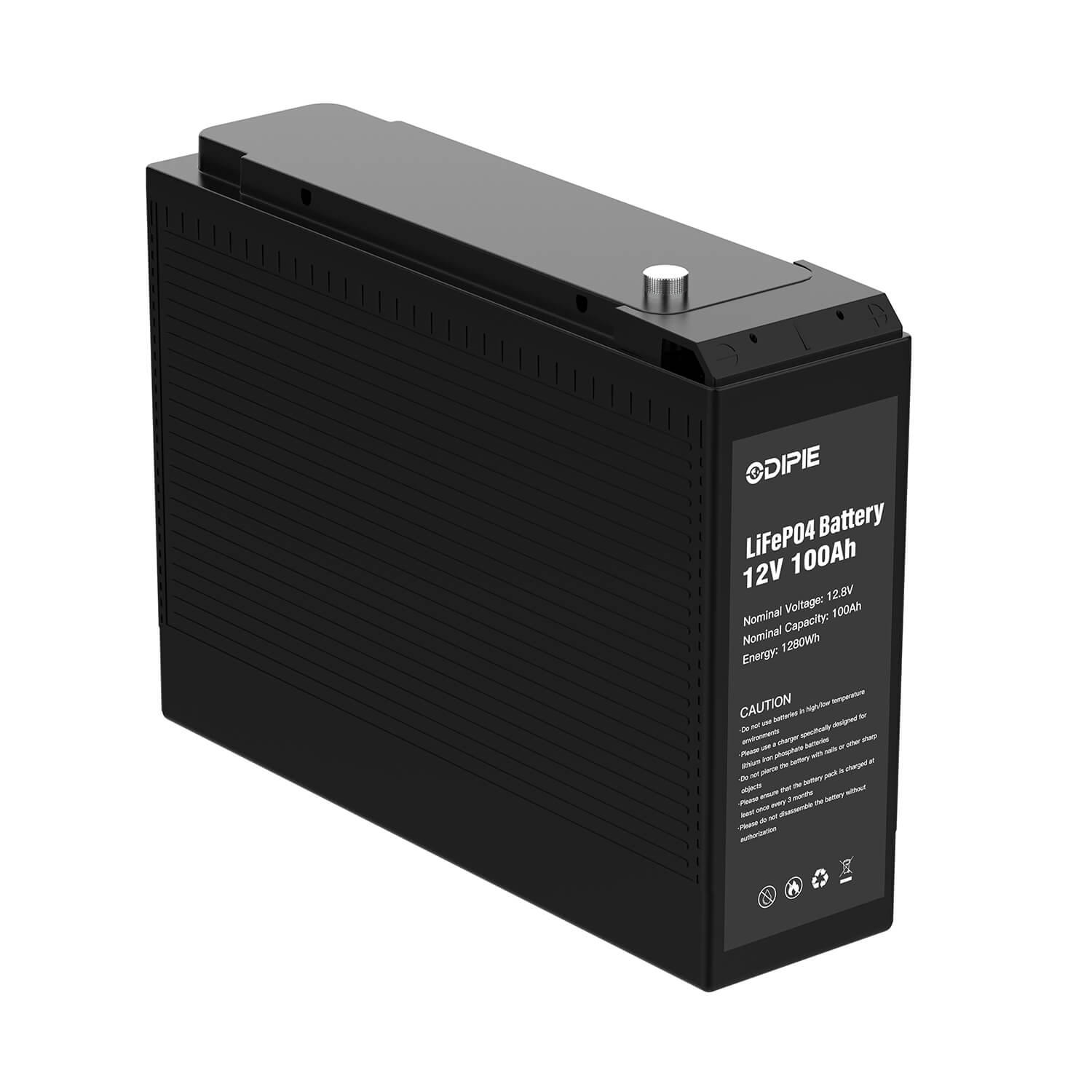

Odipie 12 V 100 Ah LiFePO4 deep-cycle RV battery: 4 000 cycles, 28 lb, 100 A BMS, IP67. Ideal for solar, RV, marine storage.
Features
- EV-Grade A+ LiFePO4 Cells: Automotive-level chemistry 4 000 cycles .
- Smart 100 A BMS: Active balancing plus 8-layer protection (over-charge/-discharge, over-current, short-circuit, hi/lo temp, overload, cell-mismatch, surge).
- Ultra-Light & Compact: 28 lb/12.7 kg—≈1/5 the weight of equivalent AGM—fits for effortless one-person install in any orientation.
- IP67 & Wide-Temp: Rated ‑20 °C to 60 °C discharge shock and crush tested.
- Flexible Connectivity: RS485/CAN bus for parallel/series scaling.
Target Applications
RV & Camper Vans – Powers fridges, lights; support with 100 A continuous draw.
Note: This classic is intended for energy storage and deep cycle use only; it is not suitable for high-amperage cranking applications like starting engines or golf carts.
Smart Charging Options
- Solar Ready – supports 100 A max charge current for 1-hour fast top-up.
Parameters
| Model | 12V 200Ah RV LFP |
|---|---|
| Nominal voltage | 12.8V |
| Nominal capacity | 100Ah |
| Nominal energy | 1.28kWh |
| Operation voltage range | 10V~14.6V |
| Charge voltage | 14.6V |
| Standard charging current | 20A |
| Max. continuous charging current | 100A |
| Standard discharging current | 20A |
| Max. continuous discharging current | 200A |
| Communication | RS485 / CAN bus (Parallel Communication) |
| IP ratings | IP67 |
| Cycle life | ≥4000 cycles |
| Weight | ≈12.5kg |
| Dimension(W*H*D) | 330*175*220mm |
| Operation temperature range | -20 ~ 60 ℃ |
