Features
- Ultra-Deep Cycle LiFePO4 Chemistry: 4,000+ cycles @ 80 % DoD—10× life of AGM, 2× of generic lithium.
- Built-In Smart BMS: shields every Odipie cell from over-charge, over-discharge, over-current, short-circuit & thermal runaway; auto-balances for 100 % usable capacity.
- 1C Continuous Charge/Discharge: 200 A charge ready in ≤1 h; 200 A discharge to power inverters.
- Feather-Light Form Factor: 22 kg—70 % lighter than equivalent AGM—cuts freight cost, mountable in any orientation.
- <3 % Monthly Self-Discharge: stock-friendly for distributors.
- -20 °C to +60 °C Operating Range: internal heat-sheet option for sub-zero charging—uninterrupted winter revenue.
- Green
Target Applications
- Solar & wind storage banks, 24 h off-grid cabins, telecom towers.
- Marine house & trolling power, RV & campervan leisure circuits.
- Industrial UPS, medical carts, lighting towers, remote instrumentation.
- Portable power packs, e-boat kits, security trailers.
Note: This classic is intended for energy storage and deep-cycle use only; it is not suitable for high-amperage cranking applications like starting engines or golf carts.
Parameters

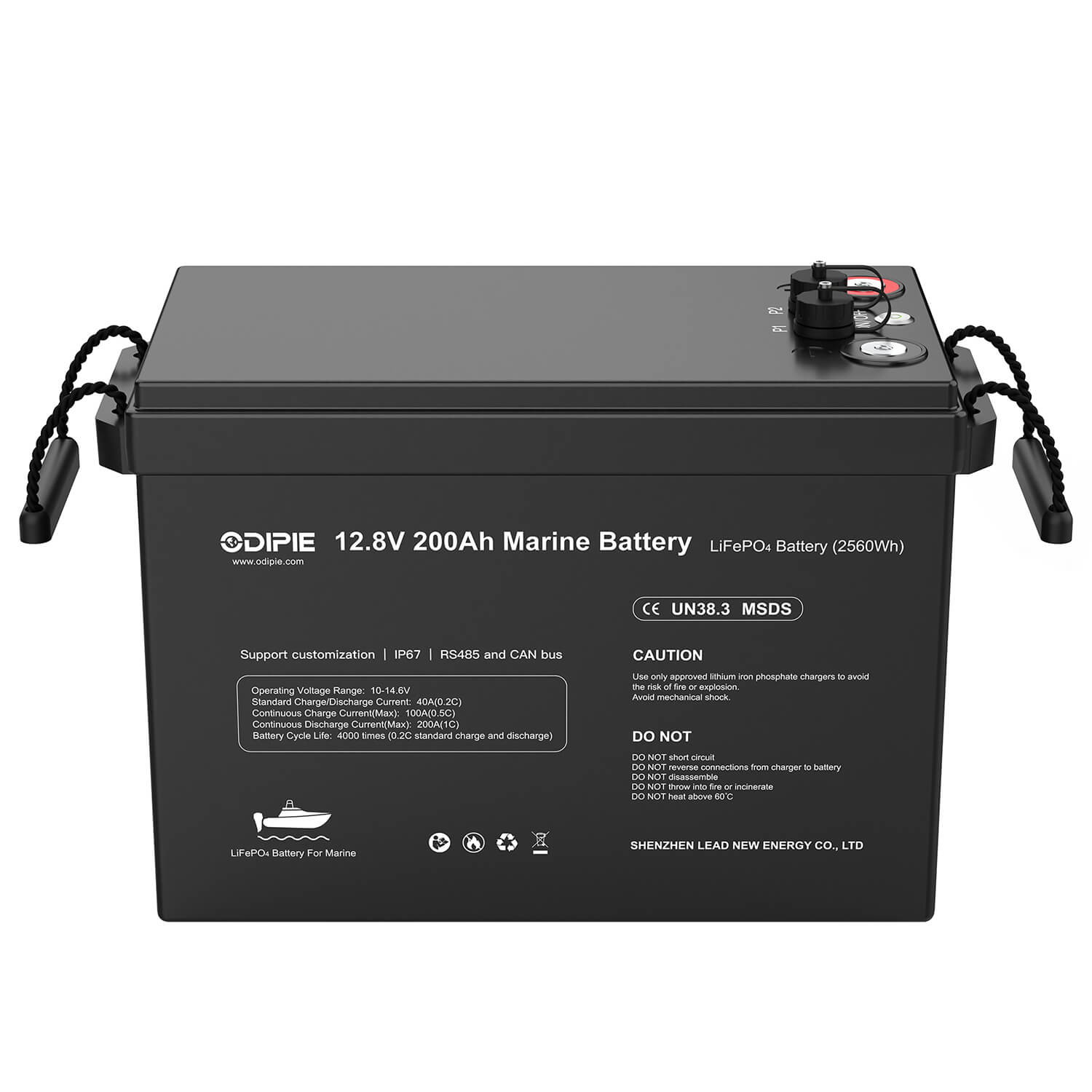

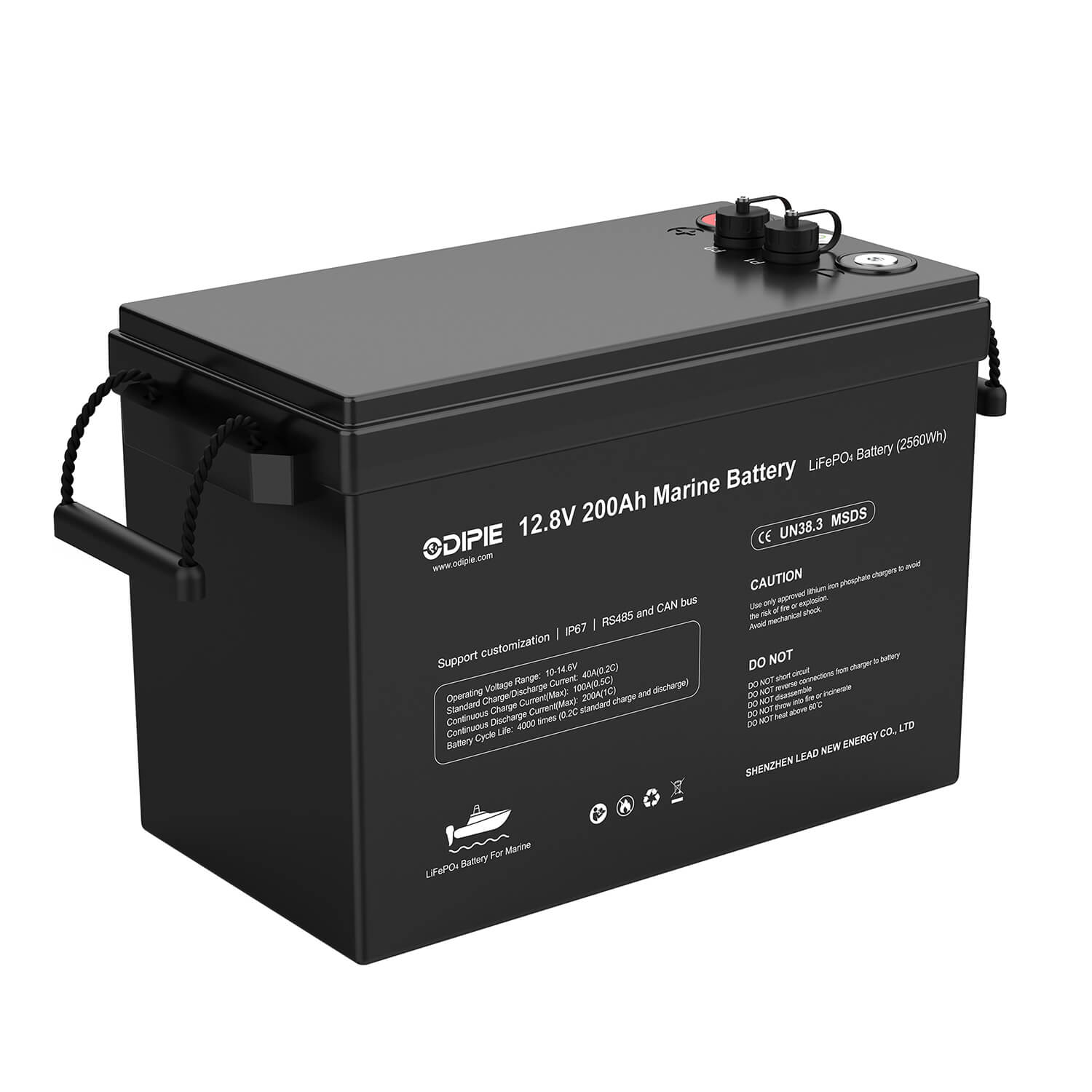

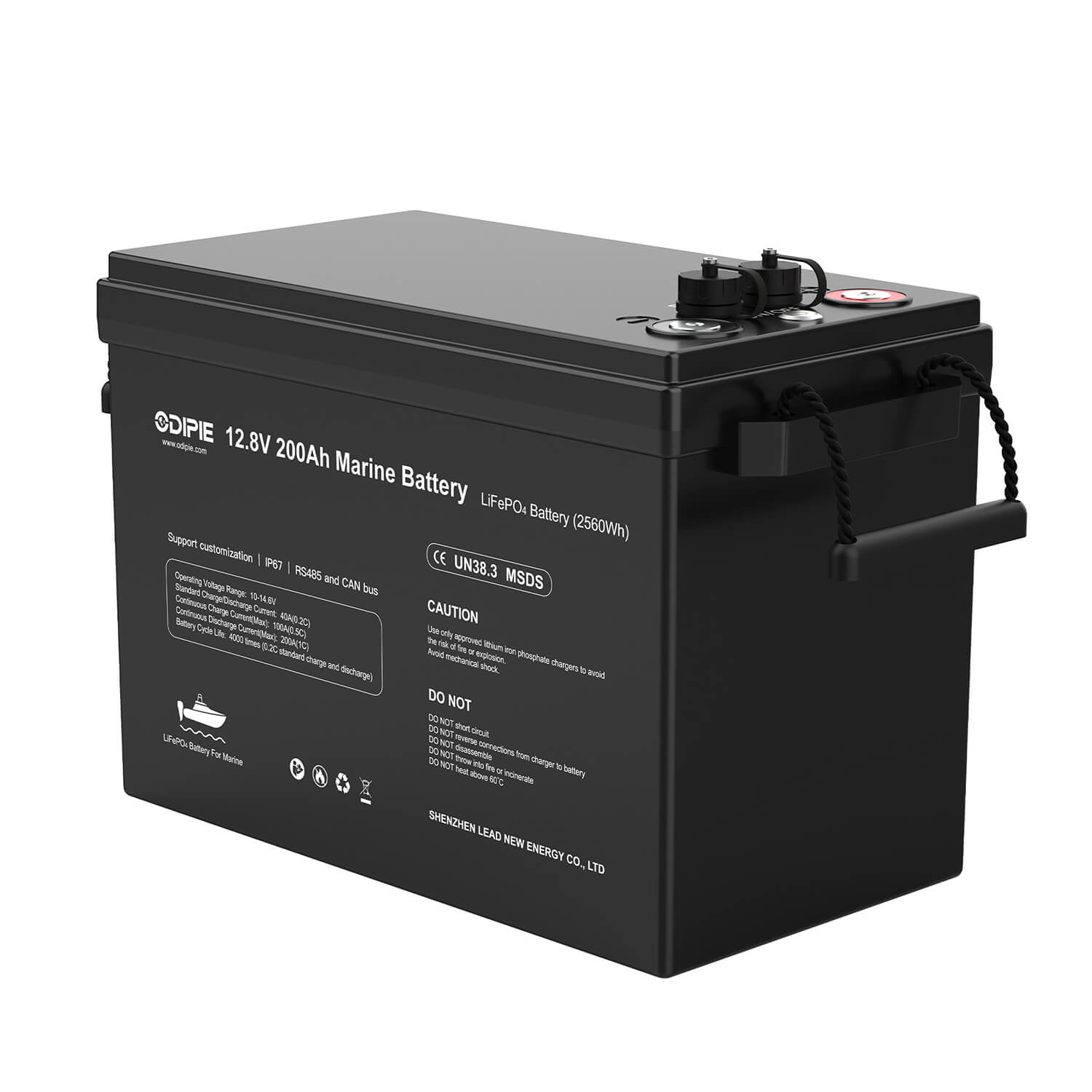

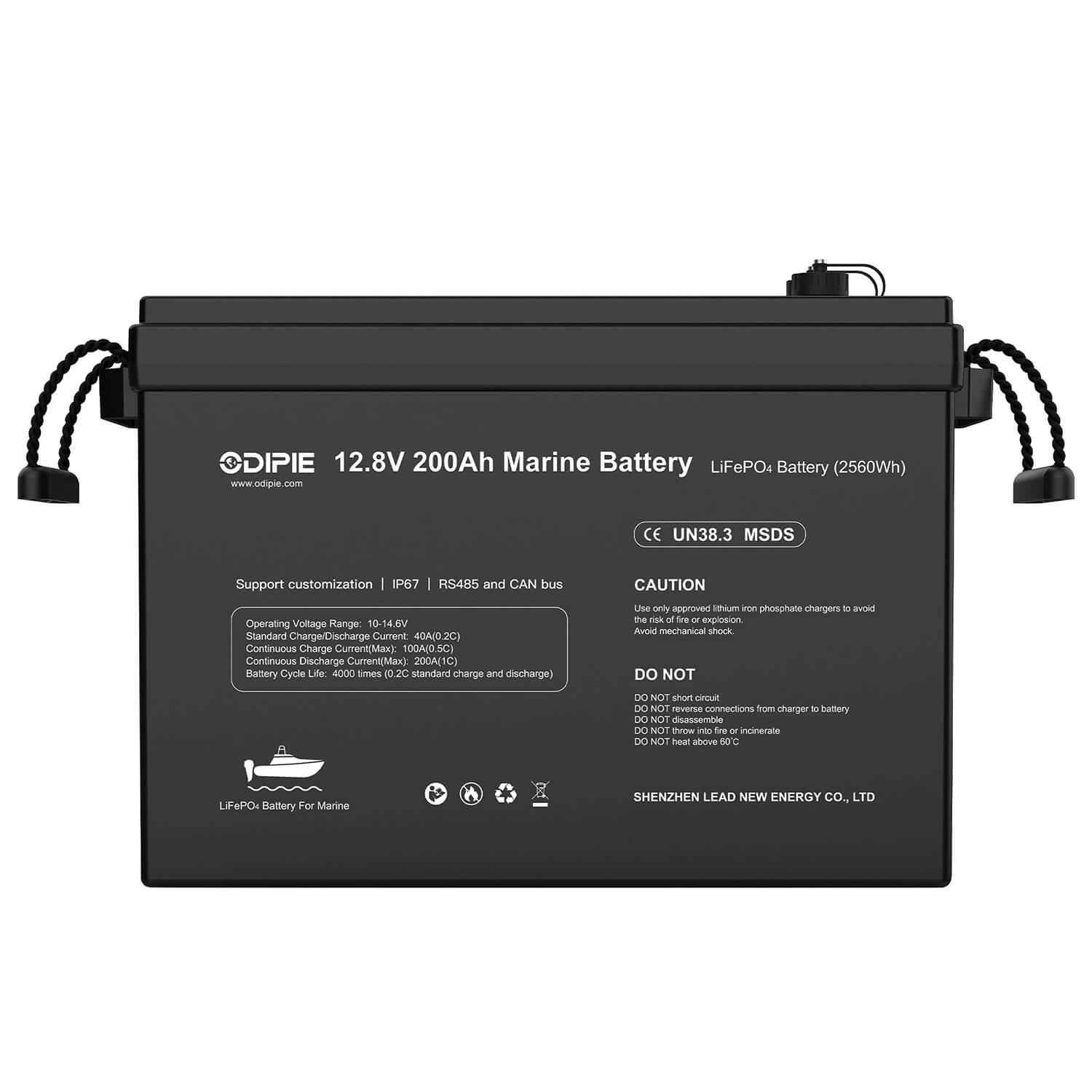

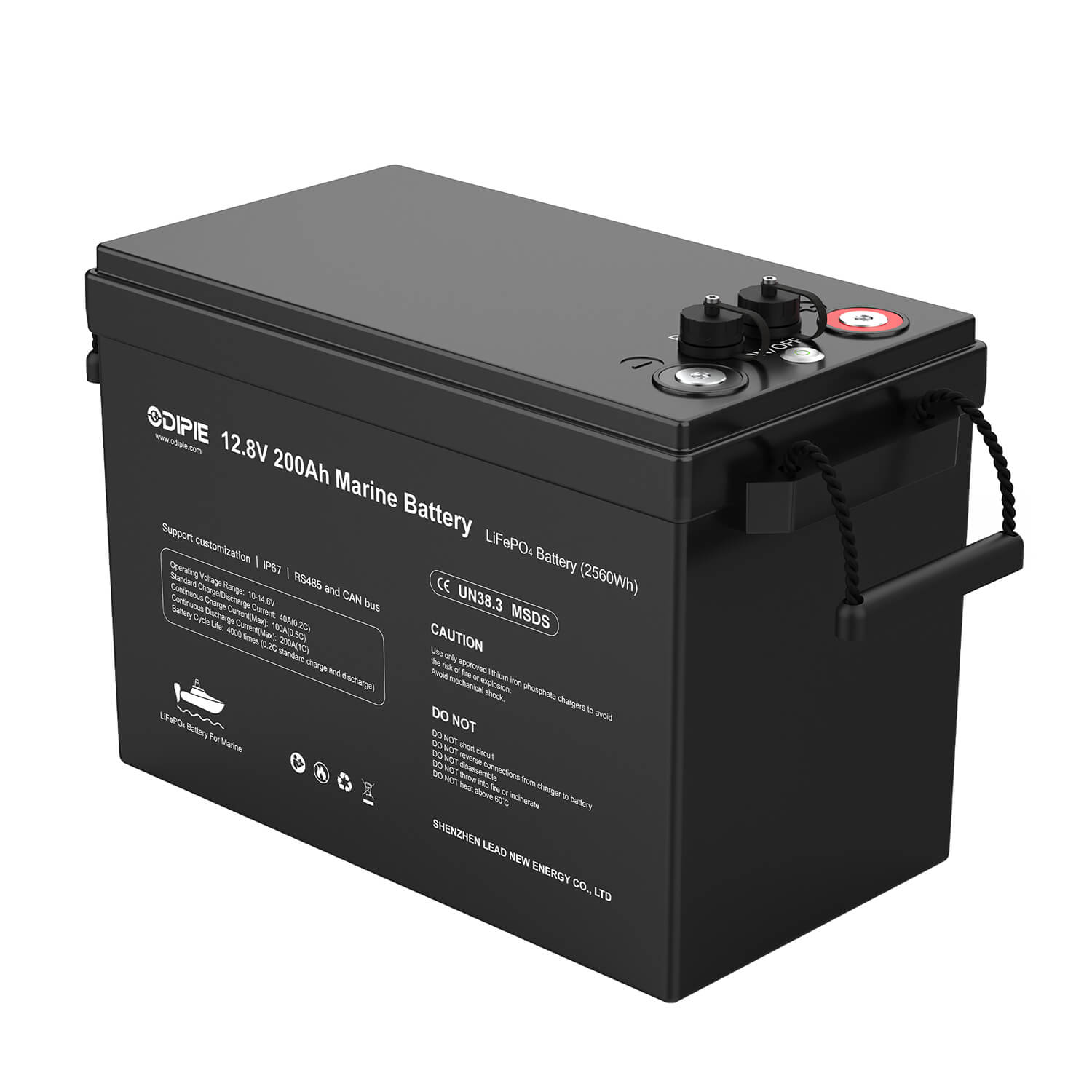

| Model | 12.8V 200Ah Marine LFP |
|---|---|
| Nominal voltage | 12.8V |
| Nominal capacity | 200Ah |
| Nominal energy | 2.56kWh |
| Operation voltage range | 10V~14.6V |
| Charge voltage | 14.6V |
| Standard charging current | 40A |
| Max. continuous charging current | 200A |
| Standard discharging current | 40A |
| Max. continuous discharging current | 200A |
| Communication | RS485 / CANbus (Parallel Communication) |
| IP ratings | IP67 |
| Cycle life | ≥4000 cycles |
| Weight | ≈22kg |
| Dimension(W*H*D) | 384*194*255mm |
| Operation temperature range | -20 ~ 60 ℃ |
Charging Methods
- Smart AC Chargers: select “LiFePO4” mode; 30 A unit recharges 0–100 % in 6 h, 50 A in 3.5 h.
- Generator/Inverter-Charger: 40–120 A settings accepted; BMS temp-probe prevents cold-charge damage.
Empowering Your Business
White-label OEM firmware & case silk-screen ready in 15 days—launch your own “200 Ah 12 V lithium” SKU without NRE.
Co-op data sheets, UN38.3 docs and high-res lifestyle images supplied—speeds reseller listing on Amazon & eBay.
