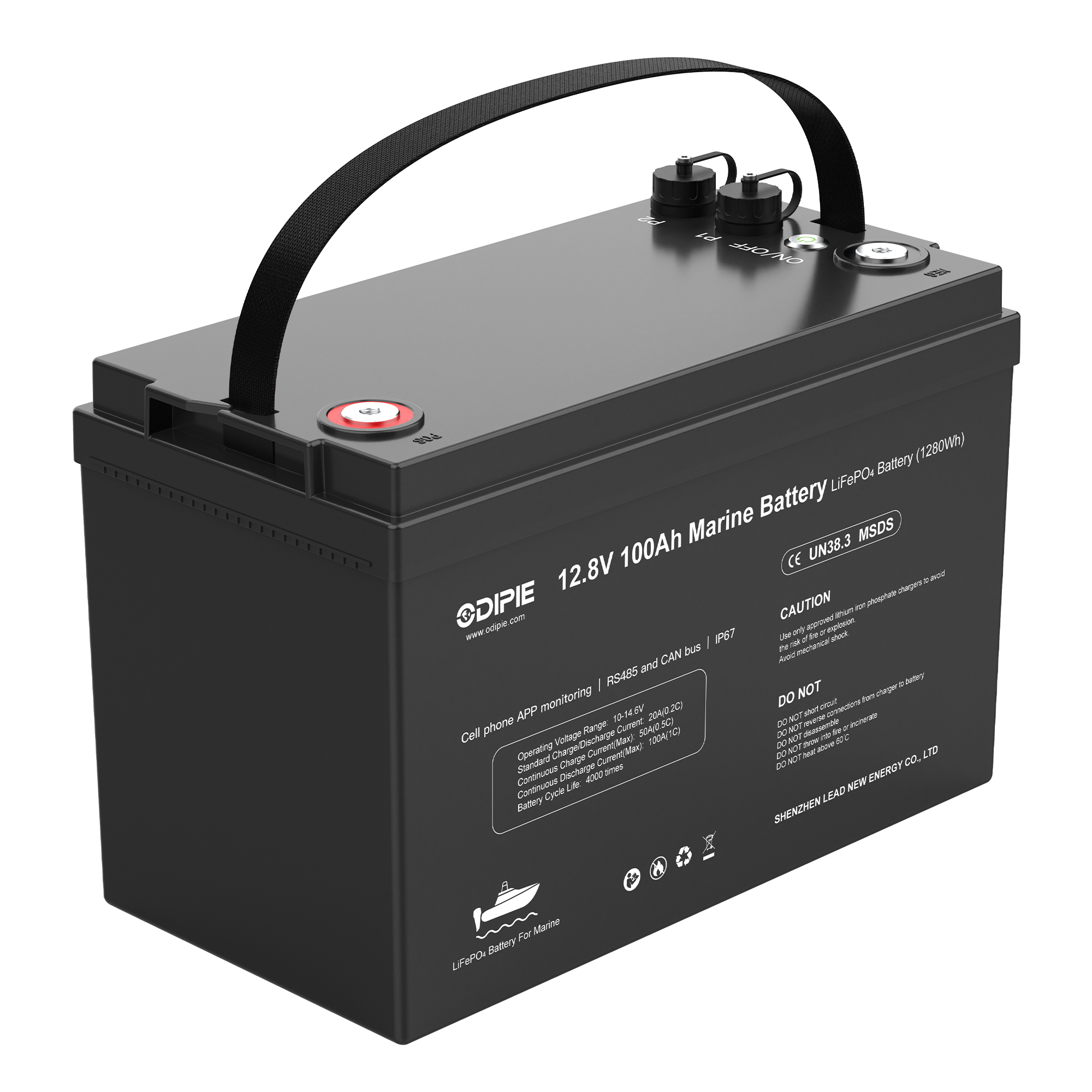

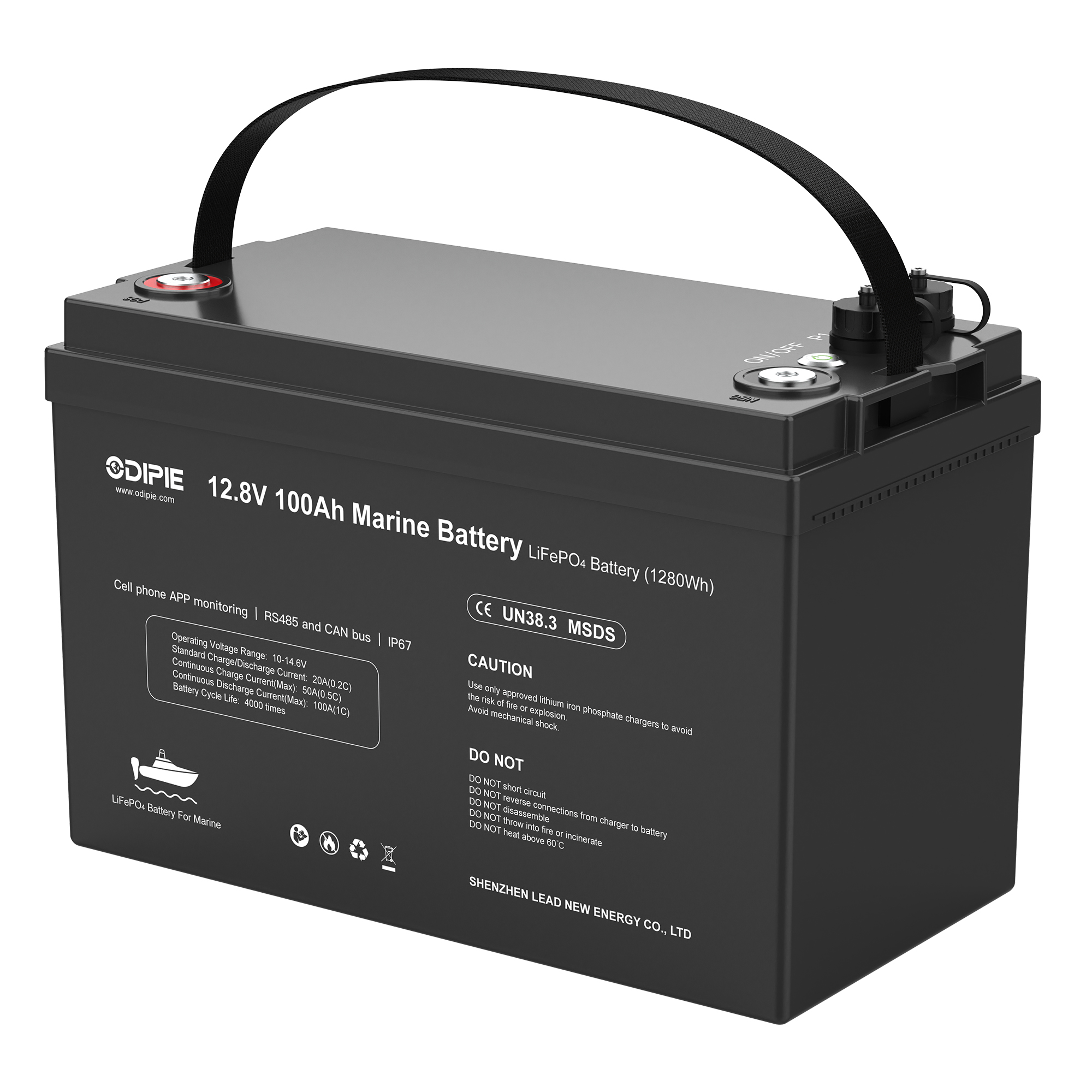

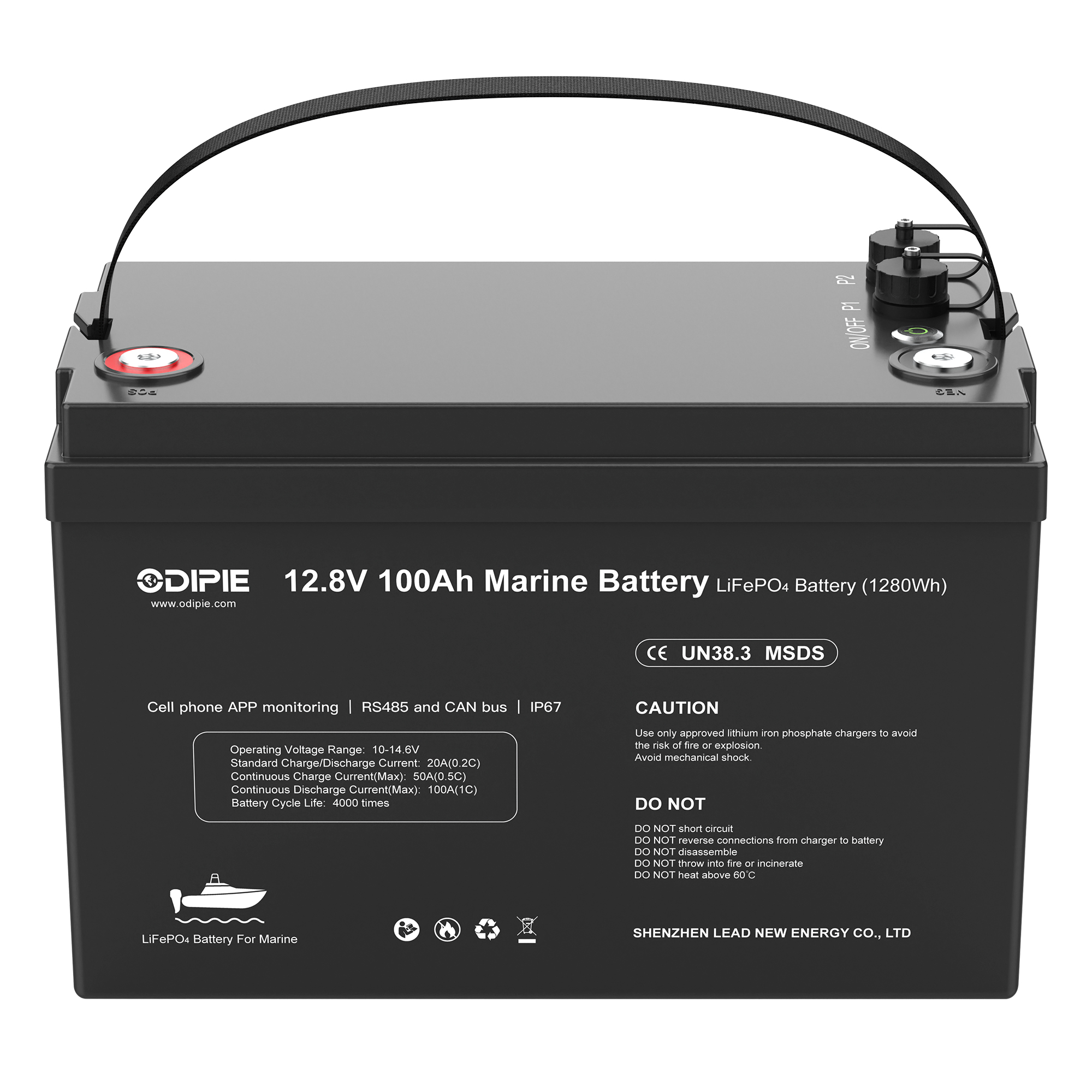

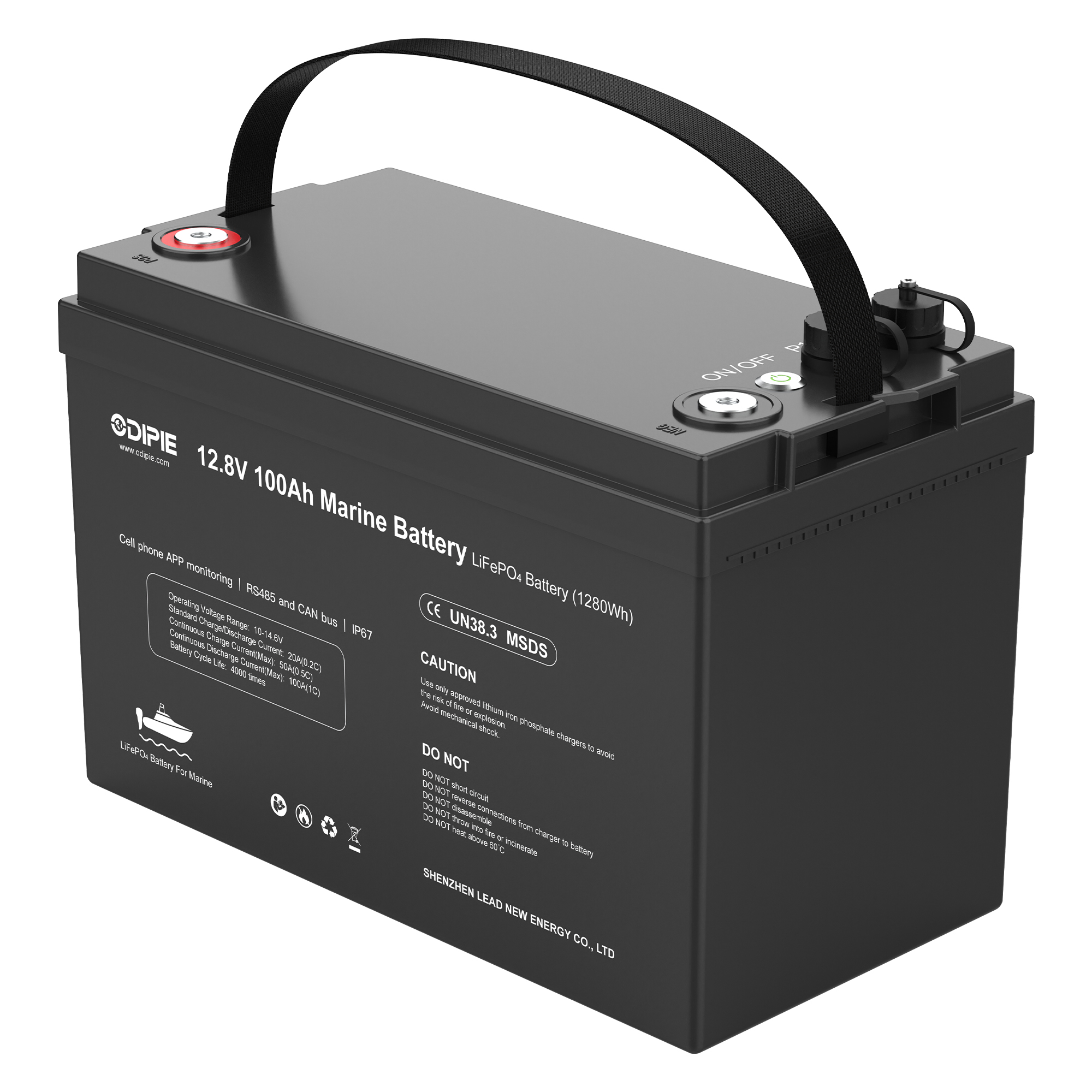

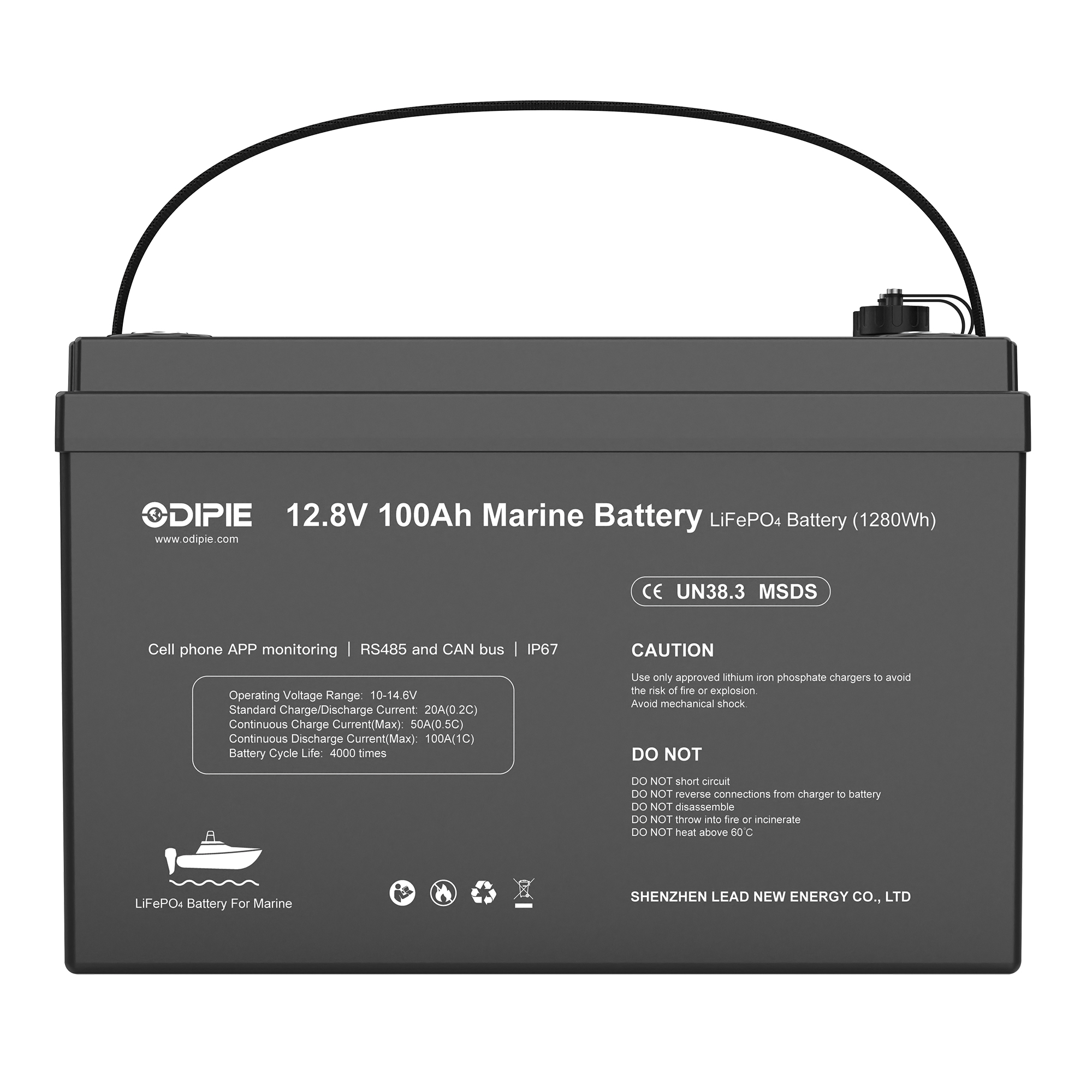

Odipie 12V 100Ah marine LiFePO4 battery: 1280Wh, 26lb, 4000 cycles, active heater, 4S4P 20kWh, IP65. Perfect trolling motor & RV house bank for dealers.
Features
12V 100Ah Core: Odipie LiFePO4 block delivers 1280Wh usable energy at27lb—half the weight and double the runtime of Group 31 AGM.
4000+ Cycles @100% DOD: EV-grade cells rated ≥4000 cycles (10-year service) cutting replacement stock and warranty claims.
1C Continous 100A: Run trolling motors, fridges, or 1280W inverters without voltage sag; 200A 5s surge for hydraulic loads.
IP65 & UL94-5VA: Waterproof, salt-spray proof, flame-retardant casing passes marine UV test; Group 27 footprint drops straight into existing boxes.
Target Applications
- Kayak & bass-boat trolling motors (30-70lb thrust) – 2× runtime vs AGM, silent 1C discharge.
- Sailboat & yacht house bank – Group 27 size frees locker space, parallel for 20kWh weekend anchor.
- Note: This classic is intended for energy storage and deep-cycle use only; it is not suitable for high-amperage cranking applications like starting engines or golf carts.
Parameters
| Model | 12.8V 100Ah Marine LFP |
|---|---|
| Nominal voltage | 12.8V |
| Nominal capacity | 100Ah |
| Nominal energy | 1.28kWh |
| Operation voltage range | 10V~14.6V |
| Charge voltage | 14.6V |
| Standard charging current | 20A |
| Max. continuous charging current | 100A |
| Standard discharging current | 20A |
| Max. continuous discharging current | 200A |
| Communication | RS485 / CAN bus (Parallel Communication) |
| IP ratings | IP67 |
| Cycle life | 4000 cycles (0.2C charge and discharge) |
| Weight | ≈12.5kg |

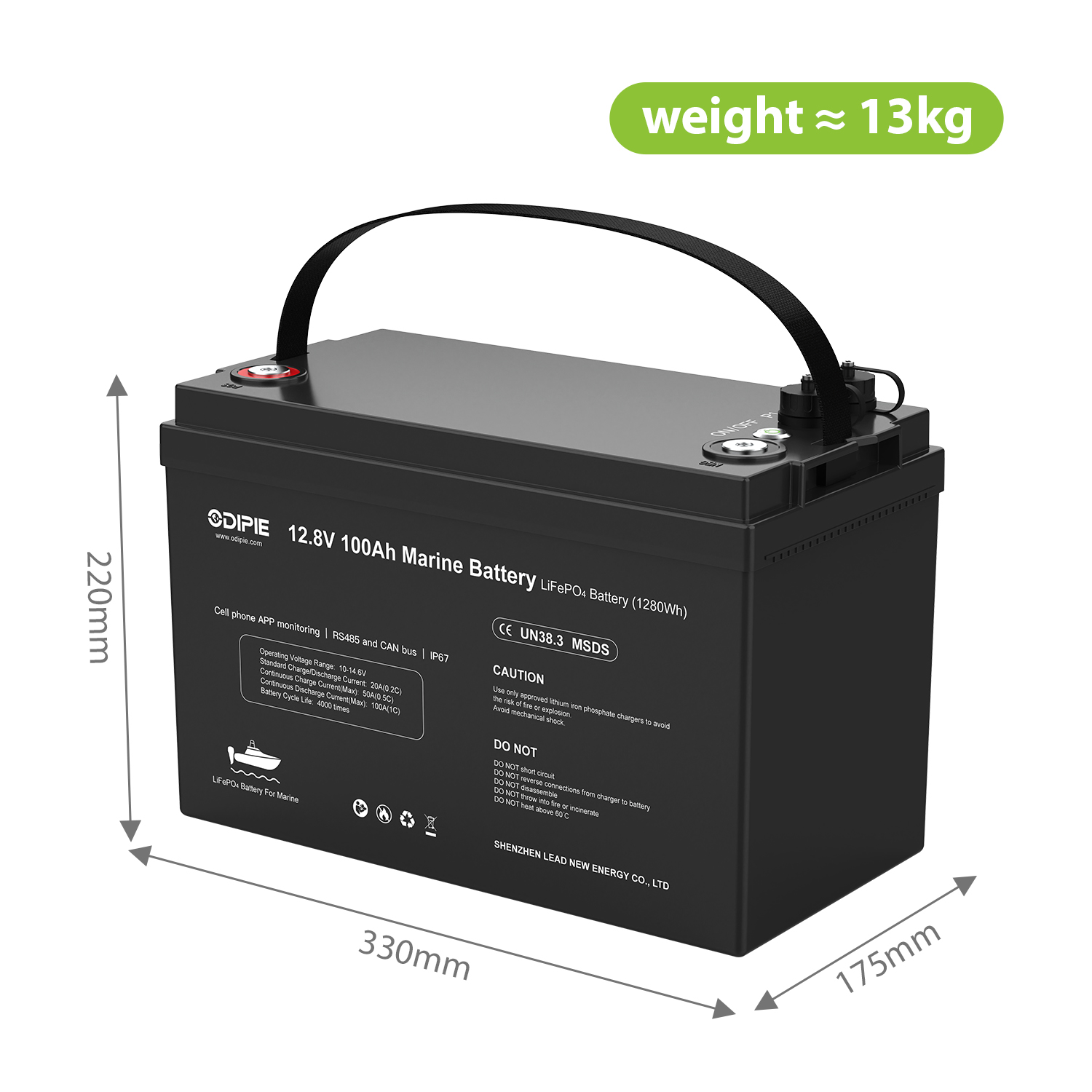

| Dimension(W*H*D) | 330*175*220 |
| Operation temperature range | -20 ~ 60 ℃ |
Charging Methods：
- <0.3% claim rate + 3-year factory warranty = fewer returns, happier dealers.
- White-label app & orange front sticker available—brand it Odipie or your logo.
