Excerpt:

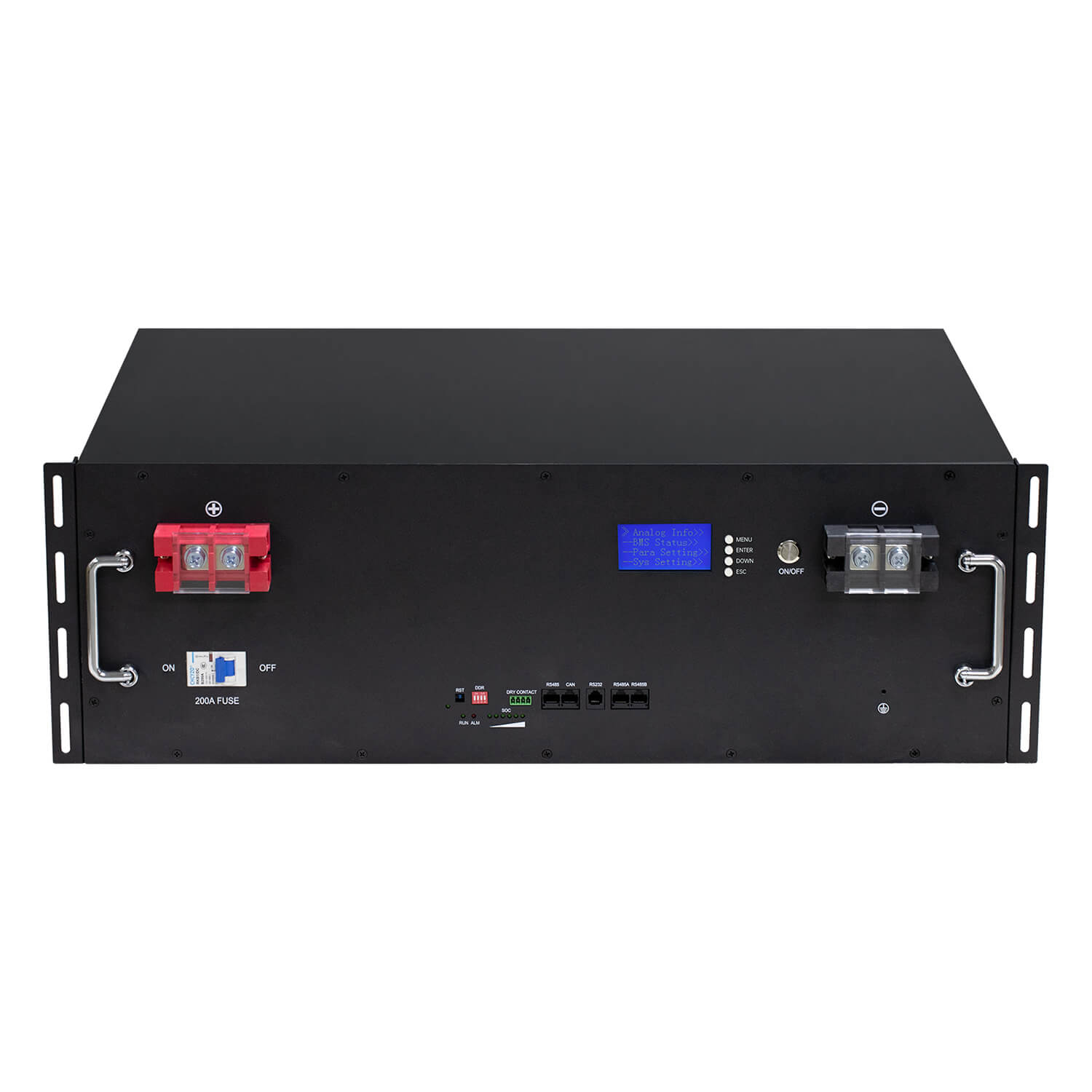

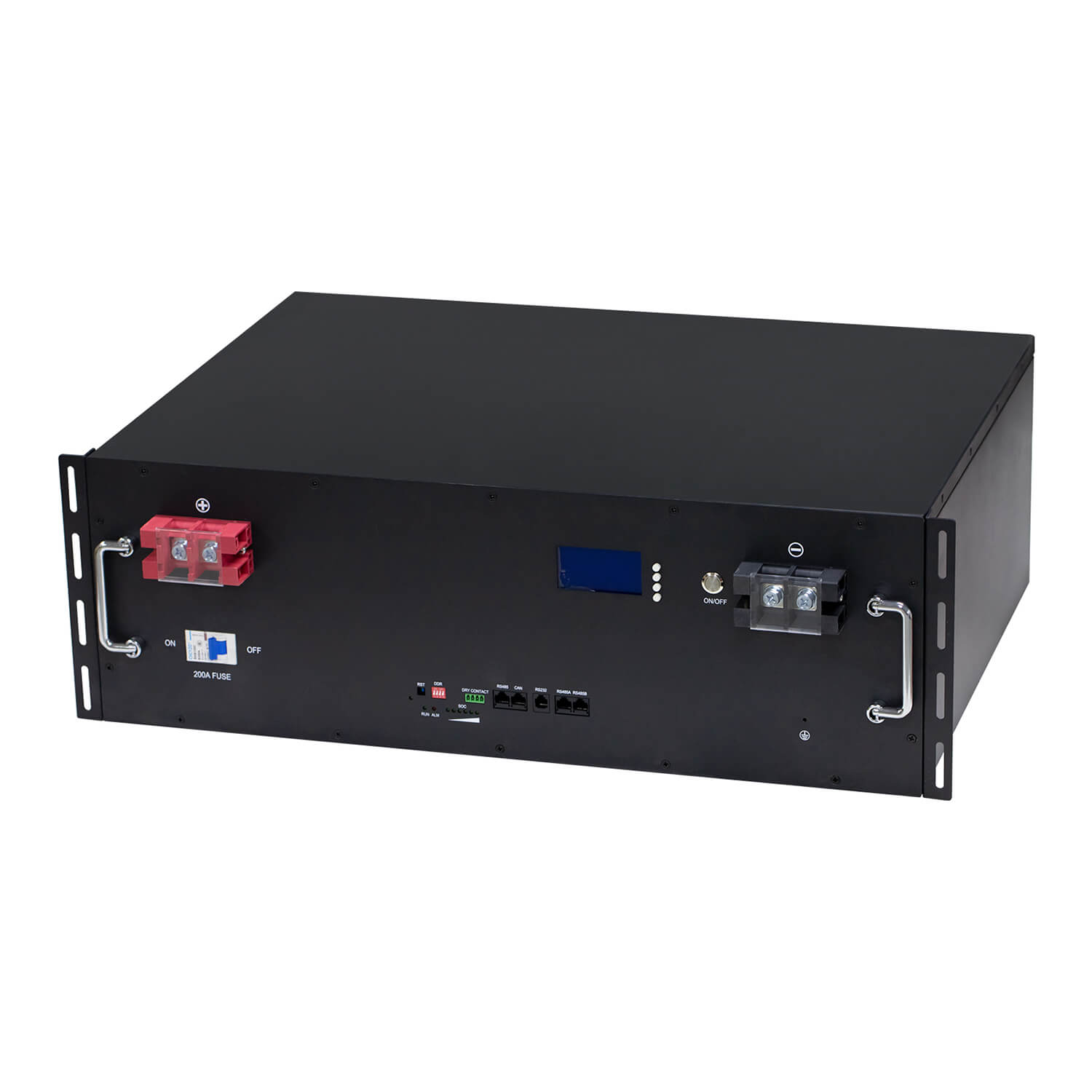

Odipie 51.2 V 300 Ah 15 kWh LiFePO4 battery: 6 000 cycles, scalable to 240 kWh, smart BMS—perfect for solar storage .
Features
- Stable 51.2 V Architecture: Delivers 15 kWh usable energy in a single 300 Ah pack; voltage window ideal for 48 V hybrid inverters—no series-parallel headaches for installers.
- LFP Chemistry: 6 000+ cycles @ 80 % DOD, –20 °C to 60 °C operating range; Class-A LiFePO4 cells eliminate cobalt, cutting hazmat shipping cost and after-sales claims.
- Drop-in Retrofit: Standard 19-inch rack or wall bracket; front-access terminals and RS485/CAN ports plug into 30+ mainstream inverters—stock once, fit everywhere.
- Smart BMS Inside: 200 A continuous, 300 A 10 s surge, dual safety relays.
Target Applications
- Peak-shave & back-up for homes, small offices, telecom sheds.
- Solar self-consumption upgrade for 5–20 kW rooftop systems.
- Time-of-use arbitrage in markets with > 30 ¢/kWh spread.
- UPS for CCTV, medical fridge, fish-tank—quiet indoor runtime > 12 h.
- Low-temp off-grid cabins: heater pad option draws < 60 W from same pack.
Note: This classic is intended for energy storage and deep cycle use only; it is not suitable for high-amperage cranking applications like starting engines or golf carts.
Parameters
| Model | 51.2V 300Ah Rack-Mount LFP |
|---|---|
| Nominal voltage | 51.2V |
| Nominal capacity | 300Ah |
| Nominal energy | 15.36kWh |
| Operation voltage range | 40V~58.4V |
| Charge voltage | 58.4V |
| Standard charging current | 60A |
| Max. continuous charging current | 200A |
| Standard discharging current | 60A |
| Max. continuous discharging current | 200A |
| Communication | RS485 /CAN /Dry contact / RS232 (Optional) |
| IP ratings | IP20 |
| Cycle life | 6000 cycles |
| Weight | ≈118kg |
| Dimension(W*H*D) | 728*500*236mm |
| Operation temperature range | -20 ~ 60 ℃ |
Empowering Your Business
Choosing Odipie means securing a strategic partner dedicated to your success. We offer more than just a product; we provide a foundation for your brand's growth.
- Deep OEM/ODM Customization: We offer extensive customization options, from voltage and capacity adjustments to bespoke dimensions and external case branding. Our dedicated R&D team works with you 1-on-1 to develop a differentiated product that meets your specific market needs.
- Supply Chain Reliability: As a factory-direct manufacturer with ISO9001 certification and a capacity of 300,000 cells/day, we guarantee quality control, competitive factory pricing, and agile production schedules to ensure fast, reliable delivery for your bulk orders.
- Market Advantage: Leverage our certified (CE, UN38.3, UL, etc.) and technologically advanced batteries to enhance your product portfolio. We help you seize market opportunities quickly by providing a superior, reliable, and safe energy solution that your customers can trust.
