Excerpt:
Odipie 51.2V 300Ah 15.36 kWh IP50 LiFePO4 battery delivers 6000 cycles, CAN sync; dealer-friendly pallet MOQ.
Features

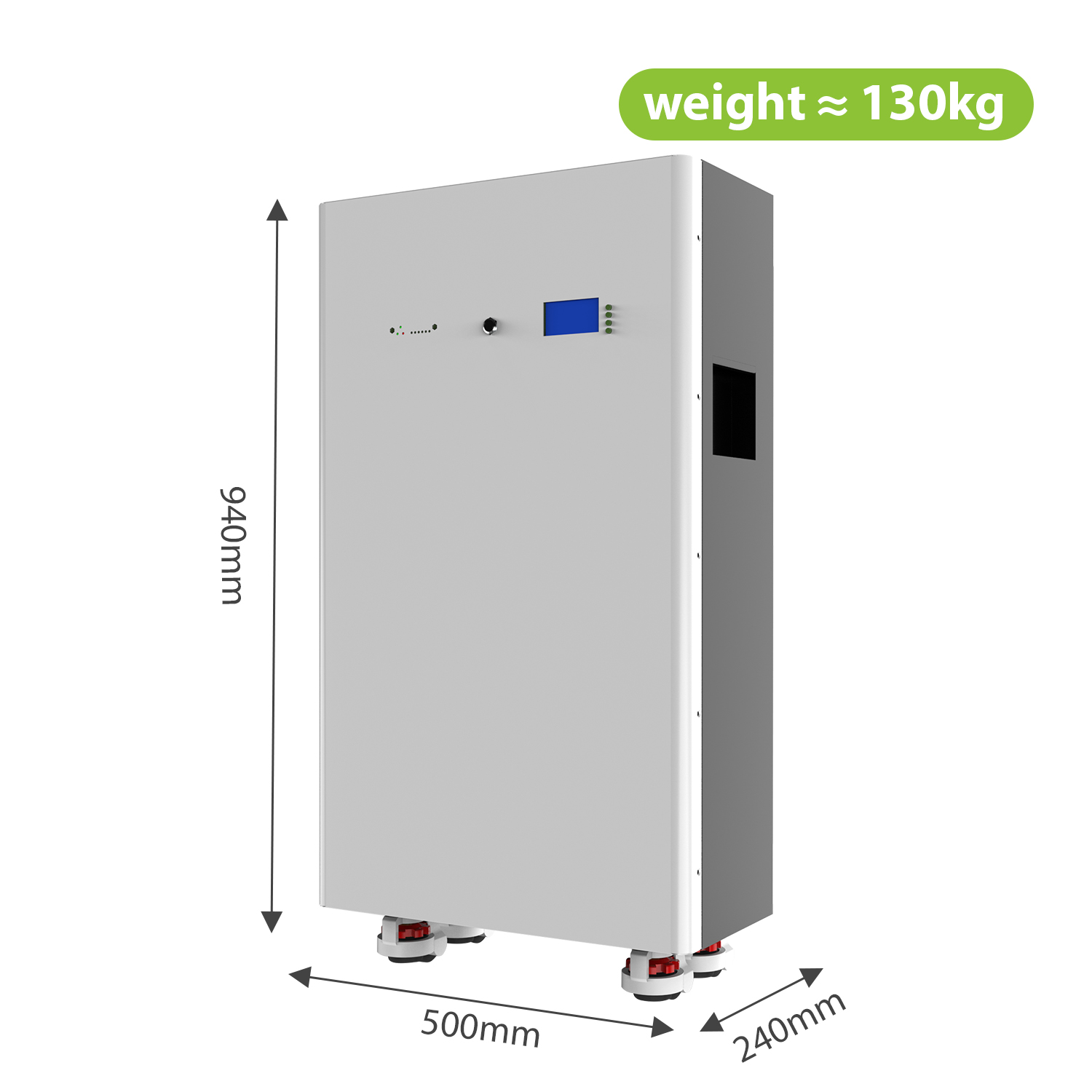

15.36kWh Compact Power: Odipie 51.2V 300Ah LiFePO₄ pack delivers 15.36kWh in one 940 × 500 × 240 mm wall/floor unit—save warehouse space.
6000+ Cycles @80% DOD: Grade-A EVE/CATL cells rated for 10year daily cycling, cutting replacement cost per kWh.
Parallel connection: Yes
Smart BMS Inside: CAN/RS485 + Bluetooth/Wi-Fi ports; over-current, over-temp, short-circuit.
Target Applications
- Off-grid villas & tiny homes—store daytime PV, run 5kW–10kW inverters overnight.
- Peak-shaving for small shops & offices—cut demand charges without gensets.
- Retrofit lead-acid banks
Note: This classic is intended for energy storage and deep-cycle use only; it is not suitable for high-amperage cranking applications like starting engines or golf carts.
Parameters
| Model | 51.2V 300Ah Wall-Mount LFP |
|---|---|
| Nominal voltage | 51.2V |
| Nominal capacity | 300Ah |
| Nominal energy | 15.36kWh |
| Operation voltage range | 40V~58.4V |
| Charge voltage | 58.4V |
| Standard charging current | 60A |
| Max. continuous charging current | 200A |
| Standard discharging current | 60A |
| Max. continuous discharging current | 200A |
| Communication | RS485 /CAN /Dry contact / RS232 (Optional) |
| Waterproof Level | IP50 |
| Cycle life | 6000 cycles |
| Weight | ≈130kg |
| Dimension(W*H*D) | 940*500*240mm |
| Operation temperature range | -20 ~ 60℃ |
Charging Methods
- Solar MPPT,charge voltage:58.4V
- AC-DC,LiFEPO4 battery charger: 58.4V
