Excerpt:

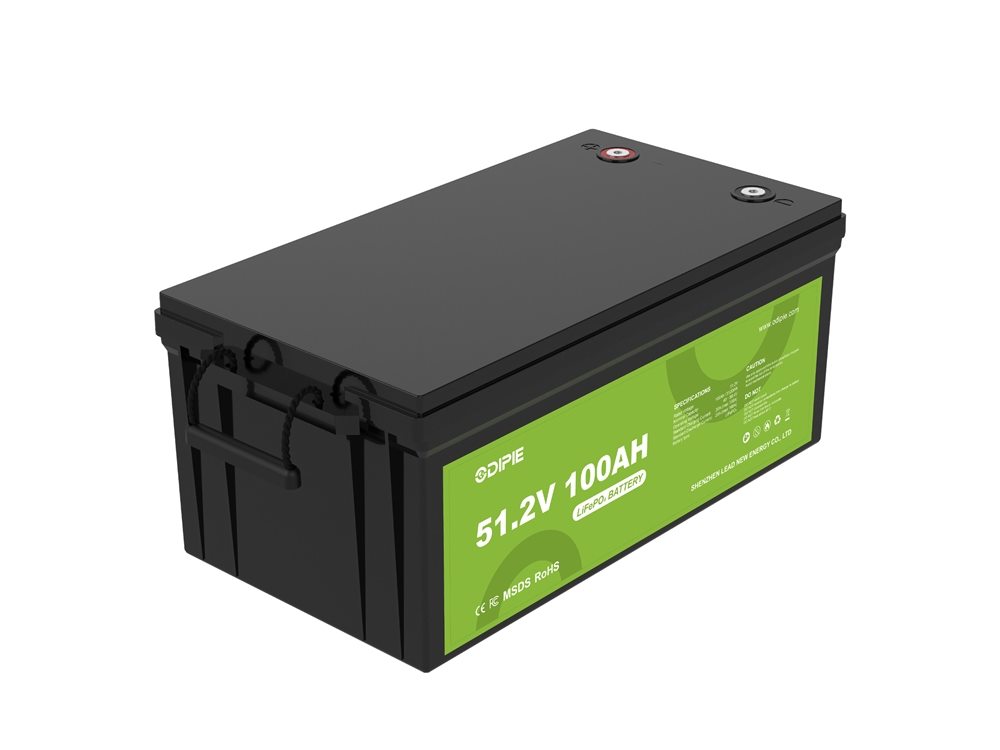

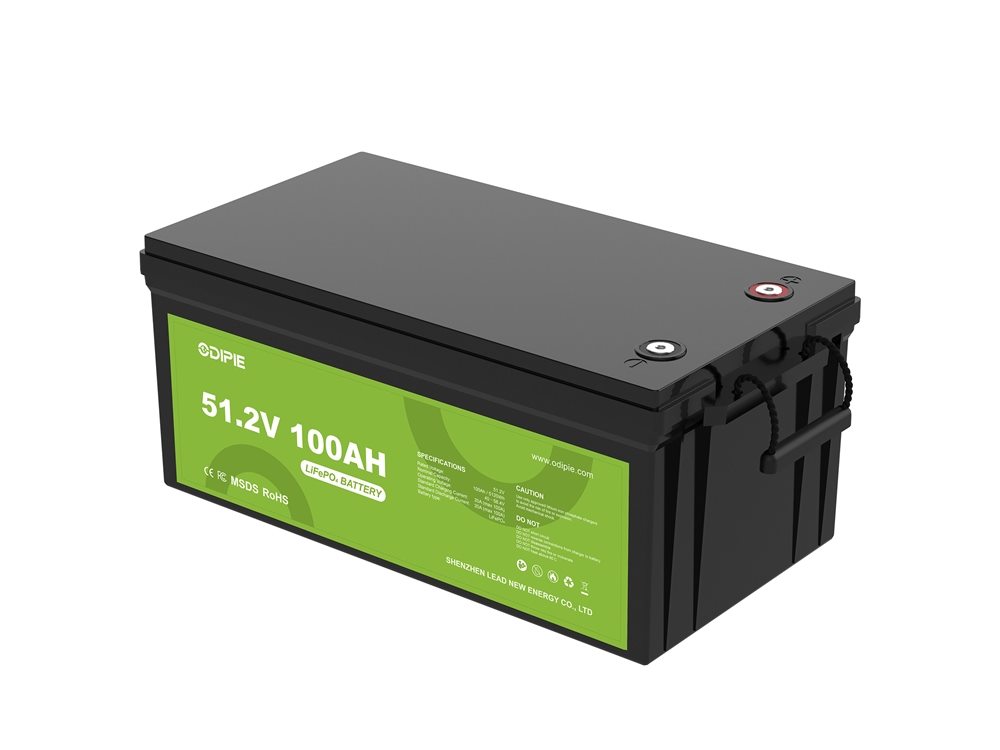

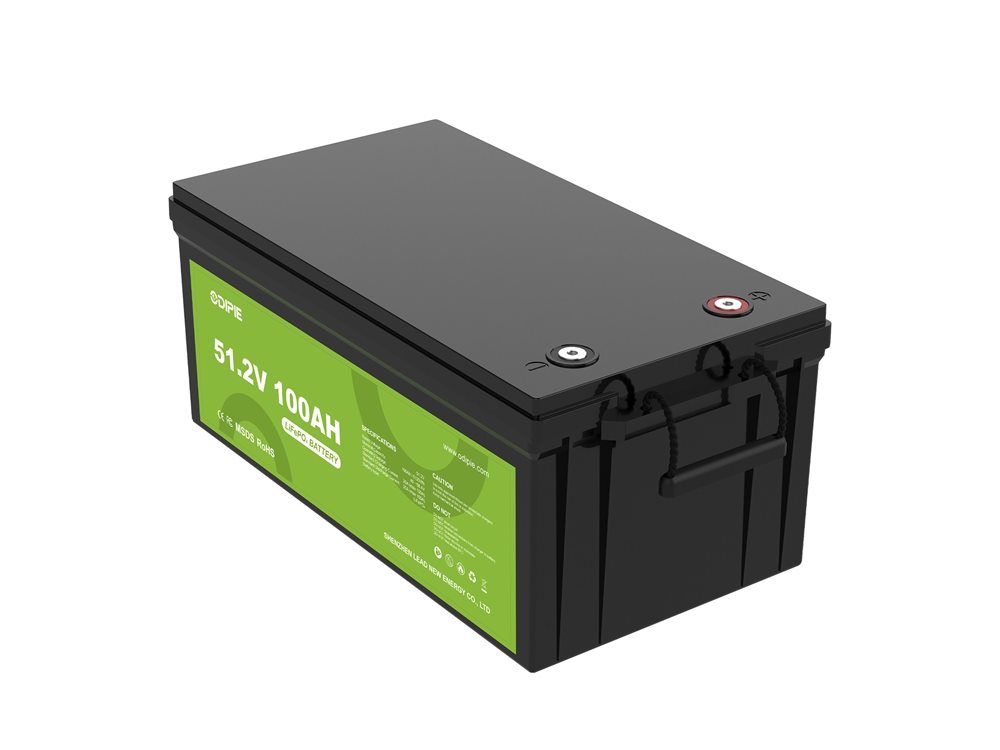

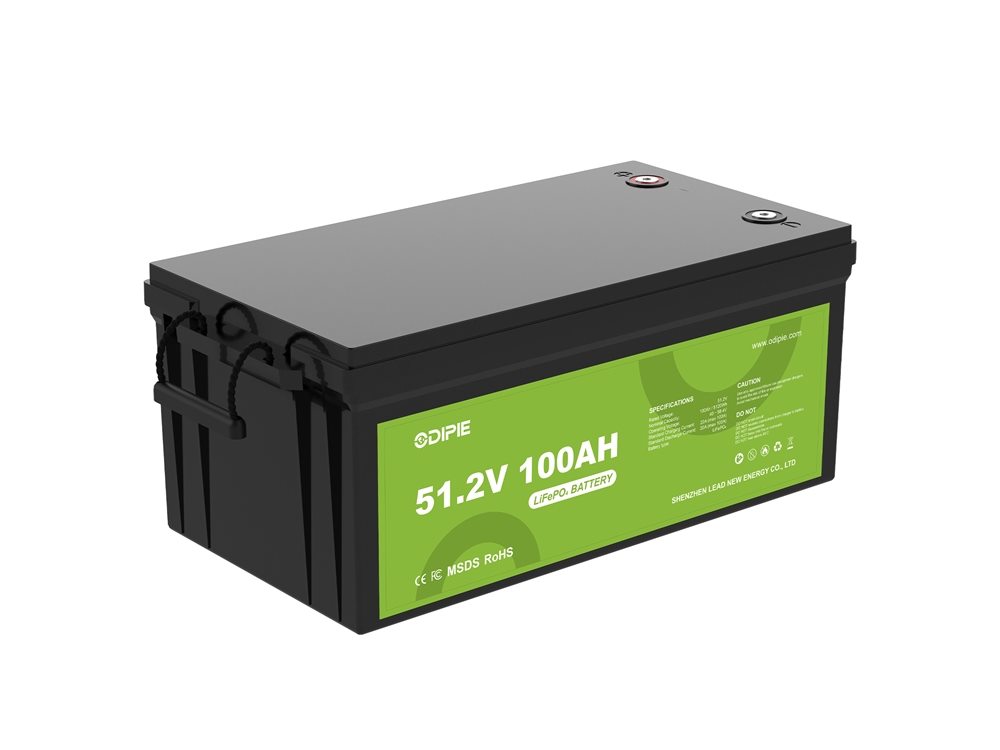

Odipie 51.2 V 100Ah Powerwall LiFePO4 battery packs 5.12 kWh, 5000 cycles, 100 A BMS, CAN/RS485, IP65 steel case; parallel up to 76.8 kWh. Ideal for solar self-consumption, telecom, mobile business.
Features
High Energy Density LiFePO4 Core: 51.2 V 100Ah pack delivers 5.12 kWh from 0.2 m³—70 % lighter than SLA, 98 % efficiency at 0.5 C.
100 A Active BMShandles 1 C charge & discharge, -20 °C~60 °C operation without derate.
IP65 Steel Chassis: SPCC housing, rack or wall mount; vibration & dust proof for RV, marine, cabin.
5000 Cycle Life: 80 % capacity retention after 5000 cycles @ 100 % DoD; 10-year design life, <2 % self-discharge per month.
Target Applications
Home solar self-consumption, time-of-use shifting, UPS for routers & medical fridges.
Off-grid cabins, telecom towers, IoT gateways—silent, fume-free, -20 °C start-up.
Industrial AGV, floor-cleaning robots, peak-shaving for small factories.
48 V battery bank expansion for hybrid inverters (SMA, Victron, Growatt, Deye).
Note: This classic is intended for energy storage and deep-cycle use only; it is not suitable for high-amperage cranking applications like starting engines or golf carts.
Parameters
| Model | 51.2V 100Ah Classic LFP |
|---|---|
| Nominal voltage | 51.2V |
| Nominal capacity | 100Ah |
| Nominal energy | 5.12kWh |
| Operation voltage range | 40V~58.4V |
| Charge voltage | 58.4V |
| Standard charging current | 20A |
| Max. continuous charging current | 100A |
| Standard discharging current | 20A |
| Max. continuous discharging current | 100A |
| Communication | NO, Optional |
| IP ratings | IP65 |
| Cycle life | 5000 cycles |
| Weight | ≈40kg |

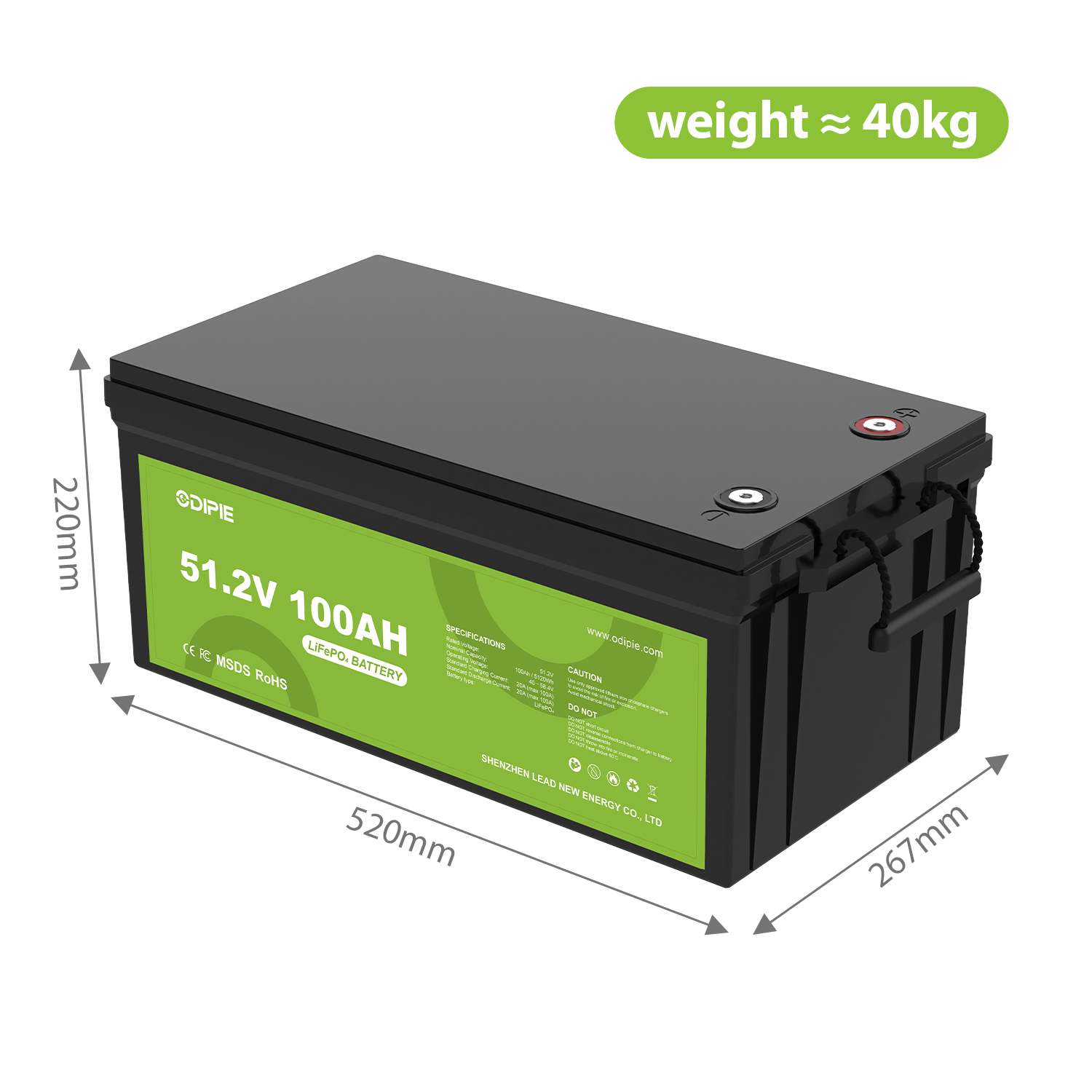

| Dimension(W*H*D) | 520*267*220mm |
| Operation temperature range | -20 ~ 60 ℃ |
Empowering Your Business：
Plug-and-Play Kit: Includes rack slides, bus bars, comm cables—cuts installer time by 50 %.
Charging Methods
Solar MPPT: 40-100 V PV window, 30 A max, auto-float 58.4 V; winter low-temp cut-off 0 °C.
Grid AC: 220-240 V, 10-50 A programmable; charges to 80 % in 1 h, silent fan <35 dB.
