Excerpt:
Odipie 51.2V 100Ah wall-mounted LiFePO4 battery delivers 5kWh, 100A continuous / 200A peak, 5000+ cycles @ 80% DOD in IP50 slim 55kg chassis. Built-in 100A BMS, -20–60°C range, <3% self-discharge, 1C fast charge—ideal for residential PV, telecom UPS, RV & marine off-grid.
Features
- 5.12kWh Power Block: 51.2V 100Ah LiFePO4 delivers 100A continuous / 200A 30s surge—drop-in upgrade for 48V lead-acid banks.
- 5000+ Cycles @ 80% DOD: Grade-A LFP cells.
- Wall-Mounted .
- Built-in 100A BMS:protects against over-charge, -discharge, -current, short, high/low temp.
- -20–60°C Working Range.
- <3% Self-Discharge per Month.
- 1C Fast Charge.
Target Applications
- Residential solar self-consumption—store daytime PV.
- Commercial & telecom UPS.
- Off-grid cabins, RV, marine—single unit powers 1kW load 5h, wall mount saves floor space.
- Peak-shaving & time-of-use arbitrage—charge on cheap tariff, discharge at peak rates <4y pay-back.
Note: This classic is intended for energy storage and deep cycle use only; it is not suitable for high-amperage cranking applications like starting engines or golf carts.
Parameters
| Model | 51.2V 100Ah Wall-Mount LFP |
|---|---|
| Nominal voltage | 51.2V |
| Nominal capacity | 100Ah |
| Nominal energy | 5.12kWh |
| Operation voltage range | 40V~58.4V |
| Charge voltage | 58.4V |
| Standard charging current | 20A |
| Max. continuous charging current | 100A |
| Standard discharging current | 20A |
| Max. continuous discharging current | 100A |
| Communication | RS485 /CAN /Dry contact / RS232 (Optional) |
| Waterproof Level | IP50 |
| Cycle life | 5000 cycles |
| Weight | ≈55kg |

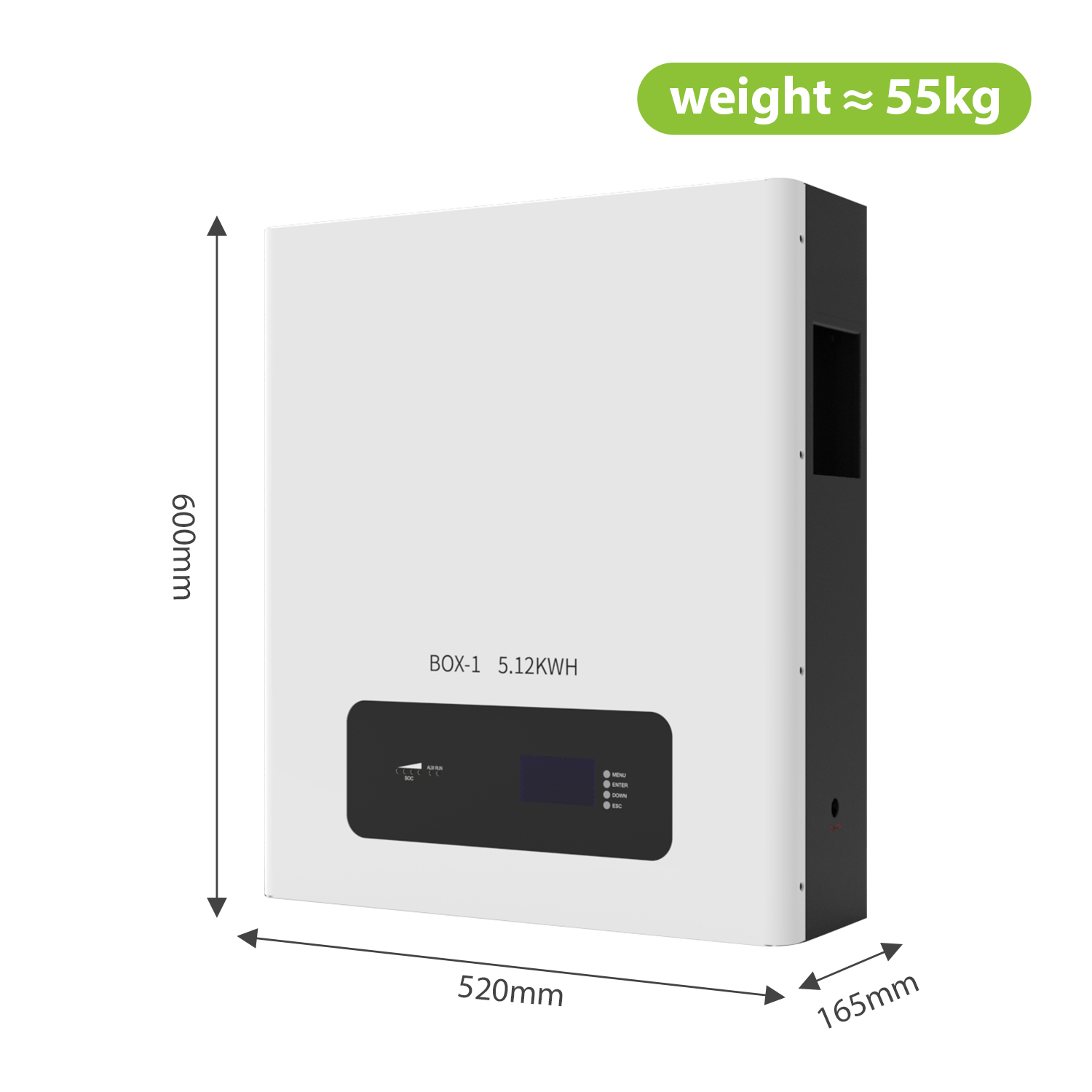

| Dimension(W*H*D) | 520*165*600mm |
| Operation temperature range | -20 ~ 60℃ |
Empowering Your Business
Stock available.Support—parallel plug-and-play without extra combiner box. White-label laser logo, neutral carton and online data-sheet package help EU/US PV wholesalers, telecom EPCs and RV retrofitters close deals faster.
