Excerpt:

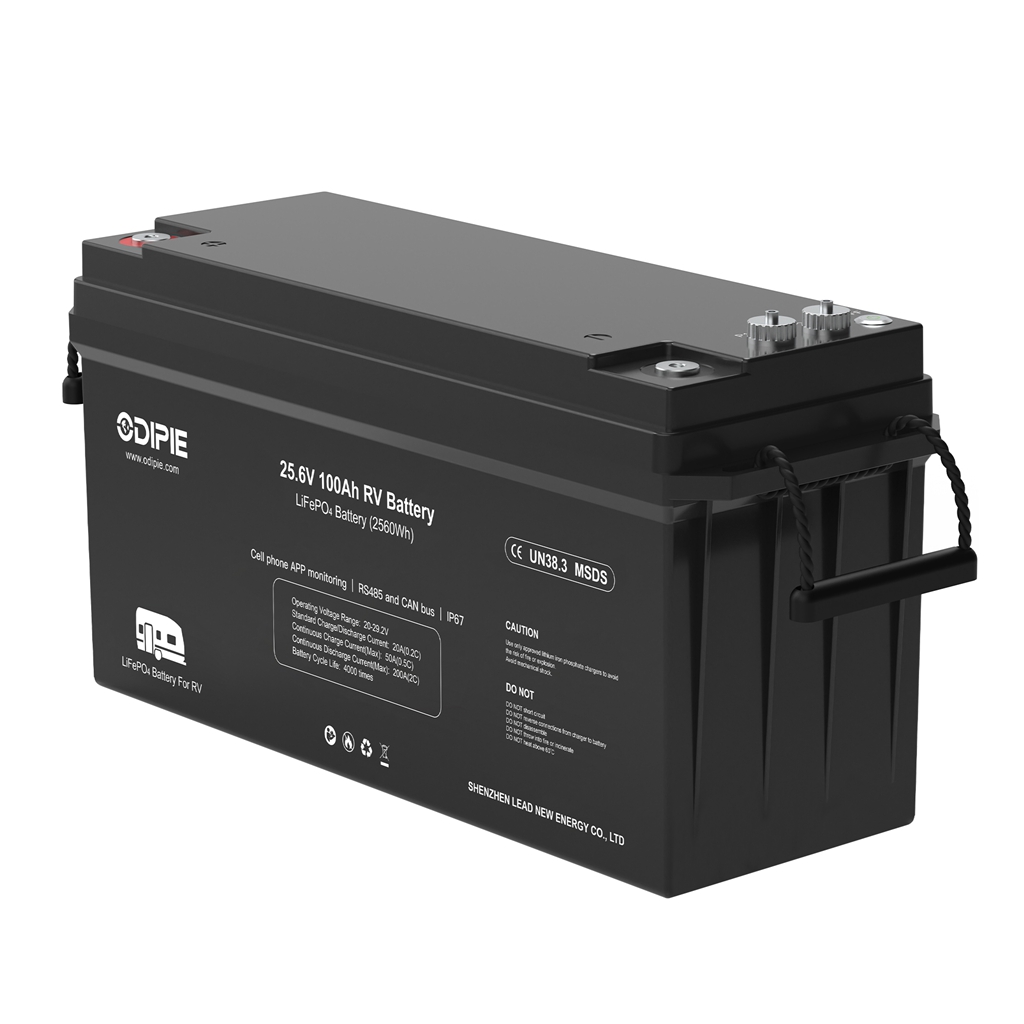

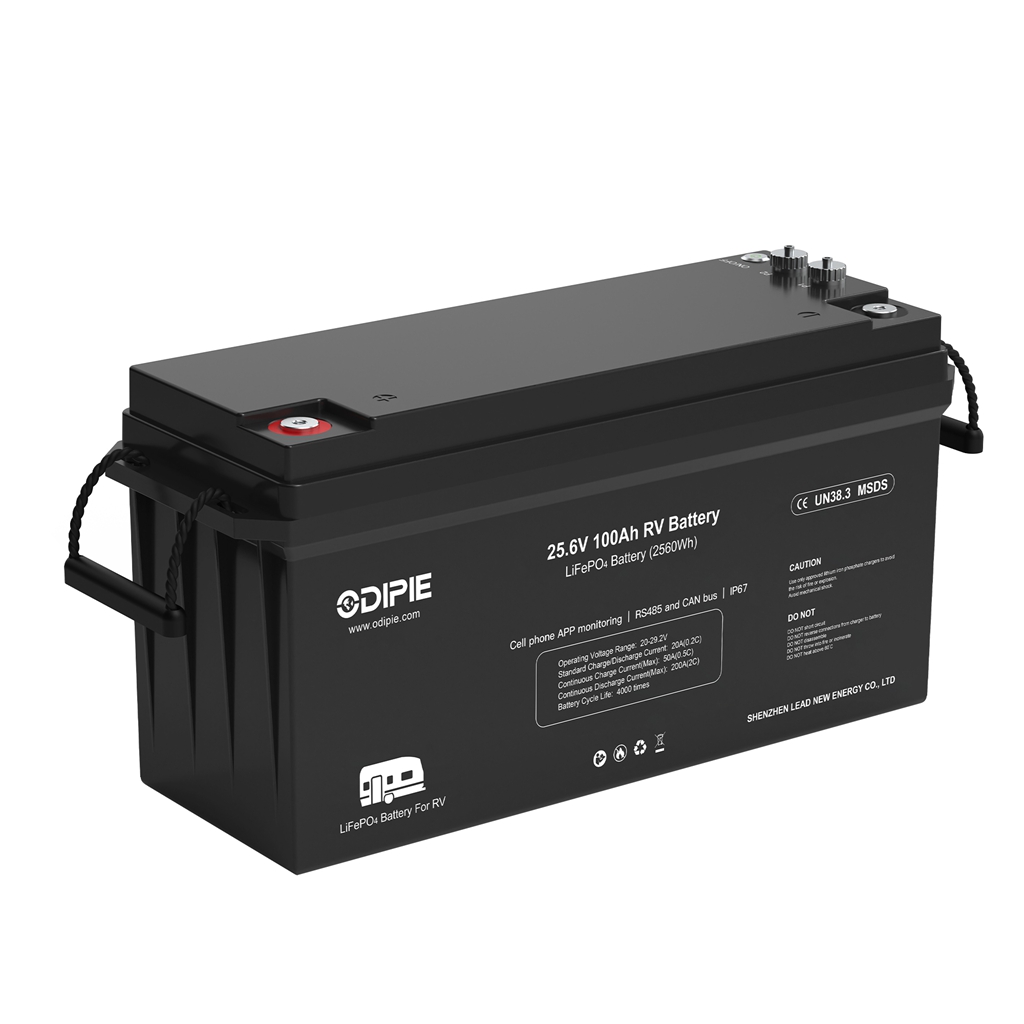

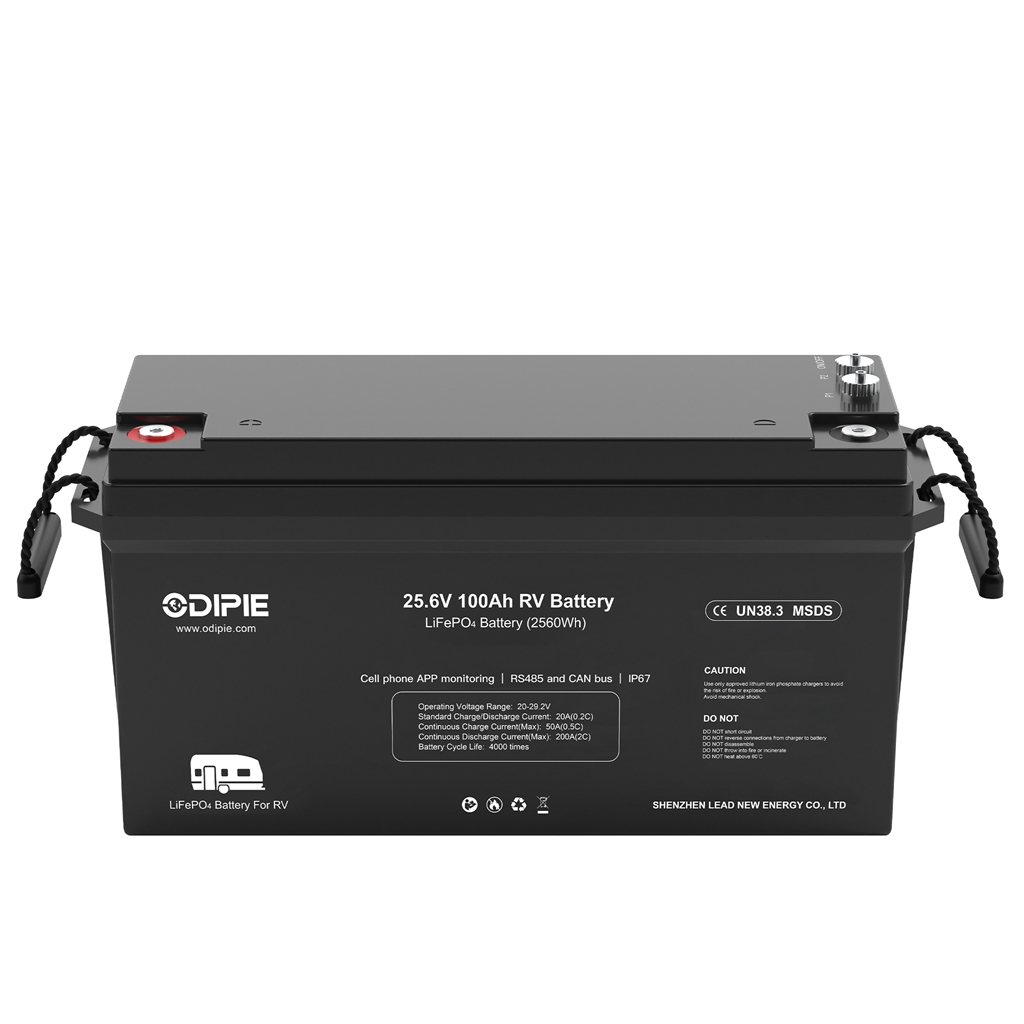

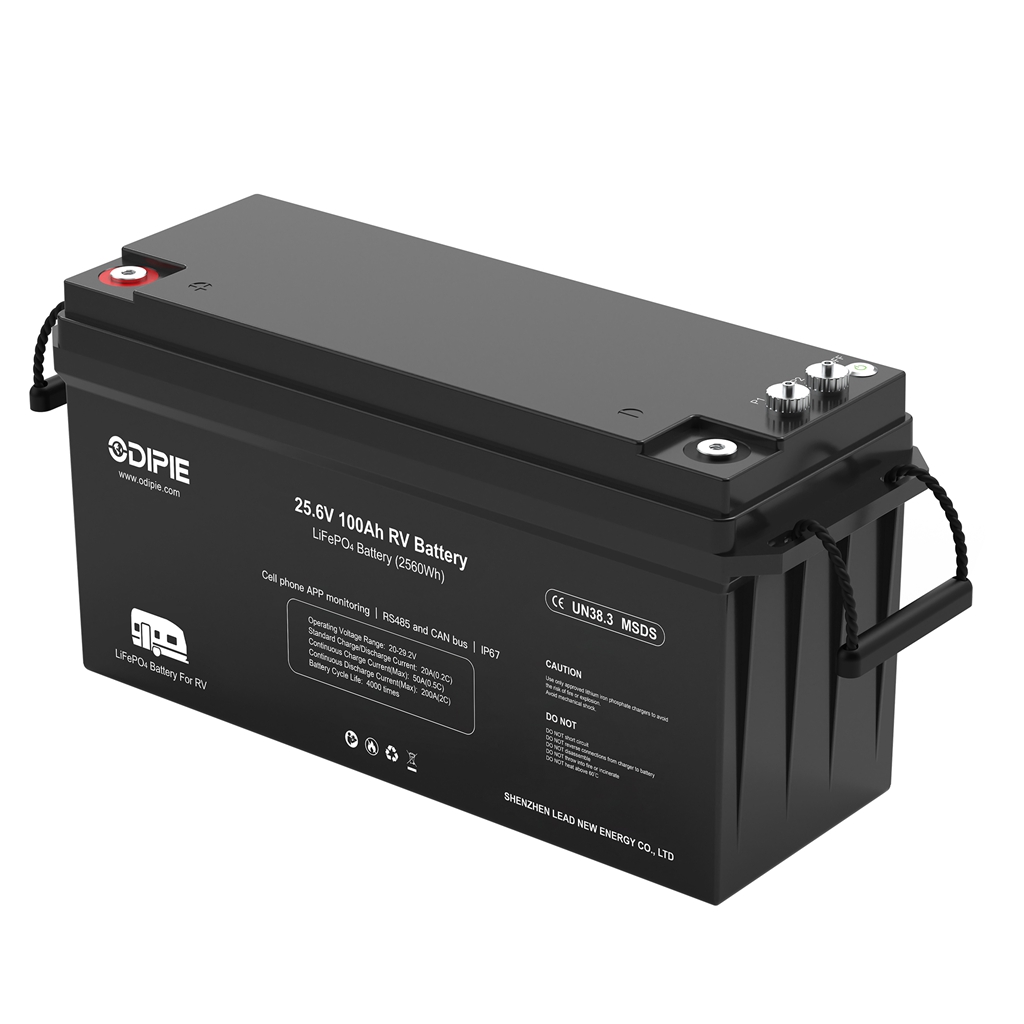

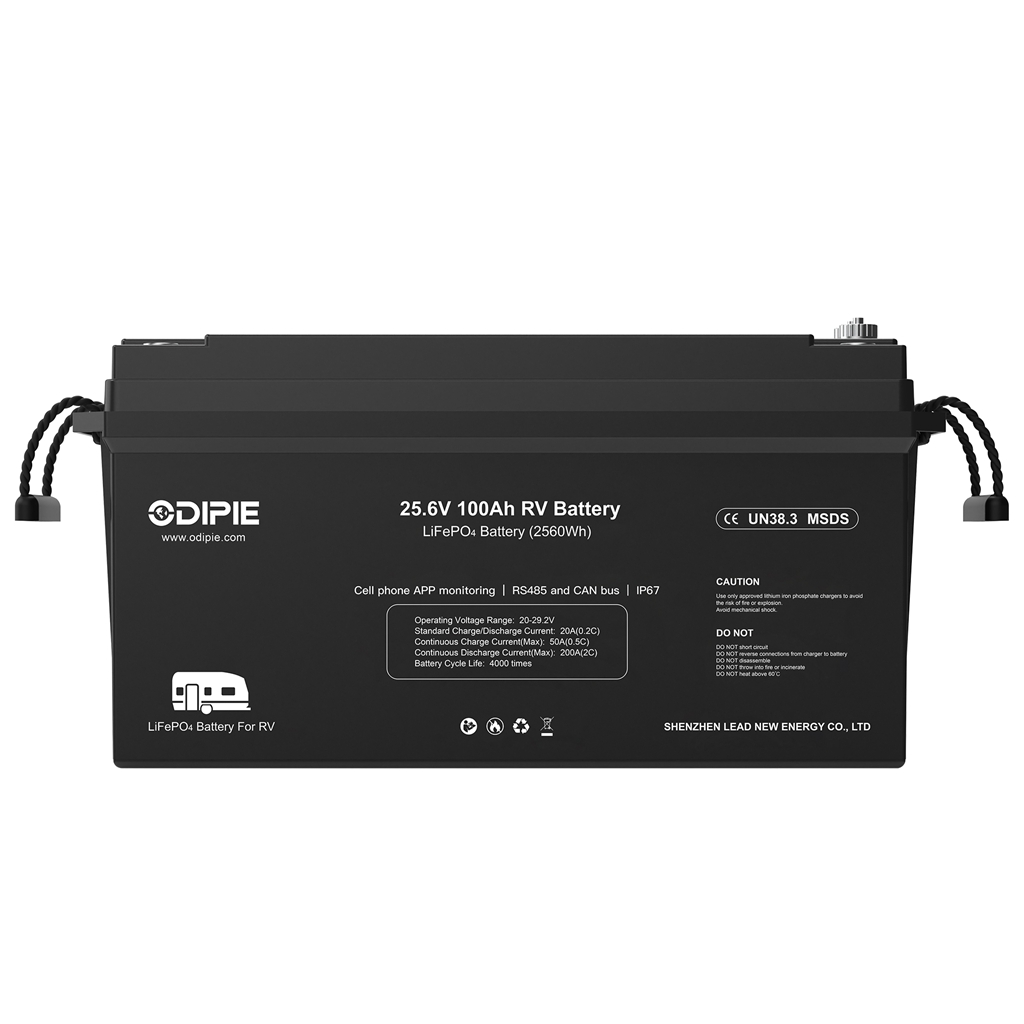

Odipie 25.6V 100Ah LiFePO4 battery packs 2560Wh into a 22kg, IP67-sealed block—smaller than twin 12V 100Ah in series. A grade cells deliver 5000 cycles at 80% DOD, 100A smart BMS and Bluetooth monitoring guard every charge, and –20°C to +60°C operation suits RV, marine or solar wholesalers. Shenzhen factory, UN38.3 & CE certified, global bulk stock.
Features
Energy Density: 25.6V 100Ah Odipie LiFePO4 battery delivers 2560 Wh from only 22kg—smaller footprint than two 12V 100Ah in series, cutting freight & install cost.
5000+Cycle Longevity: A grade prismatic cells retain ≥80% capacity after 5000 cycles at 80% DOD, giving 10year calendar life.
100A Smart BMS: Integrated protection against over-charge, over-discharge, over-current, short-circuit, high/low temperature.
All-Climate Reliability: Discharge –20°C to +60°C; 0°C charge cut-off with optional heating pad; IP67 ABS case resists salt-fog, dust and humidity for marine & RV duty.
Bluetooth Monitoring: Free iOS/Android app shows real-time voltage, SOC, temp and alarms—dealers can demo health instantly without extra tools.
Target Applications
- RV & camper off-grid packs – single 25.6V 100Ah unit replaces two 12V 100Ah in series, saving locker space and weight.
- Note: This classic is intended for energy storage and deep cycle use only; it is not suitable for high-amperage cranking applications like starting engines or golf carts.
Parameters
| Model | 25.6V 100Ah RV LFP |
|---|---|
| Nominal voltage | 25.6V |
| Nominal capacity | 100Ah |
| Nominal energy | 2.56kWh |
| Operation voltage range | 20V~29.2V |
| Charge voltage | 29.2V |
| Standard charging current | 20A |
| Max. continuous charging current | 100A |
| Standard discharging current | 20A |
| Max. continuous discharging current | 100A |
| Communication | RS485 /CANbus (Parallel Communication) / Dry contact |
| Waterproof Level | IP67 |
| Cycle life | 5000 cycles (0.2C charge and discharge) |
| Weight | ≈22kg |
| Dimension(W*H*D) | 485*168*240mm |
| Operation temperature range | -20 ~ 60℃ |
