Excerpt:

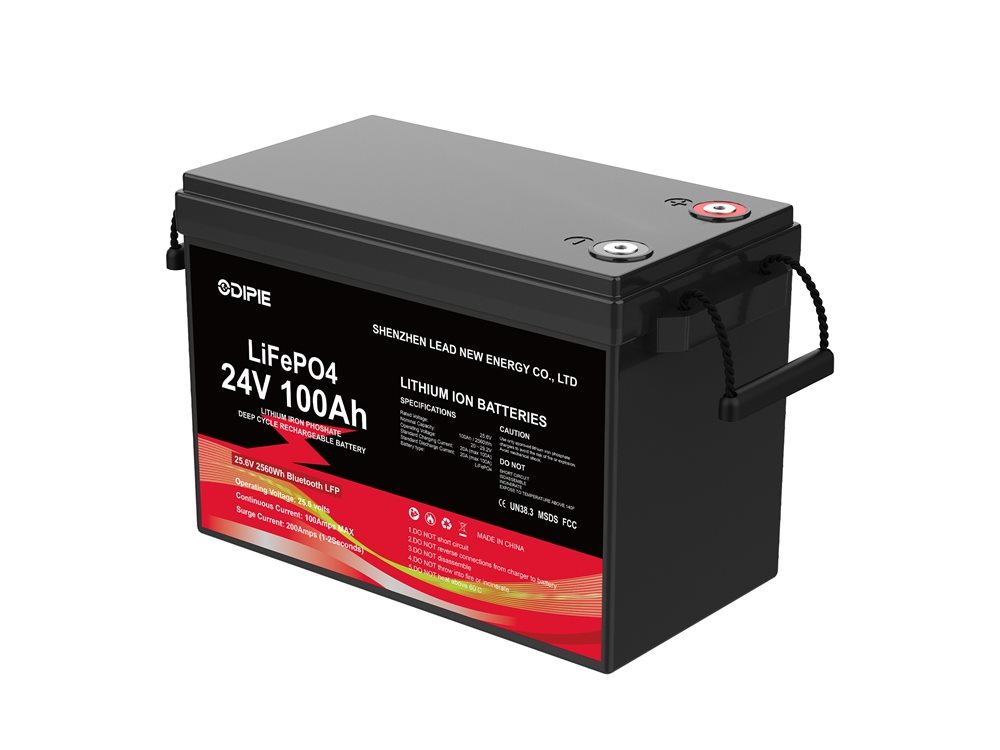

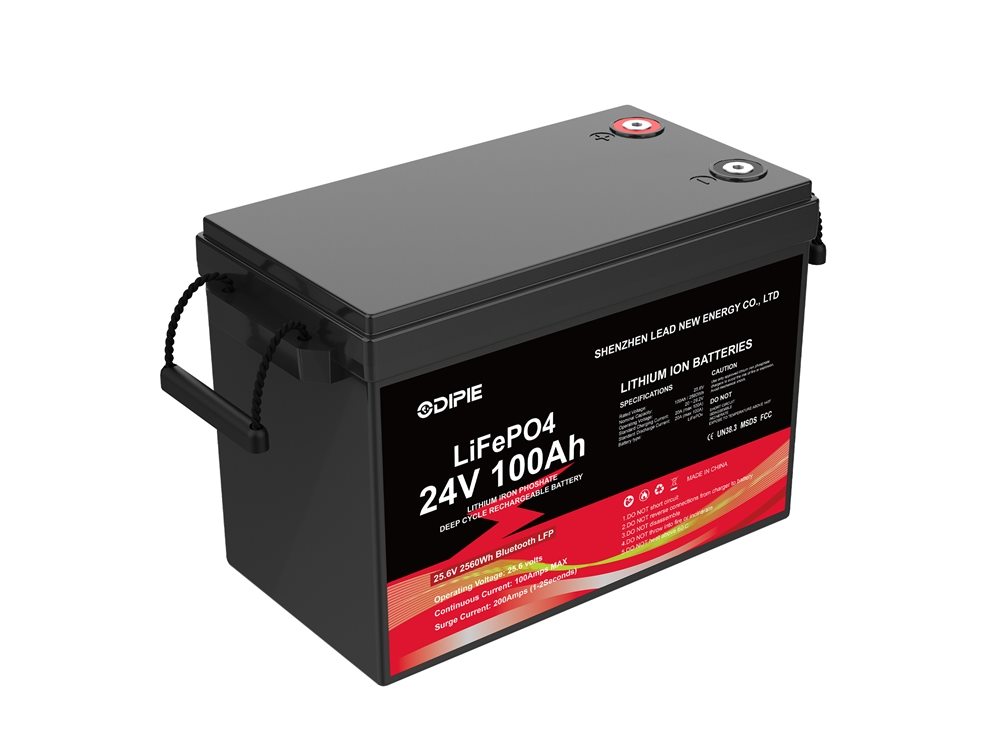

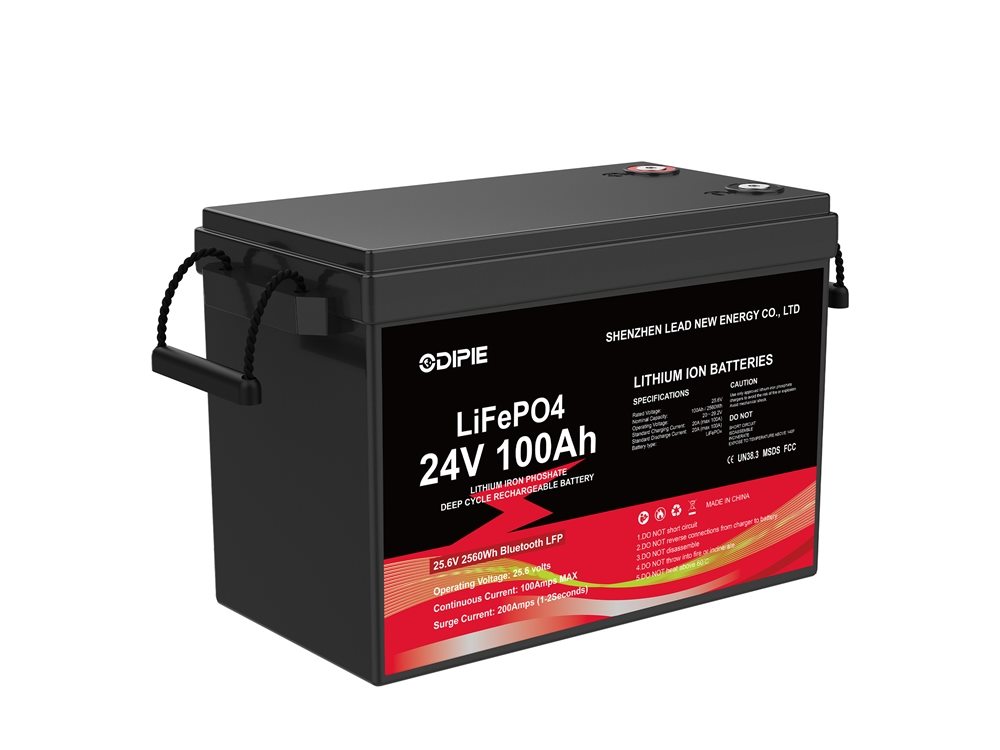

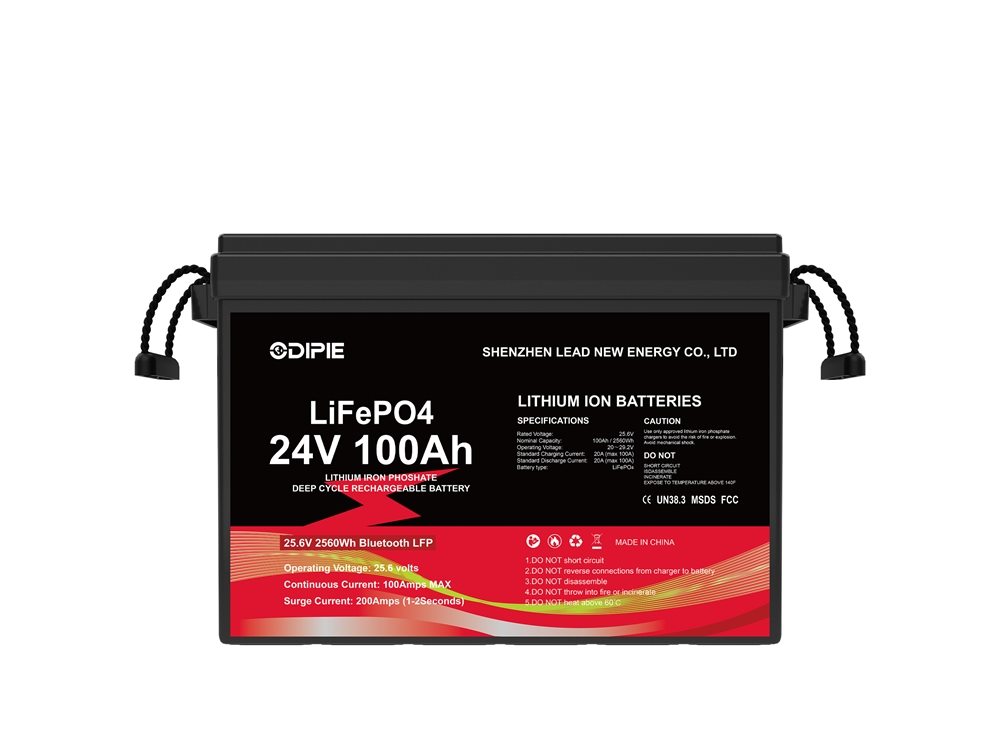

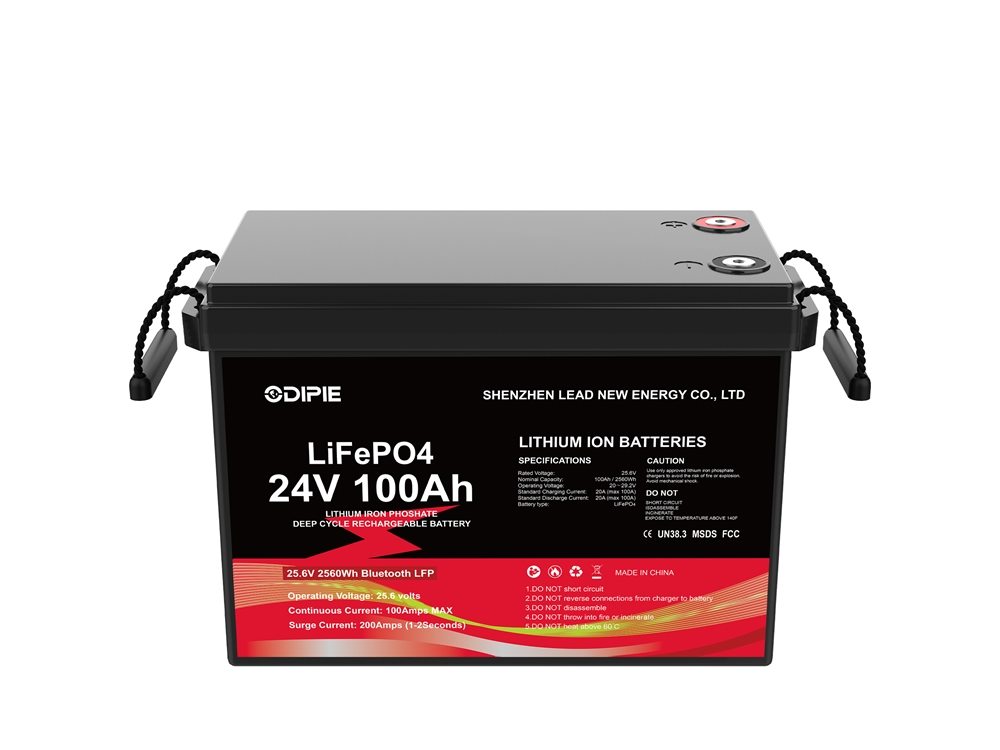

Odipie 25.6V 100Ah Safe and Stable LiFePO4 battery offers 2.56kWh, 5000+ cycles, IP65 case, parallel to 8 for 24V solar, telecom. Grade A cells, 100A BMS .
Features
BMS High-Efficiency Protection: Guards against over-charge, over-discharge, over-current, short-circuit, cell imbalance and high-temp cut-off .
Grade A LiFePO₄ Cell: 25.6V 100Ah delivers 2.56kWh with >5000cycles @80%DoD—fourfold life of AGM.
Ultra-Light Pack: 22kg
Parallel Plug-in: Support parallel connection.
Wide-Temp Resilience: Discharge -20°C ~ +60°C, charge 0°C ~ +55°C; self-discharge <3% per month for seasonal storage.
Dealer-Friendly Certifications: UN38.3, CE, packaging ready.
Target Applications
24V off-grid solar kits, street lights, CCTV trailers—drop-in lead-acid replacement.
Golf-cart fleet, hunting buggy, e-trolley—steady 24V power without acid spills.
Telecom cabinet, IoT gateway, remote instrumentation .
Small UPS, router, medical fridge back-up .
Note: This classic is intended for energy storage and deep cycle use only; it is not suitable for high-amperage cranking applications like starting engines or golf carts.
| Model | 25.6V 100Ah Classic LFP |
|---|---|
| Nominal voltage | 25.6V |
| Nominal capacity | 100Ah |
| Nominal energy | 2.56kWh |
| Operation voltage range | 20~ 29.2V |
| Charge voltage | 29.2V |
| Standard charging current | 20A |
| Max. continuous charging current | 100A |
| Standard discharging current | 20A |
| Max. continuous discharging current | 100A |
| Communication | NO, Optional |
| Waterproof Level | IP65 |
| Cycle life | 5000cycles |
| Weight | ≈22kg |
| Dimension(W*H*D) | 384*194*255mm |
| Operation temperature range | -20 ~ 60℃ |
