Features
- Ultra-Deep Cycle LiFePO4 Chemistry: 4000+ cycles @ 80% DoD.
- Built-In Smart BMS: shields every cell from over-charge, over-discharge, over-current, short-circuit & thermal runaway .
- 1C Continuous Charge/Discharge: 200A .
- Feather-Light Form Factor: 22kg—lighter than equivalent AGM—cuts freight cost, mountable in any orientation.
- <3% Monthly Self-Discharge: stock-friendly for distributors.
- -20°C to +60°C Operating Range.
- Green
Target Applications
- Solar & wind storage banks, 24h off-grid cabins, telecom towers.
- Marine house & trolling power, RV & campervan leisure circuits.
- Industrial UPS, medical carts, lighting towers, remote instrumentation.
- Portable power packs, e-boat kits, security trailers.
Note: This classic is intended for energy storage and deep-cycle use only; it is not suitable for high-amperage cranking applications like starting engines or golf carts.
Parameters
| Model | 12.8V 200Ah Marine LFP Battery |
|---|---|
| Nominal voltage | 12.8V |
| Nominal capacity | 200Ah |
| Nominal energy | 2.56kWh |
| Operation voltage range | 10V~14.6V |
| Charge voltage | 14.6V |
| Standard charging current | 40A |
| Max. continuous charging current | 200A |
| Standard discharging current | 40A |
| Max. continuous discharging current | 200A |
| Communication | RS485 / CANbus (Parallel Communication) |
| Waterproof Level | IP67 |
| Cycle life | ≥4000 cycles |
| Weight | ≈22kg |

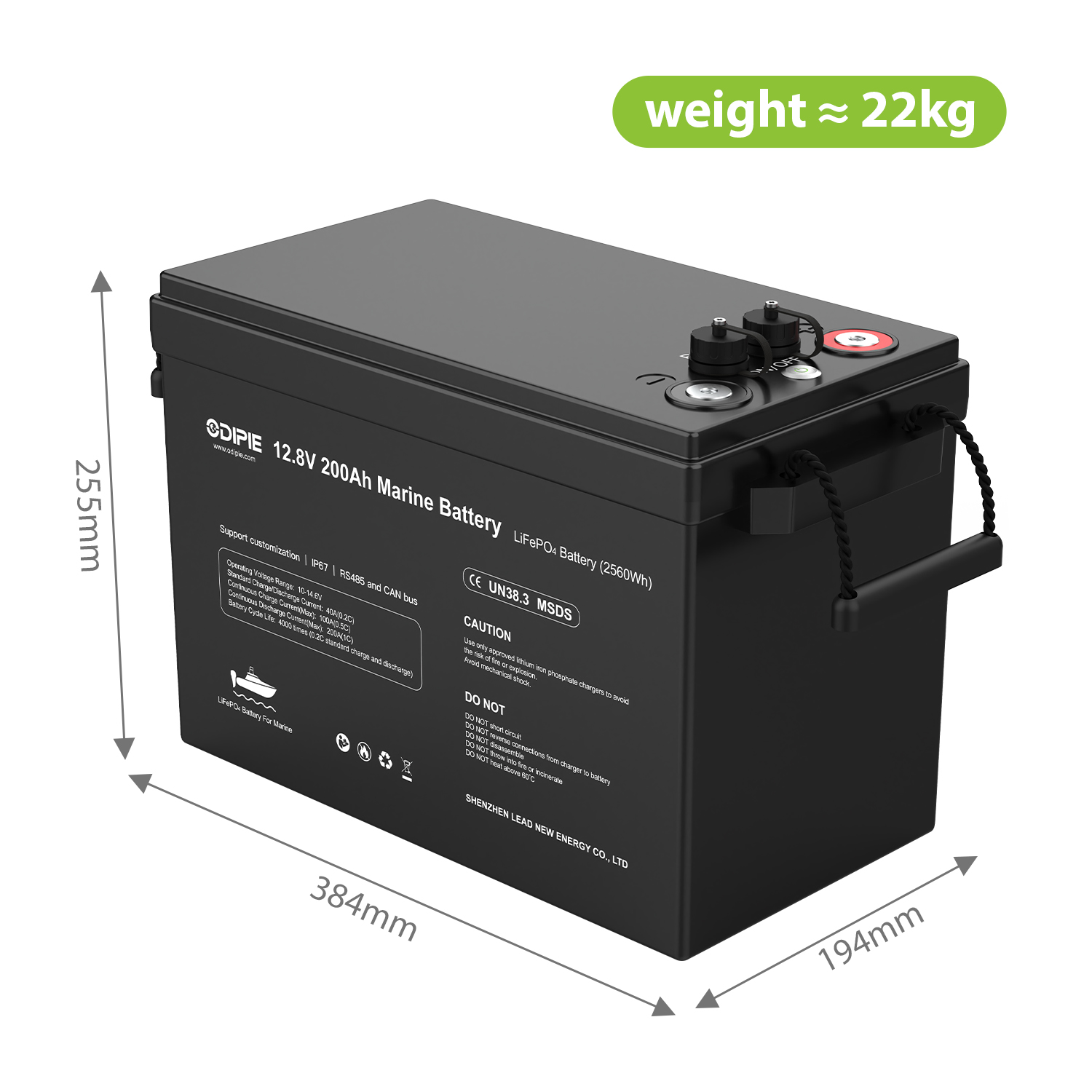

| Dimension(W*H*D) | 384*194*255mm |
| Operation temperature range | -20 ~ 60℃ |
Charging Methods
- Smart AC Chargers: select “LiFePO4” mode,Voltage=14.6V.
- Generator/Inverter-Charger.
Empowering Your Business
Customized logo. No MOQ Technical support.
