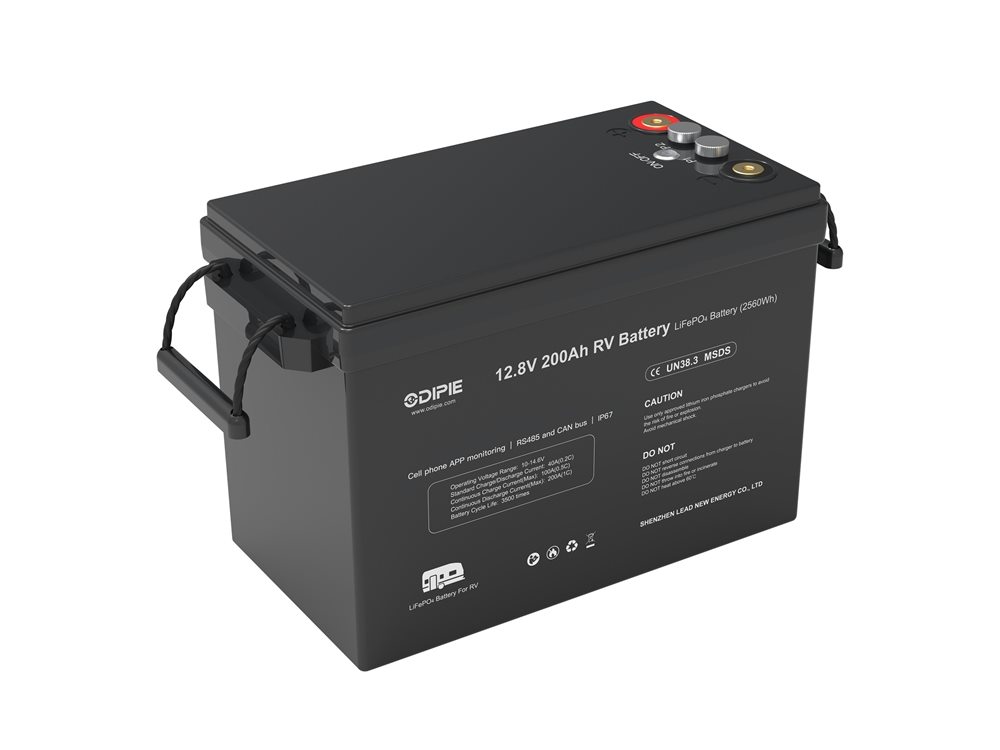

Odipie 12V 200Ah LiFePO4 battery: 4,000 cycles, 200A BMS, 4P4S 40.96kWh scalable, 60% lighter, IP65, wholesale for solar/RV/deep-cycle.
Features
- 4,000-cycle LiFePO4 core: Delivers 10-year service life at 100 % DOD, cutting replacement cost for distributors.
- 200 A integrated BMS: Guards over-voltage, over-current, low-temp & short-circuit; auto-balances cells for max capacity.
- 1C rapid-charge ready: Full charge in 1–3 h with 14.6 V 50 A charger, halves downtime vs lead-acid.
- 60 % lighter & 30 % smaller: 41 lb module drops freight cost and installer labor.
- -4 °F to 140 °F operating: IP65 housing + low-temp cut-off, safe for winter & marine shelves.
Target Applications
Solar & off-grid residential stacks
RV, camper van, house banks
UPS, telecom, outdoor cabinets
Low-speed traction: trolling motors, e-boats, scissor lifts
Note: This classic is intended for energy storage and deep cycle use only; it is not suitable for high-amperage cranking applications like starting engines or golf carts.
Parameters

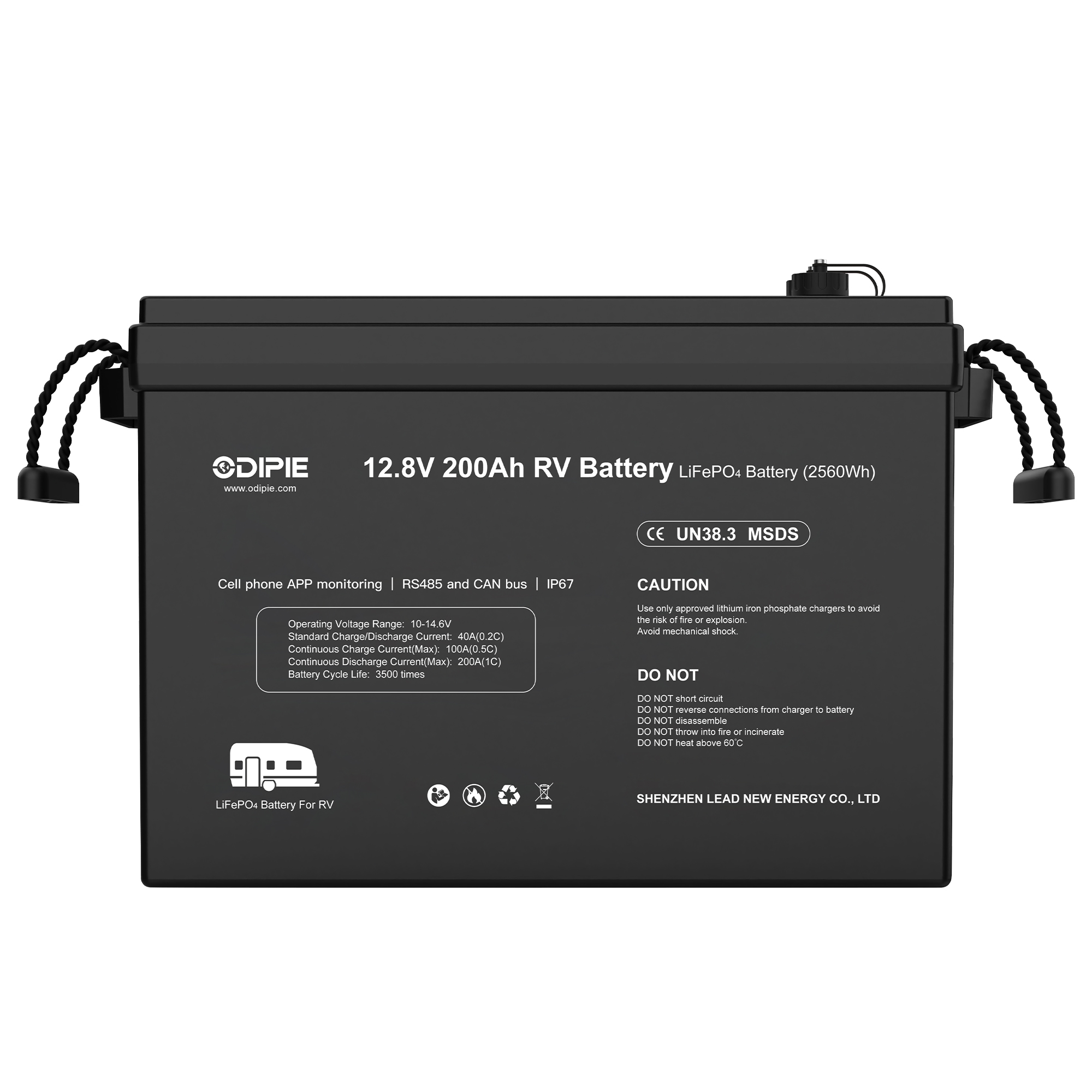

| Model | 12V 200Ah RV LFP |
|---|---|
| Nominal voltage | 12.8V |
| Nominal capacity | 200Ah |
| Nominal energy | 2.56kWh |
| Operation voltage range | 10V~14.6V |
| Charge voltage | 14.6V |
| Standard charging current | 40A |
| Max. continuous charging current | 200A |
| Standard discharging current | 40A |
| Max. continuous discharging current | 200A |
| Communication | RS485 / CAN bus (Parallel Communication) |
| IP ratings | IP67 |
| Cycle life | ≥4000 cycles |

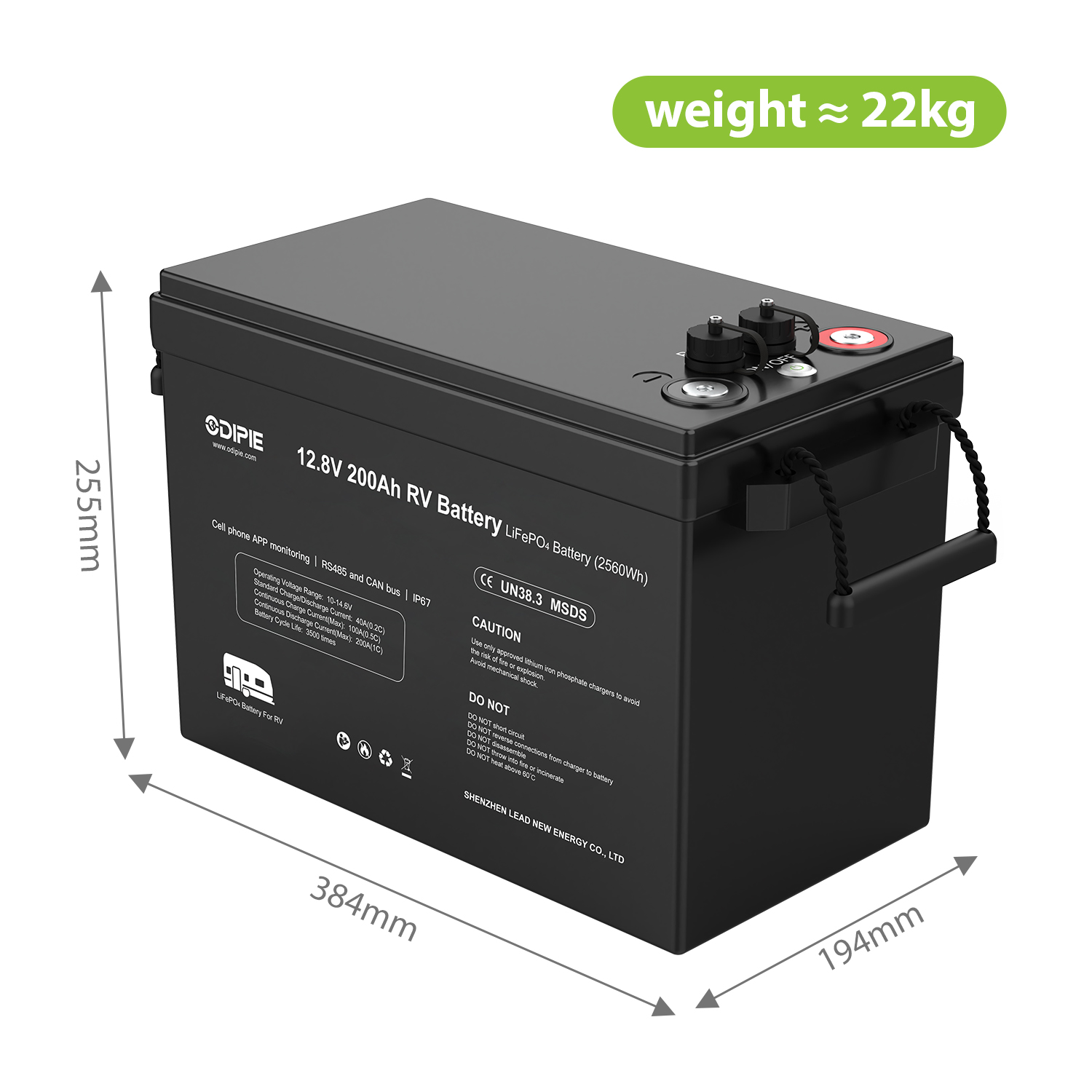

| Weight | ≈22kg |
| Dimension(W*H*D) | 384*194*255mm |
| Operation temperature range | -20 ~ 60 ℃ |
