Odipie 12V 200Ah LiFePO4 deep-cycle battery delivers 5000 cycles, 2.56kWh usable energy . Ideal for solar storage, RV, marine and telecom—lighter, longer life than AGM. Charges via solar, alternator or mains; parallel/series scalable. Designed for energy storage only, not engine starting.

Features

12V 200Ah LiFePO4 Cell: Ultra-stable lithium iron phosphate chemistry delivers 5000 cycles at 80% DoD.

Featherweight Design: 22kg—lighter than equivalent lead-acid—cuts freight cost and simplifies handling.

Scalable Power: Parallel & series (up to 4S) connections expand banks for RV, marine and ESS projects.

Certified Safe: IP65 case, for global shipping and insurance acceptance.

Target Applications

  1. Leisure & Mobile Living: Caravans, motorhomes, campervans and boats for house loads, lighting, refrigeration and inverters.
  2. Renewable Energy Storage: Solar off-grid kits.

Note: This classic is intended for energy storage and deep cycle use only; it is not suitable for high-amperage cranking applications like starting engines or golf carts.

Parameters

Model12V 200Ah Classic LFP
Nominal voltage12.8V
Nominal capacity200Ah
Nominal energy2.56kWh
Operation voltage range10V~14.6V
Charge voltage14.6V
Standard charging current40A
Max. continuous charging current200A
Standard discharging current40A
Max. continuous discharging current200A
CommunicationNO, Optional
Waterproof LevelIP65
Cycle life≥5000 cycles (0.2C charge and discharge)
Weight≈22kg

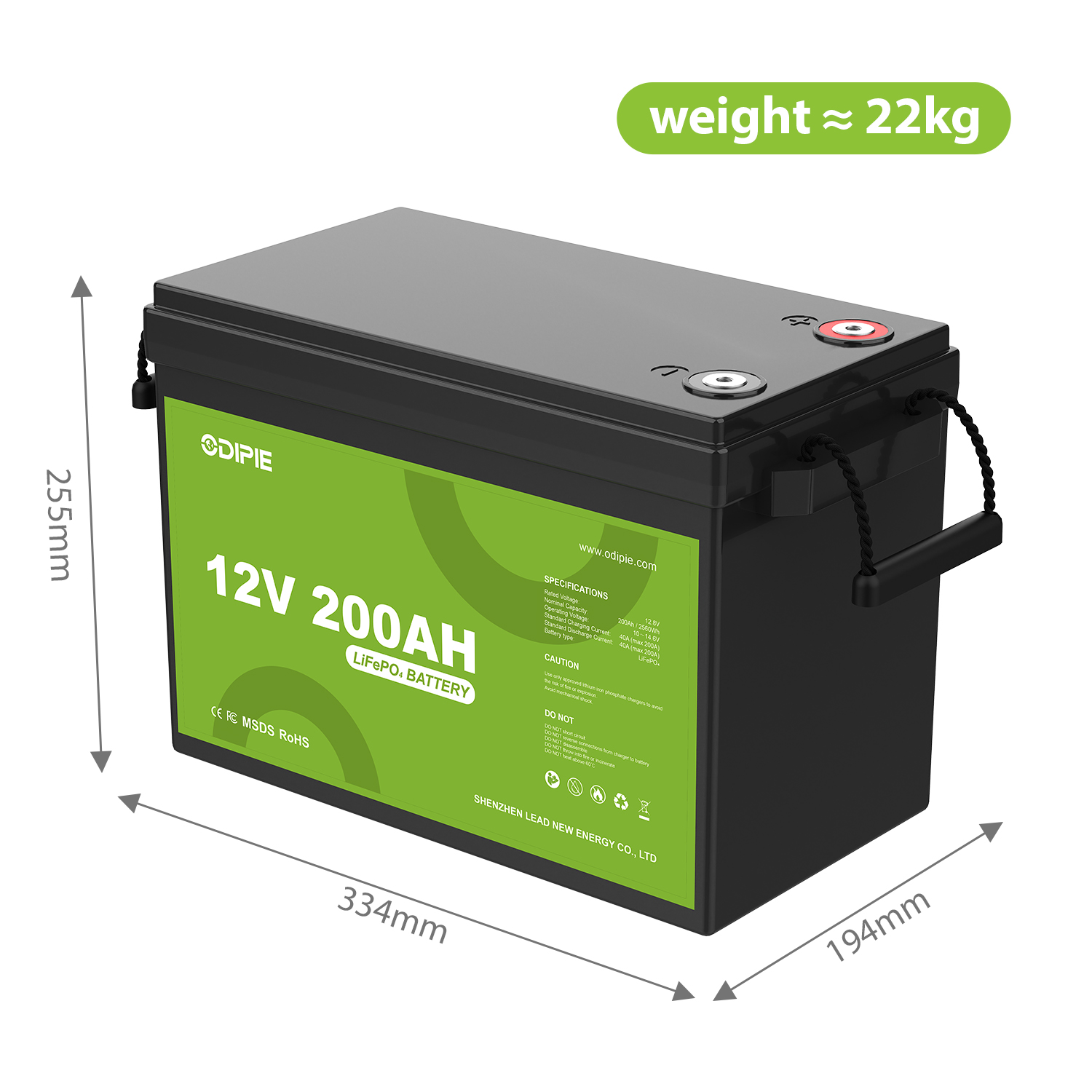

Dimension(W*H*D)384*194*255mm
Operation temperature range-20~ 60℃
