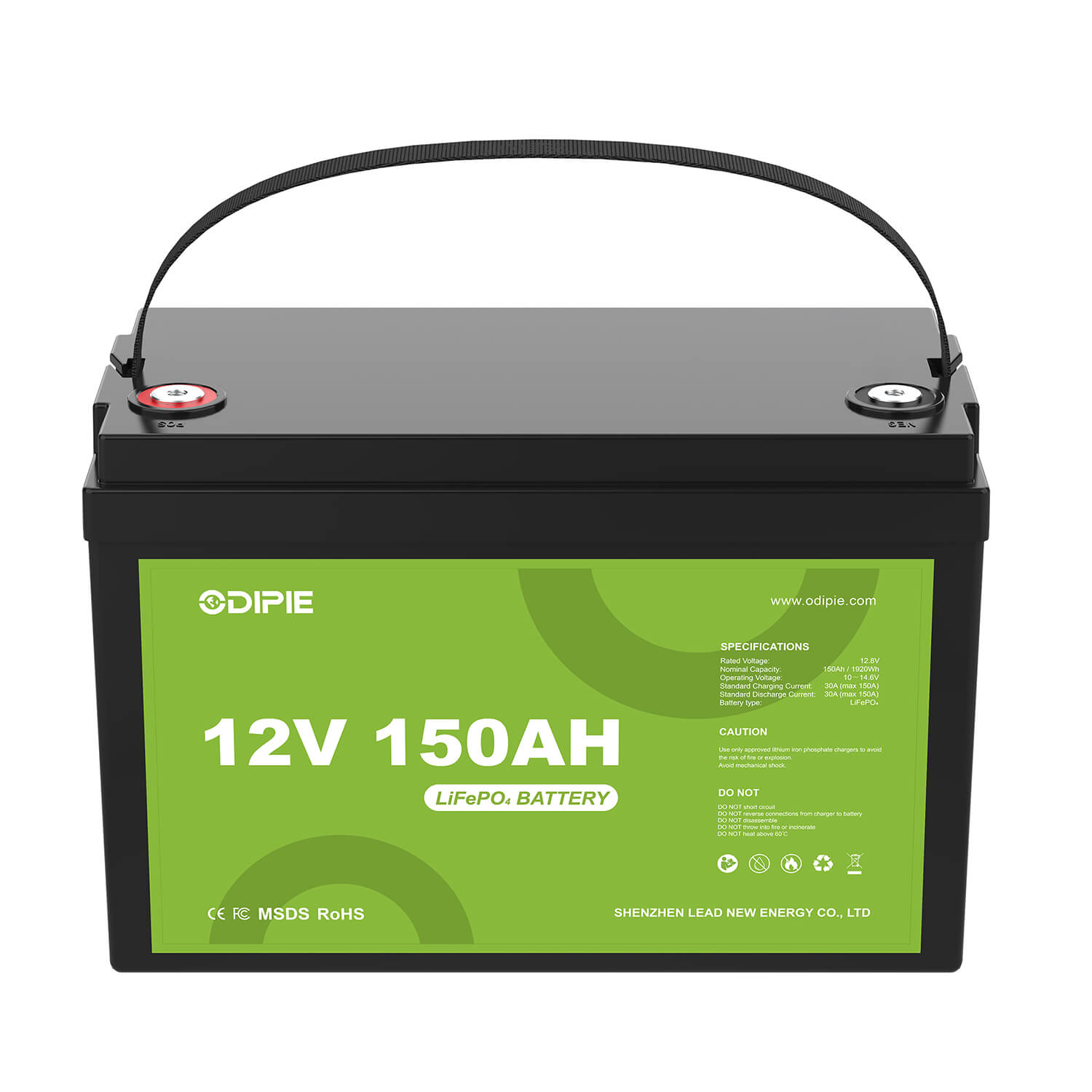

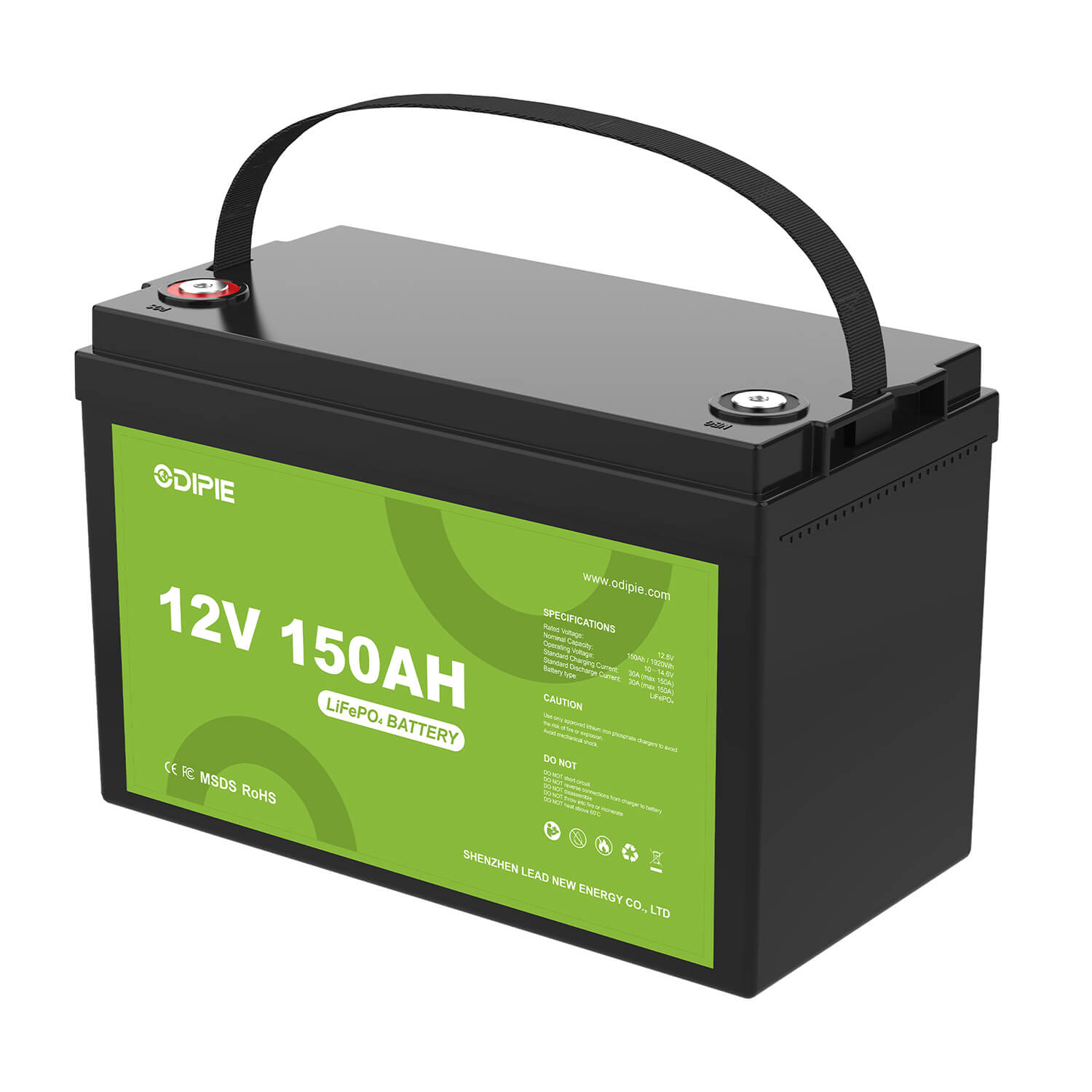

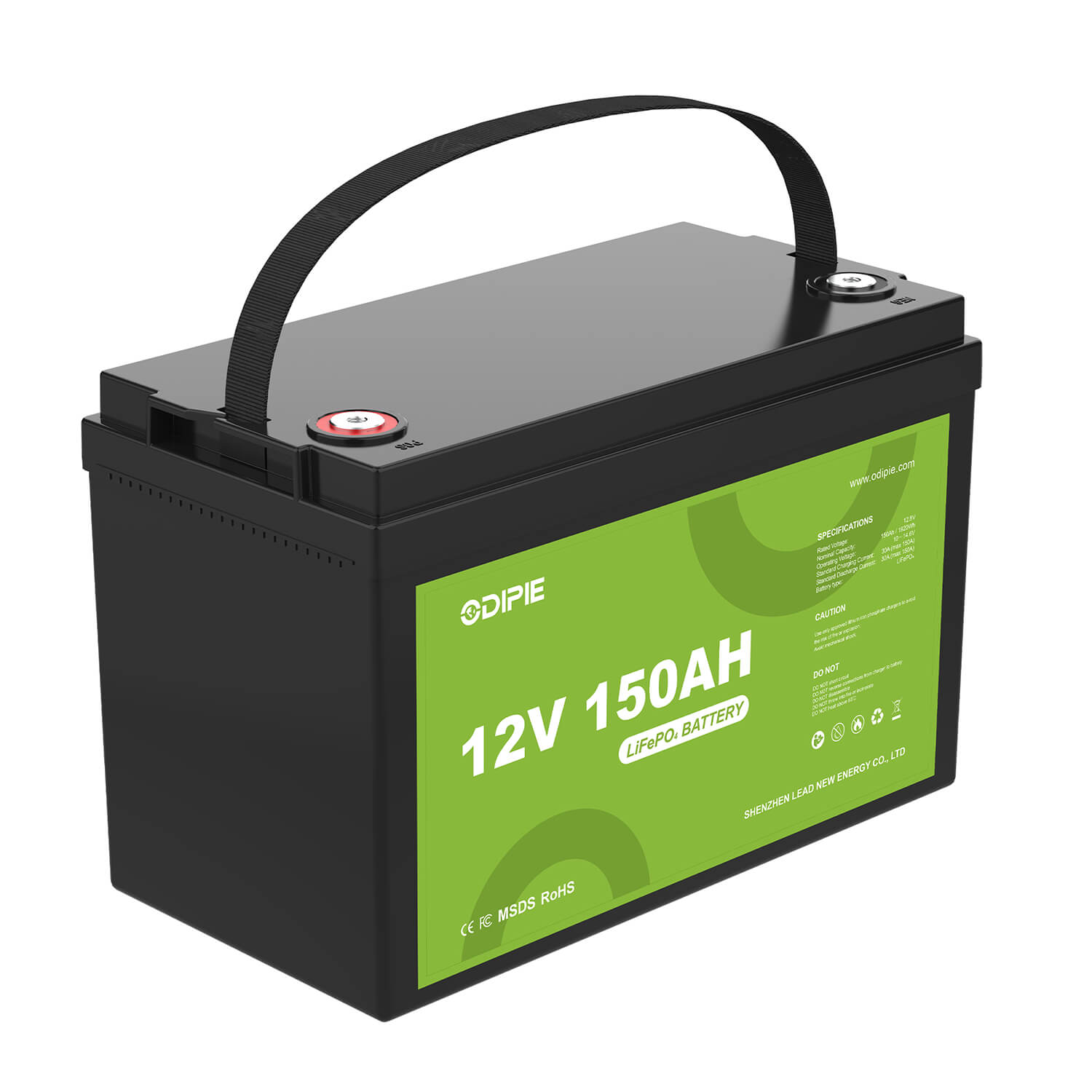

Odipie 12V 150Ah Deep-Cycle LiFePO4 battery gives 1.92 kWh, 5,000 cycles, 17 kg drop-in swap for AGM. Built-in 200 A BMS, -20 °C heater, 14.6 V fast/AGM charge. Perfect for solar, RV, marine, floor machines.
Features
12V 150AH Deep Cycle Standard lithium battery: Delivers 1.92 kWh usable energy in a DIN H8 footprint—drop-in replacement for AGM/gel.
LiFePO4 chemistry: 5,000+ cycles @ 80 % DOD, 10× cycle life of lead-acid, <3 % monthly self-discharge.
Built-in 200 A BMS: Over-charge, over-discharge, short-circuit, reverse-polarity, temp protection; auto cell-balancing.
Low-temp heater: Draws power from charger to warm cells ≥0 °C, enabling safe charging down to –20 °C without external blankets.
Ultra-light: 17 kg, 70 % weight saving vs. 45 kg lead-acid; same SAE automotive posts & base rail for existing trays.
Target Applications
- Off-grid solar & wind energy storage for cabins, telecom towers, remote CCTV.
- Marine & RV house power—runs fridges, inverters, lights, water-makers silently.
- Floor scrubbers, aerial lifts, e-trolleys—deep discharge daily without acid spills.
- Portable power boxes, van-life & camper conversions—fits under seat or drawer.
Note: This classic is intended for energy storage and deep cycle use only; it is not suitable for high-amperage cranking applications like starting engines or golf carts.
Parameters
| Model | 12.8V 150Ah Classic LFP |
|---|---|
| Nominal voltage | 12.8V |
| Nominal capacity | 150Ah |
| Nominal energy | 1.92kWh |
| Operation voltage range | 10V~14.6V |
| Charge voltage | 14.6V |
| Standard charging current | 30A |
| Max. continuous charging current | 100A |
| Standard discharging current | 30A |
| Max. continuous discharging current | 100A |
| Communication | NO, Optional |
| IP ratings | IP65 |
| Cycle life | ≥5000 cycles (0.2C charge and discharge) |
| Weight | ≈17kg |
| Dimension(W*H*D) | 330*173*215mm |
| Operation temperature range | -20 ~ 60 ℃ |
Charging Methods
- 14.2–14.6 V CC/CV lithium profile: Full charge in <3 h with 50 A charger; AGM setting acceptable (14.4 V) if temp sensor present.
- Storage mode: <13.6 V float or disconnect to keep ≥95 % SOC after 6 months idle—ideal for dealer inventory.
