Odipie 25.6V 200Ah LiFePO4 battery delivers 5.12kWh, 5000+ deep cycles and 200A continuous discharge in lighter, smaller footprint than AGM. Built-in 200 A BMS, IP67 case, -20–60 °C operating range. Ideal for solar off-grid, e-mobility—storage & deep-cycle only, no engine cranking. Quick MPPT or inverter charging.
Features
LiFePo4 battery: 25.6V 200Ah LiFePO4 pack delivers 5.12kWh on 1C continuous 200A discharge—double usable energy in the same footprint.
5000+ Cycles: Grade A LFP cells 5000 cycles @ 80% DOD.
Space & Weight Saving.
Built-in 200A BMS: Protects against over-charge, -discharge, -current, short, high temp.
Wide Temp Window: Charge 0–50°C, discharge –20–60°C.
IP67 case.
<3% Monthly Self-Discharge.
Target Applications
- Solar off-grid & hybrid kits—store daylight, run 5kW inverters overnight.
- Low-speed transport: e-forklifts, golf utility, marine house banks.
Note: This classic is intended for energy storage and deep cycle use only; it is not suitable for high-amperage cranking applications like starting engines or golf carts.
Parameters
| Model | 25.6V 200Ah Marine LFP |
|---|---|
| Nominal voltage | 25.6V |
| Nominal capacity | 200Ah |
| Nominal energy | 5.12kWh |
| Operation voltage range | 20V~29.2V |
| Charge voltage | 29.2V |
| Standard charging current | 40A |
| Max. continuous charging current | 200A |
| Standard discharging current | 40A |
| Max. continuous discharging current | 200A |
| Communication | RRS485 /CANbus (Parallel Communication) / Dry contact |
| Waterproof Level | IP67 |
| Cycle life | ≥5000 cycles |
| Weight | ≈42kg |

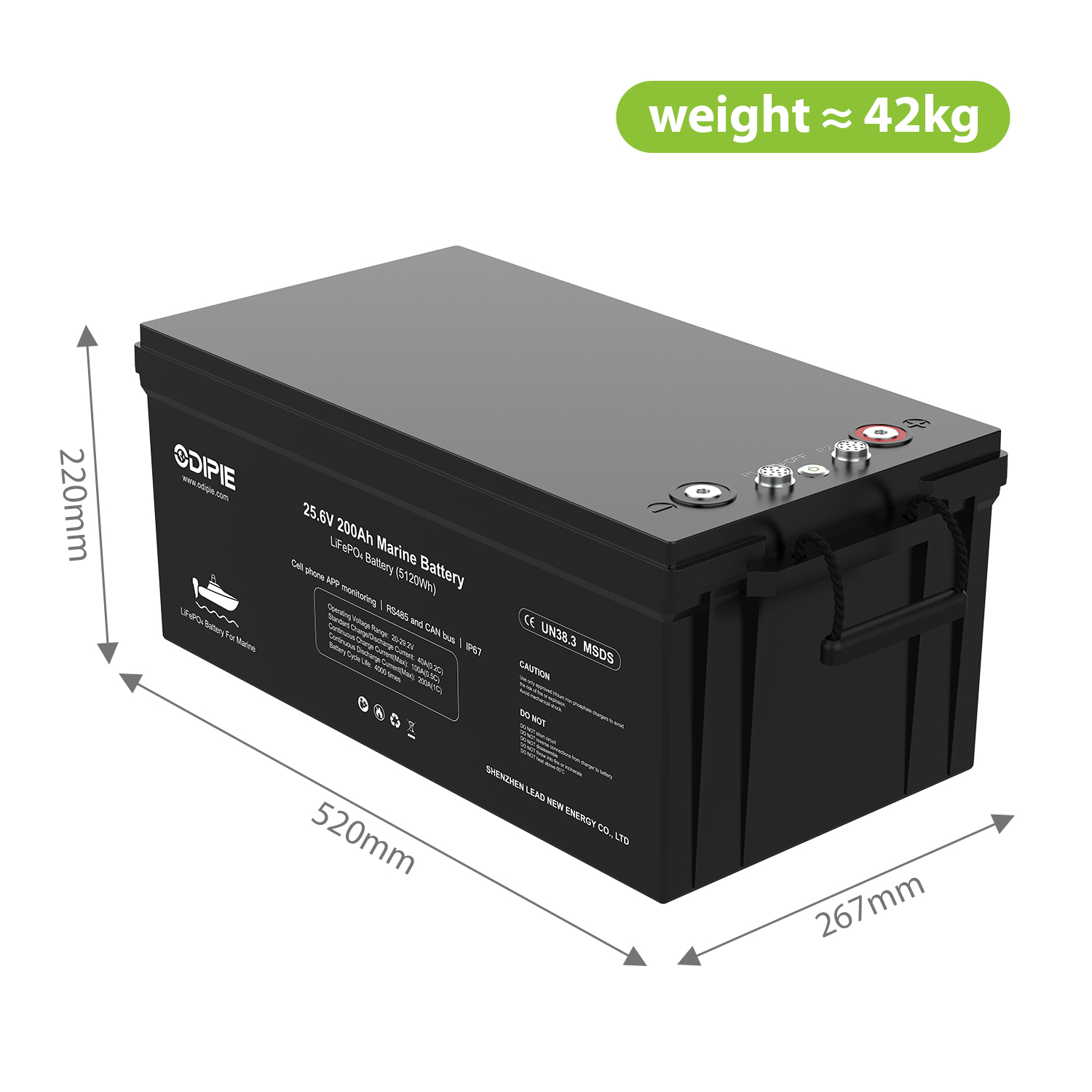

| Dimension(W*H*D) | 520*267*220mm |
| Operation temperature range | -20 ~ 60℃ |
